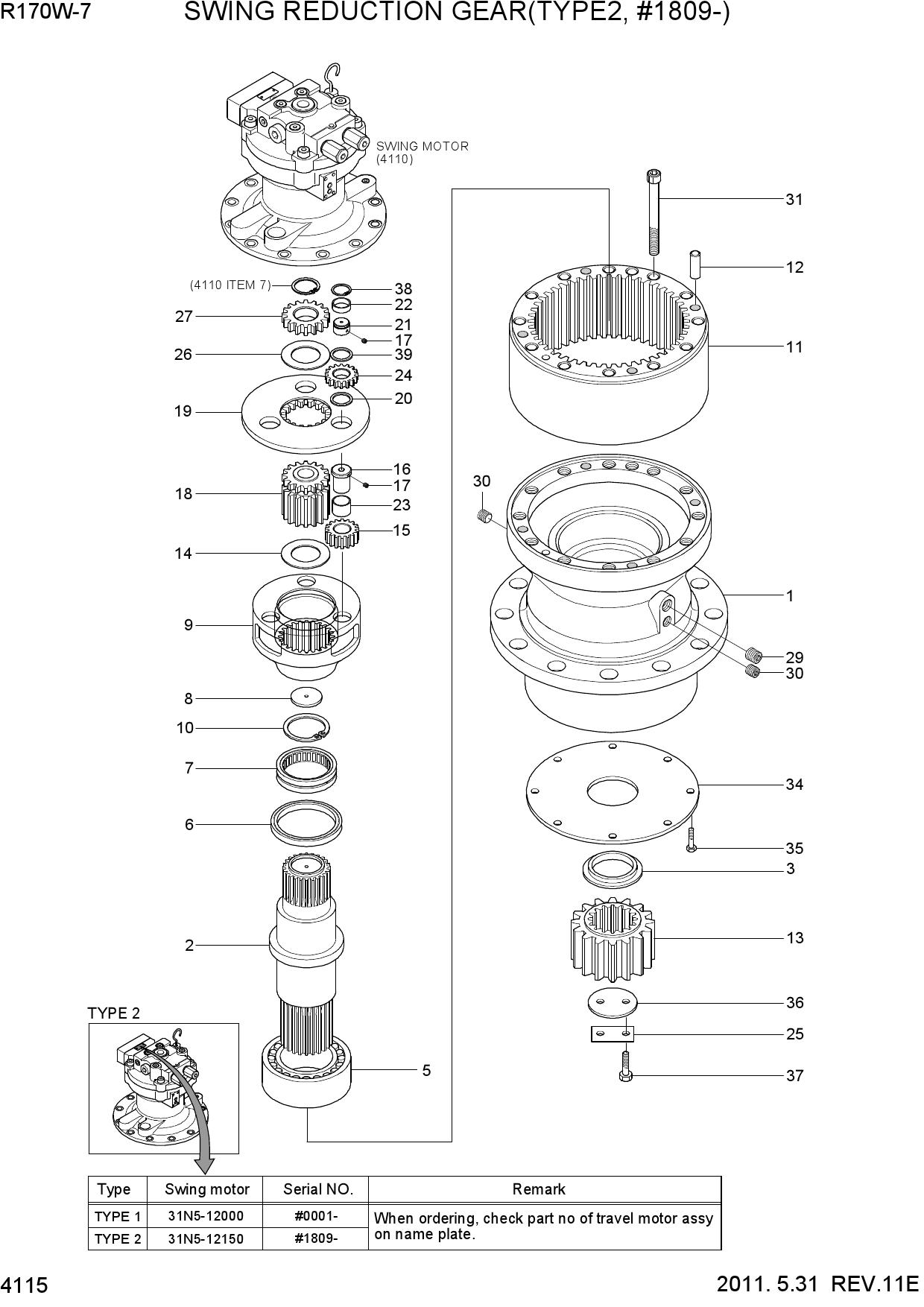

Запчасти для колесных экскаваторов Hyundai R170W-7 SWING REDUCTION GEAR(TYPE 2, #1809-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-2 | 31N6-10180 | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | CASING | |
| 2 | XKAQ-00331 | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | SPACER | |
| 5 | XKAQ-00026 | BEARING-ROLLER | |
| 6 | XKAQ-00032 | SEAL-OIL | |
| 7 | XKAQ-00029 | BEARING-ROLLER | |
| 7 | XKAQ-00647 | BEARING-ROLLER | |
| 8 | XKAQ-00076 | PLATE-THRUST | |
| 9 | XKAQ-00075 | CARRIER 2 | |
| 10 | XKAQ-00074 | RING-STOP | |
| 11 | XKAQ-00284 | GEAR-RING | |
| 11 | XKAQ-00779 | GEAR-RING | |
| 12 | XKAQ-00072 | PIN-KNOCK | |
| 13 | XKAQ-00976 | GEAR-PINION | |
| 14 | XKAQ-00071 | WASHER-THRUST | |
| 15 | XKAQ-00023 | GEAR-PLANET 2 | |
| 16 | XKAQ-00070 | PIN 2 | |
| 17 | XKAQ-00048 | PIN-SPRING | |
| 18 | XKAQ-00011 | GEAR-SUN 2 | |
| 19 | XKAQ-00015 | CARRIER 1 | |
| 20 | XKAQ-00057 | PLATE-SIDE 1 | |
| 21 | XKAQ-00019 | PIN 1 | |
| 22 | XKAQ-00030 | CAGE-NEEDLE | |
| 24 | XKAQ-00025 | GEAR-PLANET 1 | |
| 25 | XKAQ-00292 | WASHER-LOCK | |
| 26 | XKAQ-00068 | PLATE-SIDE 3 | |
| 27 | XKAQ-00010 | GEAR-SUN 1 | |
| 29 | XKAQ-00049 | PLUG | |
| 30 | XKAQ-00066 | PLUG | |
| 31 | XKAQ-00065 | BOLT-SOCKET | |
| 34 | XKAQ-00031 | PLATE-COVER | |
| 35 | XKAQ-00064 | BOLT-HEX | |
| 36 | XKAQ-00043 | PLATE-LOCK | |
| 37 | XKAQ-00042 | BOLT-HEX | |
| 38 | XKAQ-00041 | RING-STOP | |
| 39 | XKAQ-00040 | PLATE-SIDE 2 |
