- CAB MOUNTING
- CAB ASSY(1/6, STD & FOG TYPE, -#0087)
- CAB ASSY(1/6, STD & FOG TYPE, #0088-)
- CAB ASSY(1/6, ROOF TYPE, -#0087)
- CAB ASSY(1/6, ROOF TYPE, #0088-)
- CAB ASSY(2/6, -#0087)
- CAB ASSY(2/6, #0088-)
- CAB ASSY(3/6)
- CAB ASSY(4/6, DOOR)
- CAB ASSY(5/6, SASH ASSY)
- CAB ASSY(6/6, DOOR LATCH ASSY)
- CAB INTERIOR 1(-#0087)
- CAB INTERIOR 1(#0088-)
- CAB INTERIOR 2(-#0087)
- CAB INTERIOR 2(#0088-)
- CONSOLE BOX 1(LH, -#0087)
- CONSOLE BOX 1(LH, #0088-)
- CONSOLE BOX 2(LH, -#0087)
- CONSOLE BOX 2(LH, #0088-)
- CONSOLE BOX(RH, -#0087)
- CONSOLE BOX(RH, #0088-)
- SEAT BASE ASSY
- SEAT
- SEAT(SUSPENSION, HEATED, STD)
- SEAT(OPTION)
- SEAT(HEATED, STD)
- SEAT(2"AIR RIDE, HEATED, OPT, #0075-)
- STORAGE BOX COVER ASSY, -#0087)
- STORAGE BOX COVER ASSY, #0088-)
- BOTTOM PLATE MOUNTING(-#0087)
- BOTTOM PLATE MOUNTING(#0088-)
- COWLING 1
- COWLING 2
- SIDE COWL ASSY(LH)
- SIDE COVER ASSY(LH)
- SIDE COWL ASSY(RH)
- ENGINE HOOD ASSY(STD)
- ENGINE HOOD ASSY(OPT,L/NOISE)
- UNDER COVER
- TOOL BOX MOUNTING
- TOOL BOX
- GROMMET GROUP
- UPPER FRAME & COUNTERWEIGHT
- LOWER FRAME & COVER
- SWING RING GREASE LUB SYSTEM
- CAB PROTECTOR ASSY(OPTION)

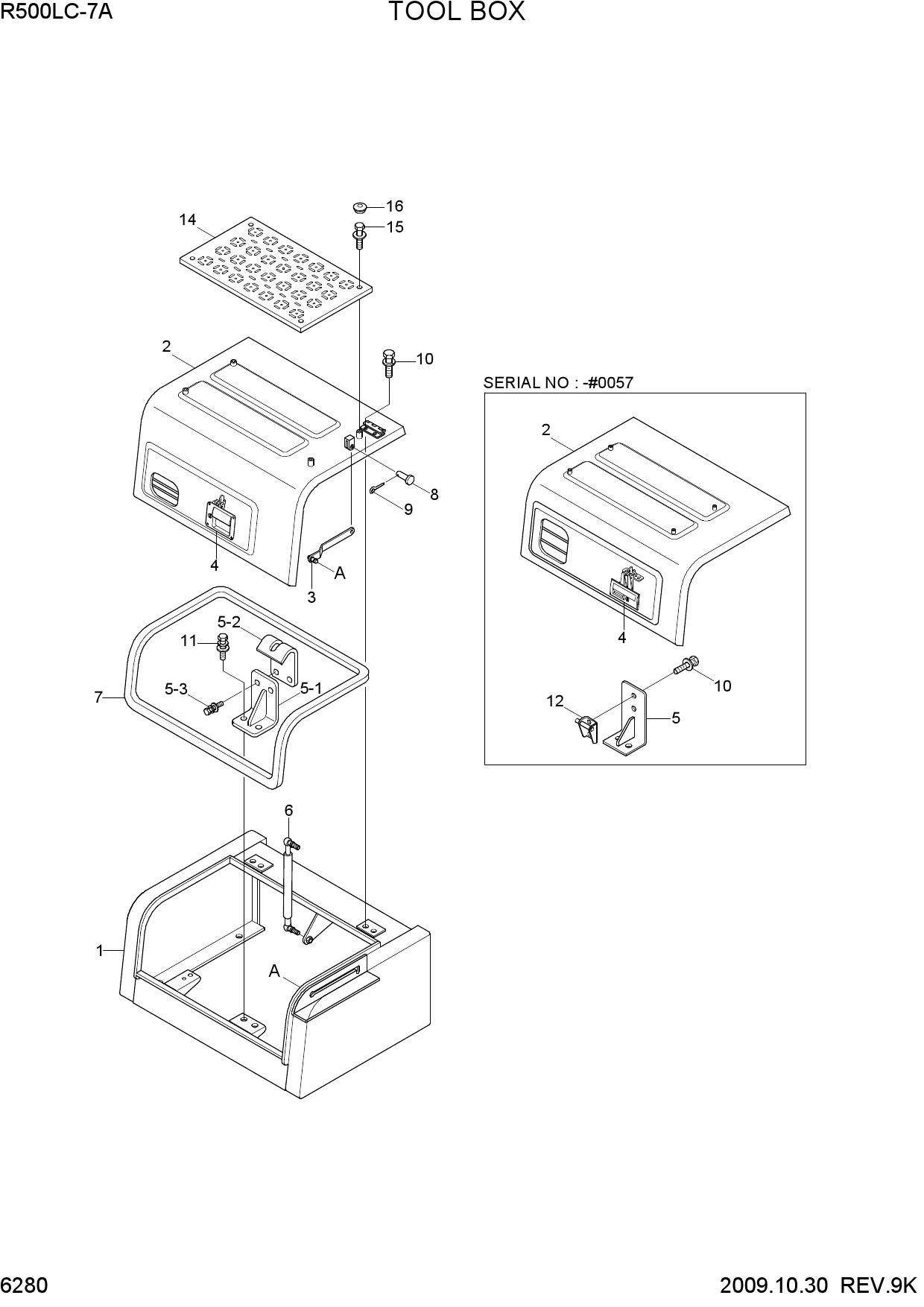

Запчасти для гусеничных экскаваторов Hyundai R500LC-7A TOOL BOX
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72N8-41000 | TOOL BOX ASSY | |
| * | 72N8-41001 | TOOL BOX ASSY | |
| * | 73NB-42000 | TOOL BOX ASSY | |
| 1 | 72N8-41100 | TOOL BOX WA | |
| 1 | 71N8-41105 | TOOL BOX WA | |
| 2 | 72N8-41201 | COVER WA | |
| 2 | 72N8-41202 | COVER WA | |
| 2 | 73NB-42200 | COVER WA | |
| 3 | 72N8-41300 | STAY WA | |
| 4 | 71N8-41702 | CATCH ASSY | |
| 4 | 74N8-41700 | CATCH ASSY | |
| 5 | 71N8-41502 | BRACKET | |
| 5 | 74N8-41500 | BRACKET | |
| 5-1 | 74N8-41560 | BRACKET WA | |
| 5-2 | 74N8-41570 | BRACKET WA | |
| 5-3 | S035-082526 | BOLT-W/WASHER | |
| 6 | 71N8-41321 | GAS SPRING ASSY | |
| 7 | S772-030900 | WEATHER STRIP | |
| 8 | S491-080252 | PIN-CLEVIS | |
| 9 | S461-320252 | PIN-SPLIT | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 11 | S037-102052 | BOLT-W/WASHER | |
| 12 | 71N8-41721 | BRACKET | |
| 14 | 74N8-49100 | NONSLIP PLATE | |
| 15 | S037-122056 | BOLT-W/WASHER | |
| 16 | 71Q6-41700 | CAP |
