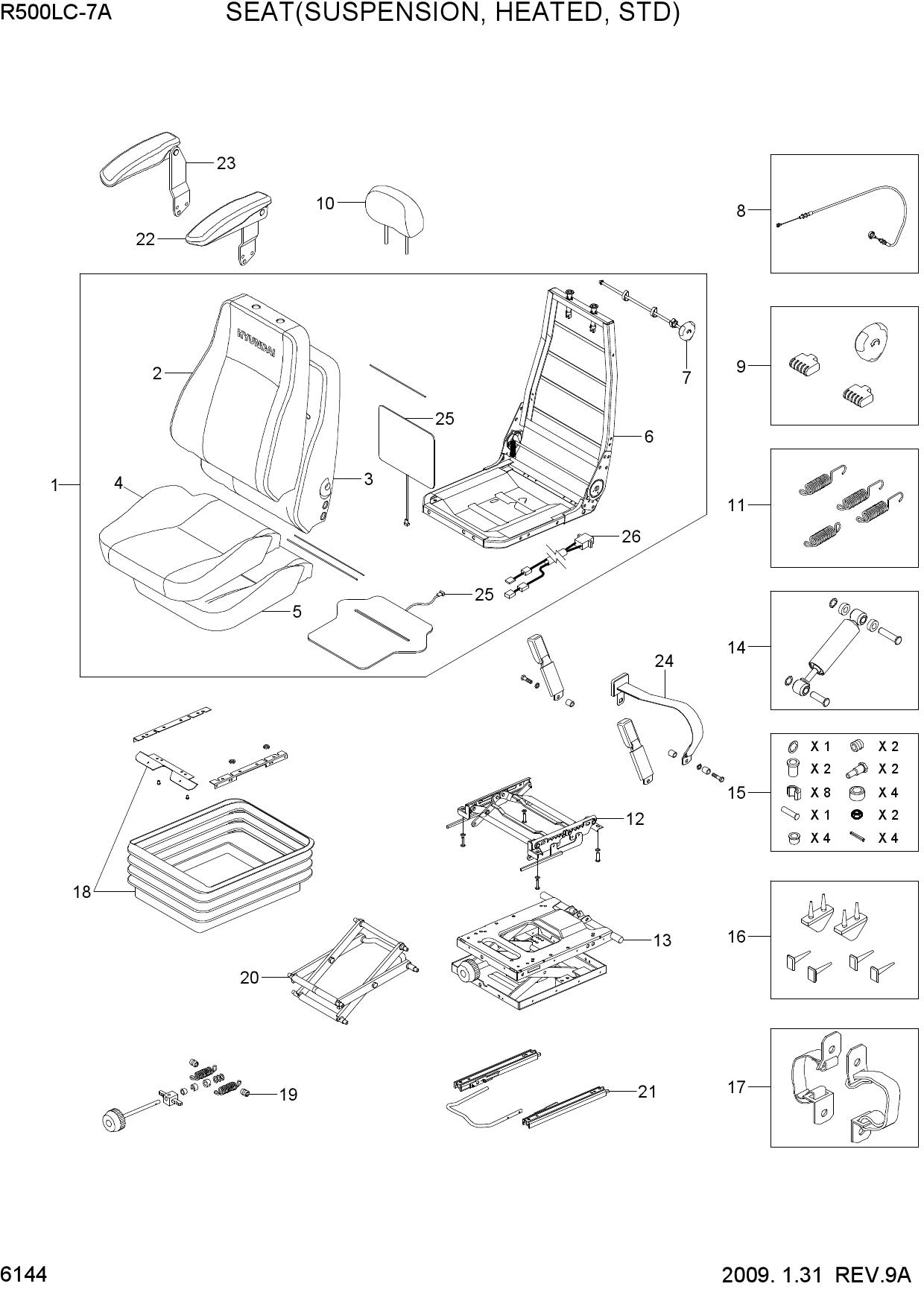

Запчасти для гусеничных экскаваторов Hyundai R500LC-7A SEAT(SUSPENSION, HEATED, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N6-30400 | SEAT ASSY | |
| 1 | 198636 | UPPER KIT-HEATED | |
| 2 | 161394 | KIT-B/COVER ASSY | |
| 3 | 157331 | KIT-BACK FORM | |
| 4 | 196716 | KIT-SEAT COVER | |
| 5 | 195372 | KIT-SEAT FORM | |
| 6 | 195401 | KIT-FORM | |
| 7 | 159546 | KIT-LUMBAR | |
| 25 | 198644 | KIT-HEATER | |
| 26 | 198645 | KIT-CONNECTOR | |
| 8 | 192161 | KIT-ADJUST CABLE | |
| 9 | 170985 | KIT-HANDLE | |
| 10 | 172526 | KIT-HEAD REST | |
| 11 | 160122 | KIT-HEIGHT RISER SPRING | |
| 12 | 198639 | KIT-HEIGHT RISER | |
| 13 | 196185 | KIT-SUSPENSION | |
| 14 | 164899 | KIT-DAMPER | |
| 15 | 166011 | KIT-BEARING | |
| 16 | 195389 | KIT-UP/BUMP STOP | |
| 17 | 198640 | KIT-TETHER BELT | |
| 18 | 198641 | KIT-SUSPENSION COVER | |
| 19 | 195392 | KIT-WEIGHT ADJUST | |
| 20 | 165989 | KIT-LVR/CENTER PIVOT | |
| 21 | 198642 | KIT-FORE/AFT ADJ | |
| 22 | 193615 | KIT-ARMREST,LH | |
| 23 | 193616 | KIT-ARMREST,RH | |
| 24 | 198643 | KIT-SEATBELT |
