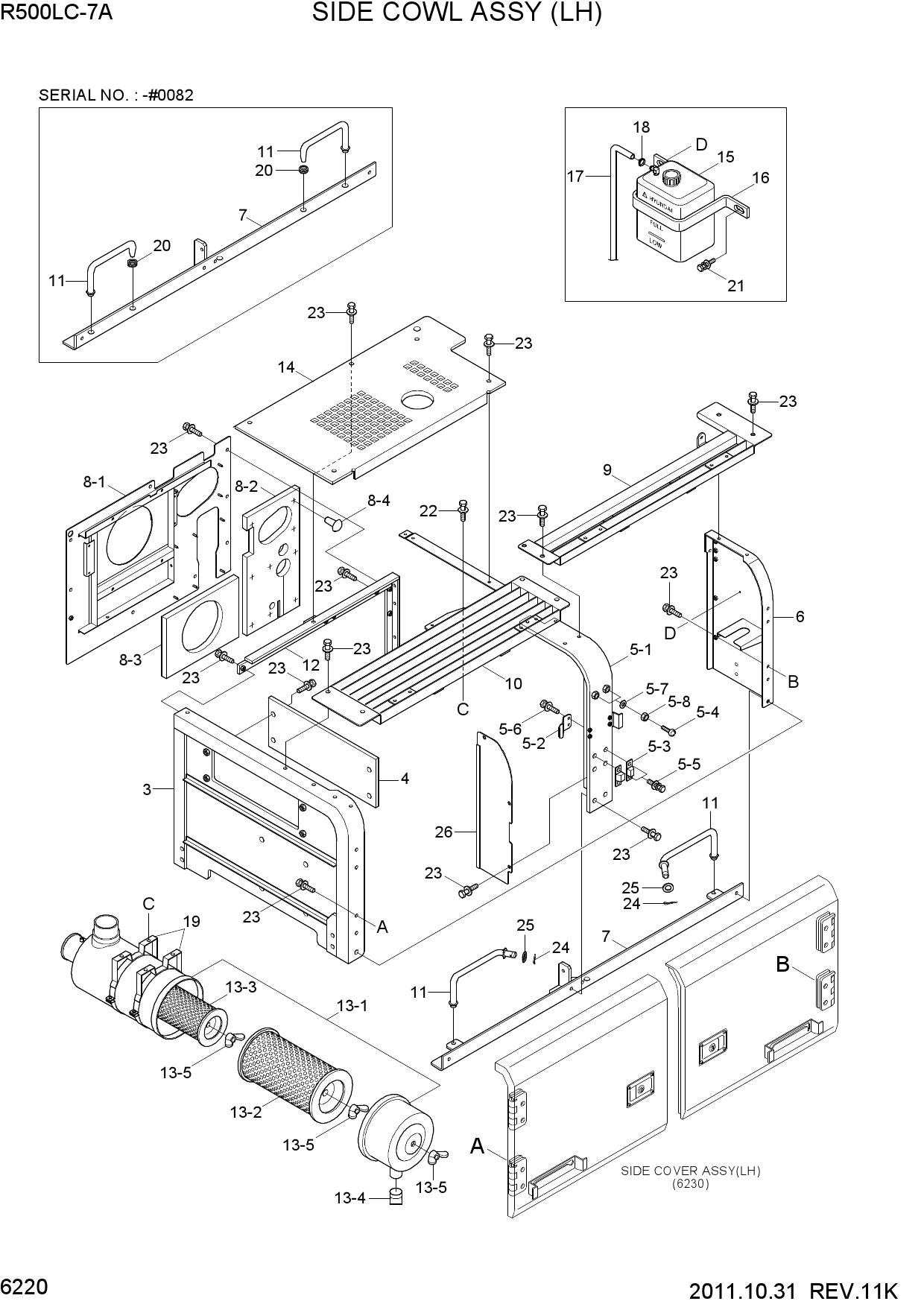

Запчасти для гусеничных экскаваторов Hyundai R500LC-7A SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 73NB-62003 | SIDE COWL ASSY-LH | |
| * | 73NB-62003Y | SIDE COWL ASSY-LH | |
| * | 73NB-64000 | SIDE COWL ASSY-LH | |
| * | 73NB-64001 | SIDE COWL ASSY-LH | |
| 3 | 71NB-52302 | SUPPORT WA-LH/FR | |
| 4 | 71N8-52322 | COVER-PLATE | |
| 5 | 71NB-52402 | SUPPORT ASSY-L/M | |
| 5 | 71NB-52403 | SUPPORT ASSY-L/M | |
| 5-1 | 71NB-52412 | SUPPORT WA-L/M | |
| 5-1 | 71NB-52413 | SUPPORT WA-L/M | |
| 5-2 | 71N8-52492 | PLATE-LOCK | |
| 5-3 | 71EE-53540 | STOPPER-B | |
| 5-4 | 71EH-13150 | BUMPER-RUBBER | |
| 5-5 | S035-062022 | BOLT-W/WASHER | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 5-7 | S403-10200B | WASHER-PLAIN | |
| 5-8 | S205-10100B | NUT-HEX | |
| 6 | 71NB-52501 | SUPPORT WA-LH/RR | |
| 7 | 71NB-52601 | BASE PLATE WA-LH | |
| 7 | 73NB-64600 | BASE PLATE WA-LH | |
| 8 | 73NB-62700 | SCREEN ASSY-MCV | |
| 8 | 73NB-62701 | SCREEN ASSY-MCV | |
| 8-1 | 73NB-62710 | SCREEN WA-MCV | |
| 8-1 | 73NB-62711 | SCREEN WA-MCV | |
| 8-2 | 73NB-62720 | SPONGE | |
| 8-2 | 73NB-62721 | SPONGE | |
| 8-3 | 73NB-62730 | SPONGE | |
| 8-4 | 71EM-51580 | CAP-STUD BOLT | |
| 9 | 73NB-52801 | SUPPORT WA-E/G HOOD | |
| 10 | 73NB-52900 | BRACKET WA-A/C | |
| 11 | 71N8-52950 | STAY-SIDE COVER | |
| 11 | 71ND-53800 | STAY WA | |
| 12 | 73NB-52980 | SUPPORT WA-MCV HOOD | |
| 13 | 11NB-20100 | AIR CLEANER SUB ASSY | |
| 13-1 | 11NB-20111 | HOUSING-AIR CLEANER | |
| 13-2 | 11NB-20120 | ELEMENT-OUTER | |
| 13-3 | 11NB-20130 | ELEMENT-INNER | |
| 13-4 | E211-2105 | VALVE-VACUUM | |
| 13-5 | 11E6-21281 | NUT-WING | |
| 14 | 71NB-55103 | HOOD WA-A/C | |
| 15 | 11N8-41070 | TANK-RESERVOIR | |
| 16 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 17 | 12L1-3011 | HOSE-DRAIN | |
| 18 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 19 | 14E7-01460 | CLAMP ASSY | |
| 20 | S681-100400 | GROMMET | |
| 21 | S035-082022 | BOLT-W/WASHER | |
| 22 | S037-103052 | BOLT-W/WASHER | |
| 23 | S037-122552 | BOLT-W/WASHER | |
| 23 | S037-122552 | BOLT-W/WASHER | |
| 24 | S461-320202 | PIN-SPLIT | |
| 25 | S403-121002 | WASHER-PLAIN | |
| 26 | 73NB-65900 | PLATE ASSY |
