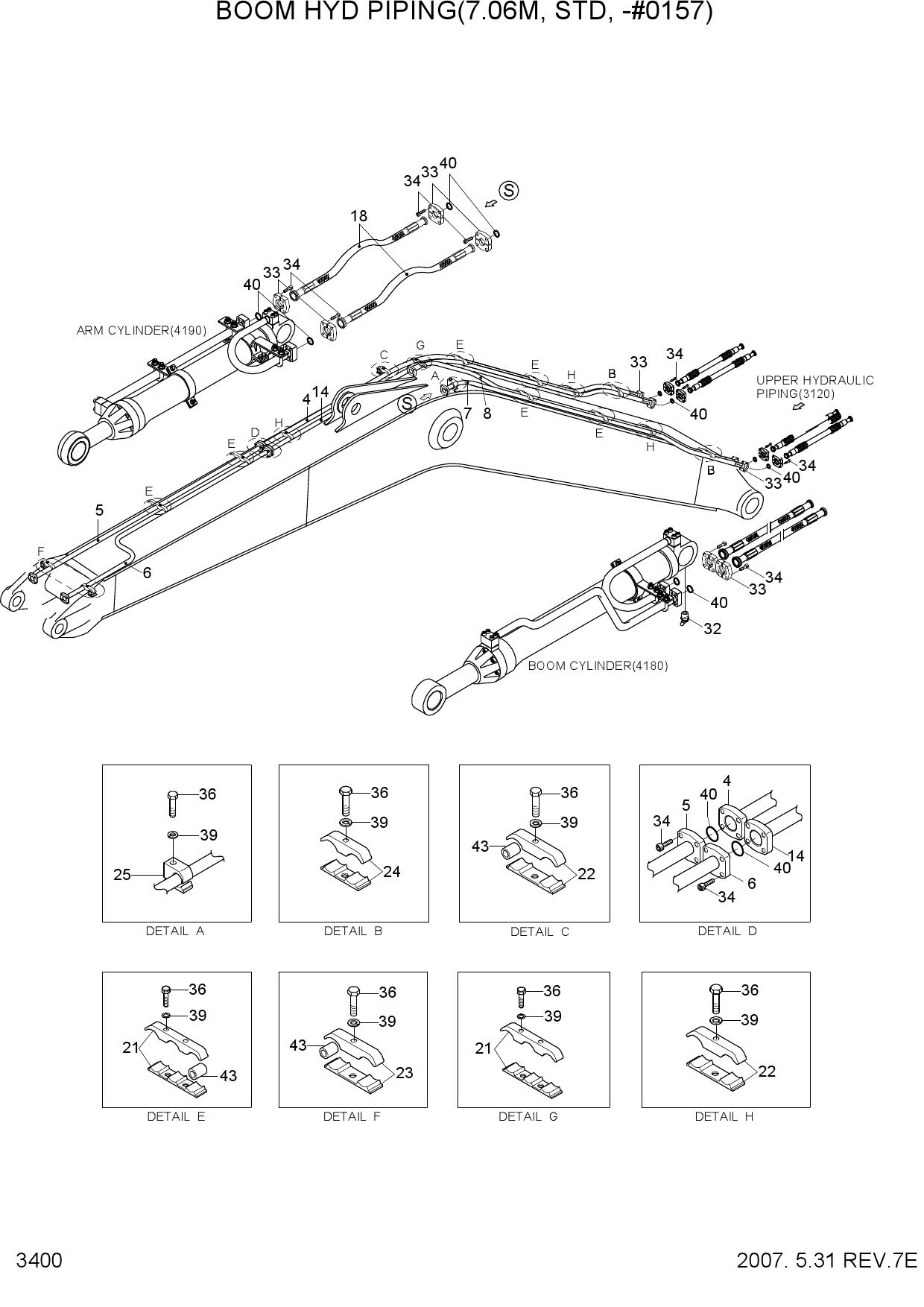

Запчасти для гусеничных экскаваторов Hyundai R450LC-7A BOOM HYD PIPING(7.06M, STD, -#0157)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31NB-51110 | PIPE WA-BK/CYL,ROD | |
| 5 | 31NB-51121 | PIPE WA-BK/CYL,ROD | |
| 6 | 31NB-51131 | PIPE WA-BK/CYL,BASE | |
| 7 | 31NB-51140 | PIPE WA-A/CYL,BASE | |
| 8 | 31NB-51150 | PIPE WA-A/CYL,ROD | |
| 14 | 31NB-51210 | PIPE WA-BK/CYL,BASE | |
| 18 | P680-207427 | HOSE ASSY-FLG | |
| 21 | 31NB-51340 | CLAMP ASSY | |
| 22 | 31NB-51320 | CLAMP ASSY | |
| 23 | 31NB-51270 | CLAMP ASSY | |
| 24 | 31NB-51310 | CLAMP ASSY | |
| 25 | 31NB-51300 | CLAMP ASSY | |
| 32 | S651-810002 | NIPPLE-GREASE | |
| 33 | P174-200106 | FLANGE-SPLIT | |
| 34 | S109-120506 | BOLT-SOCKET | |
| 36 | S017-16080A | BOLT-HEX(COATING) | |
| 39 | S411-160002 | WASHER-SPRING | |
| 40 | Y171-024004 | O-RING | |
| 43 | 31N5-50240 | SPACER-PIPE |
