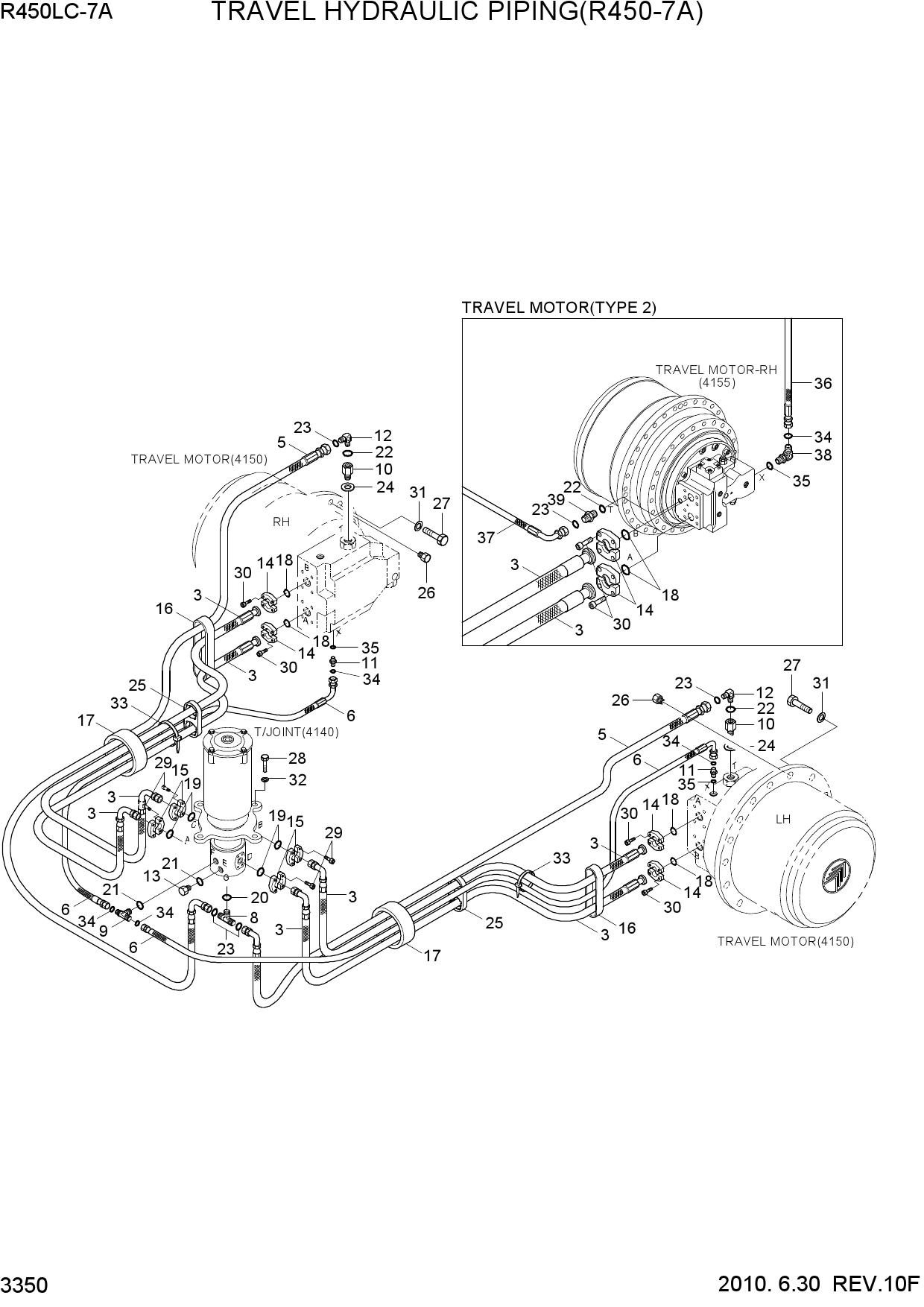

Запчасти для гусеничных экскаваторов Hyundai R450LC-7A TRAVEL HYDRAULIC PIPING(R450-7A)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 34E7-03680 | HOSE ASSY | |
| 5 | P930-122055 | HOSE ASSY-ORFS 0X90 | |
| 6 | X420-062056 | HOSE ASSY-SYNFLEX,ORFS | |
| 8 | 31NB-40110 | TEE-BRANCH TYPE | |
| 9 | X810-045151 | TEE-B/TYPE,ORFS | |
| 10 | 34E7-03670 | REDUCER | |
| 11 | X300-314001 | CONNECTOR-ORFS | |
| 12 | X520-110004 | ELBOW-90,ORFS | |
| 13 | P220-110102 | PLUG-HEX | |
| 14 | 31L1-0077 | FLANGE-SPLIT | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 16 | 31E7-00801 | GROMMET | |
| 17 | 31E7-0079 | GROMMET | |
| 18 | Y171-027004 | O-RING | |
| 19 | Y171-024004 | O-RING | |
| 20 | 31E7-0181 | O-RING | |
| 21 | S631-011004 | O-RING | |
| 22 | S631-024004 | O-RING | |
| 23 | S621-018001 | O-RING | |
| 24 | P392-260000 | WASHER-COPPER | |
| 26 | S981-202500 | PLUG | |
| 27 | S017-200902 | BOLT-HEX | |
| 27 | 31NB-40210 | BOLT-HEX | |
| 28 | S017-160352 | BOLT-HEX | |
| 29 | S109-100306 | BOLT-SOCKET | |
| 30 | S109-140456 | BOLT-SOCKET | |
| 31 | S441-200002 | WASHER-HARDENED | |
| 32 | S441-160002 | WASHER-HARDENED | |
| 33 | S552-102370 | CLAMP-BAND | |
| 34 | S621-011001 | O-RING | |
| 35 | X321-014001 | RING-ED | |
| 36 | X400-042066 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | P930-122058 | HOSE ASSY-ORFS 0X90 | |
| 38 | X520-110001 | ELBOW-90,ORFS | |
| 39 | X500-110014 | CONNECTOR-ORFS |
