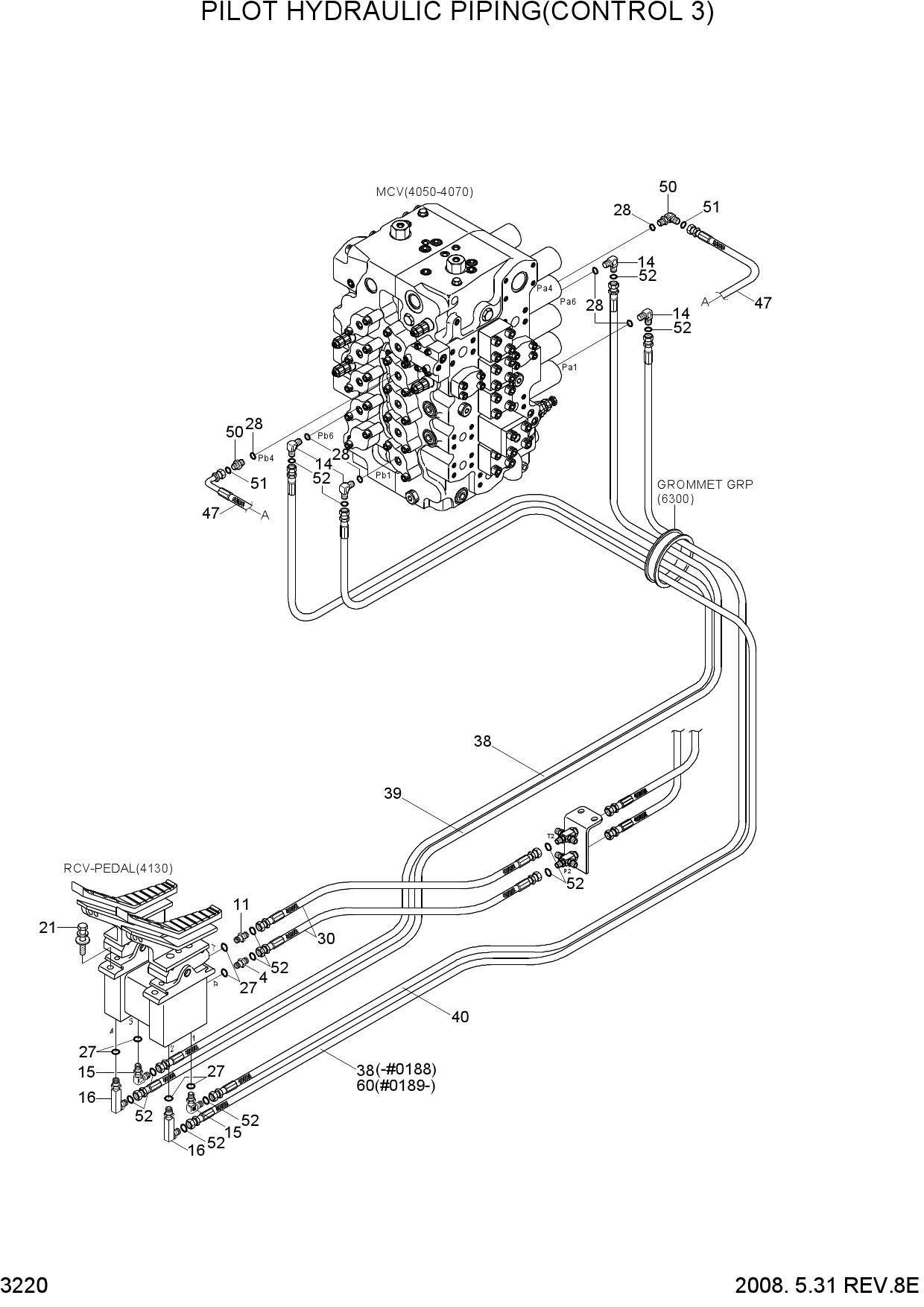

Запчасти для гусеничных экскаваторов Hyundai R450LC-7A PILOT HYDRAULIC PIPING(CONTROL 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-25070 | FILTER-LAST GUARD | |
| 11 | X500-110011 | CONNECTOR-ORFS | |
| 12 | P010-110013 | CONNECTOR | |
| 14 | X520-110002 | ELBOW-90,ORFS | |
| 15 | X520-110011 | ELBOW-90,ORFS | |
| 16 | 31N7-22100 | ELBOW-90,ORFS,LONG | |
| 21 | S037-103026 | BOLT-W/WASHER | |
| 26 | S403-102006 | WASHER-PLAIN | |
| 27 | S631-011004 | O-RING | |
| 28 | S631-014004 | O-RING | |
| 30 | X400-062019 | HOSE ASSY-SYNF,ORFS | |
| 38 | X400-062070 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | X400-062070 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X400-062079 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | X400-062081 | HOSE ASSY-SYNF,ORFS | |
| 47 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 50 | X520-110012 | ELBOW-90,ORFS | |
| 51 | S621-011001 | O-RING | |
| 52 | S621-012001 | O-RING | |
| 60 | X400-062076 | HOSE ASSY-SYNFLEX,ORFS |
