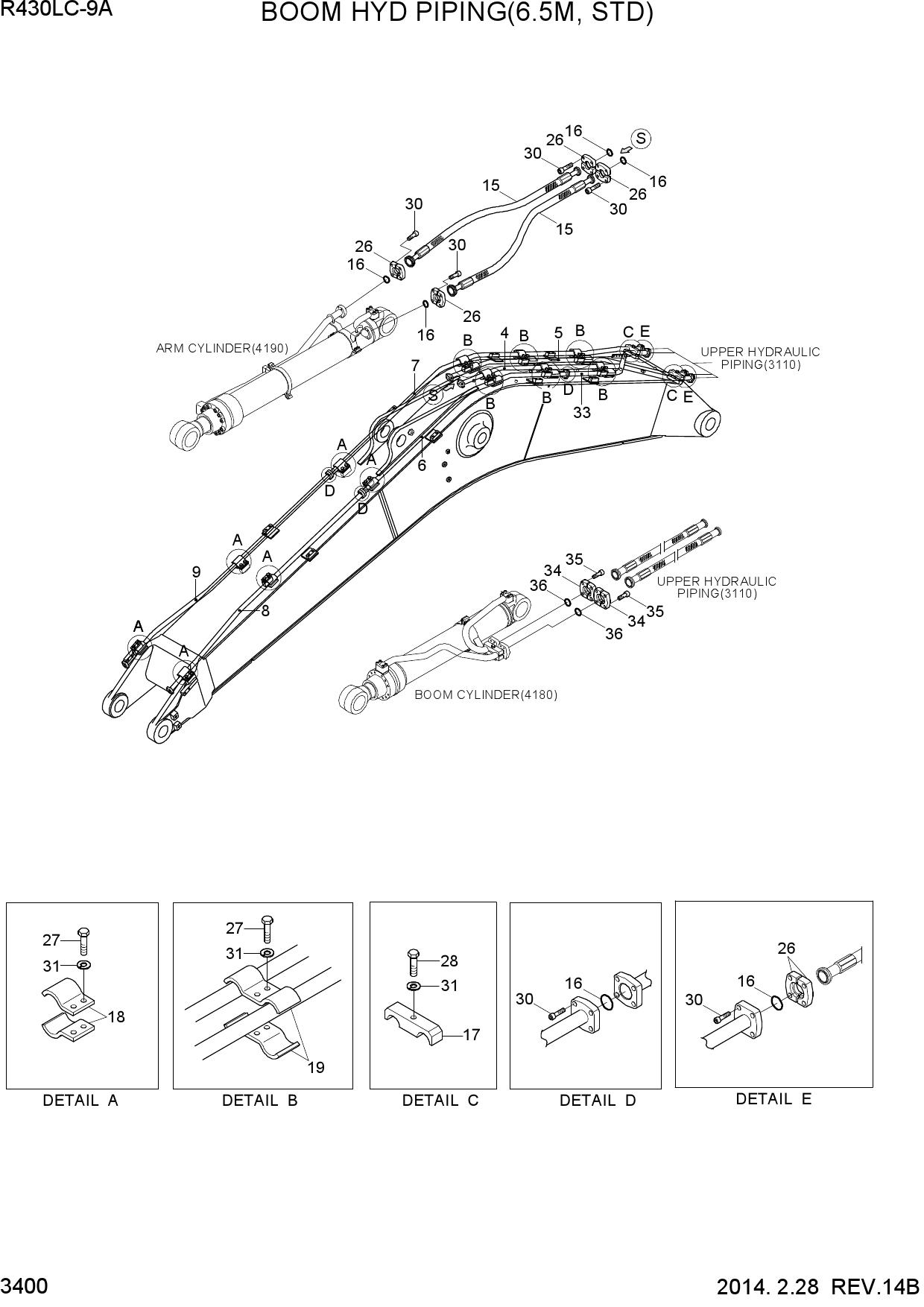

Запчасти для гусеничных экскаваторов Hyundai R430LC-9A BOOM HYD PIPING(6.5M, STD)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31QA-50312 | PIPE WA | |
| 5 | 31QA-50322 | PIPE WA | |
| 6 | 31QA-50400 | PIPE WA | |
| 7 | 31QA-50341 | PIPE WA | |
| 8 | 31QA-50352 | PIPE WA | |
| 9 | 31QA-50362 | PIPE WA | |
| 15 | P680-207425 | HOSE ASSY-FLG | |
| 15 | 31QA-50610 | HOSE ASSY(HI-GRADE) | |
| 16 | Y171-027004 | O-RING | |
| 17 | 31NB-51310 | CLAMP ASSY | |
| 18 | 31ND-51001 | CLAMP ASSY | |
| 19 | 31ND-51011 | CLAMP ASSY | |
| 26 | P174-200106 | FLANGE-SPLIT | |
| 27 | S017-16050D | BOLT-HEX | |
| 28 | S017-16080D | BOLT-HEX | |
| 30 | S109-120506 | BOLT-SOCKET | |
| 31 | S411-160006 | WASHER-SPRING | |
| 33 | 31QA-50410 | PIPE WA | |
| 34 | P173-160104 | FLANGE-HYD,SPLIT | |
| 35 | S109-100306 | BOLT-SOCKET | |
| 36 | Y171-024004 | O-RING |
