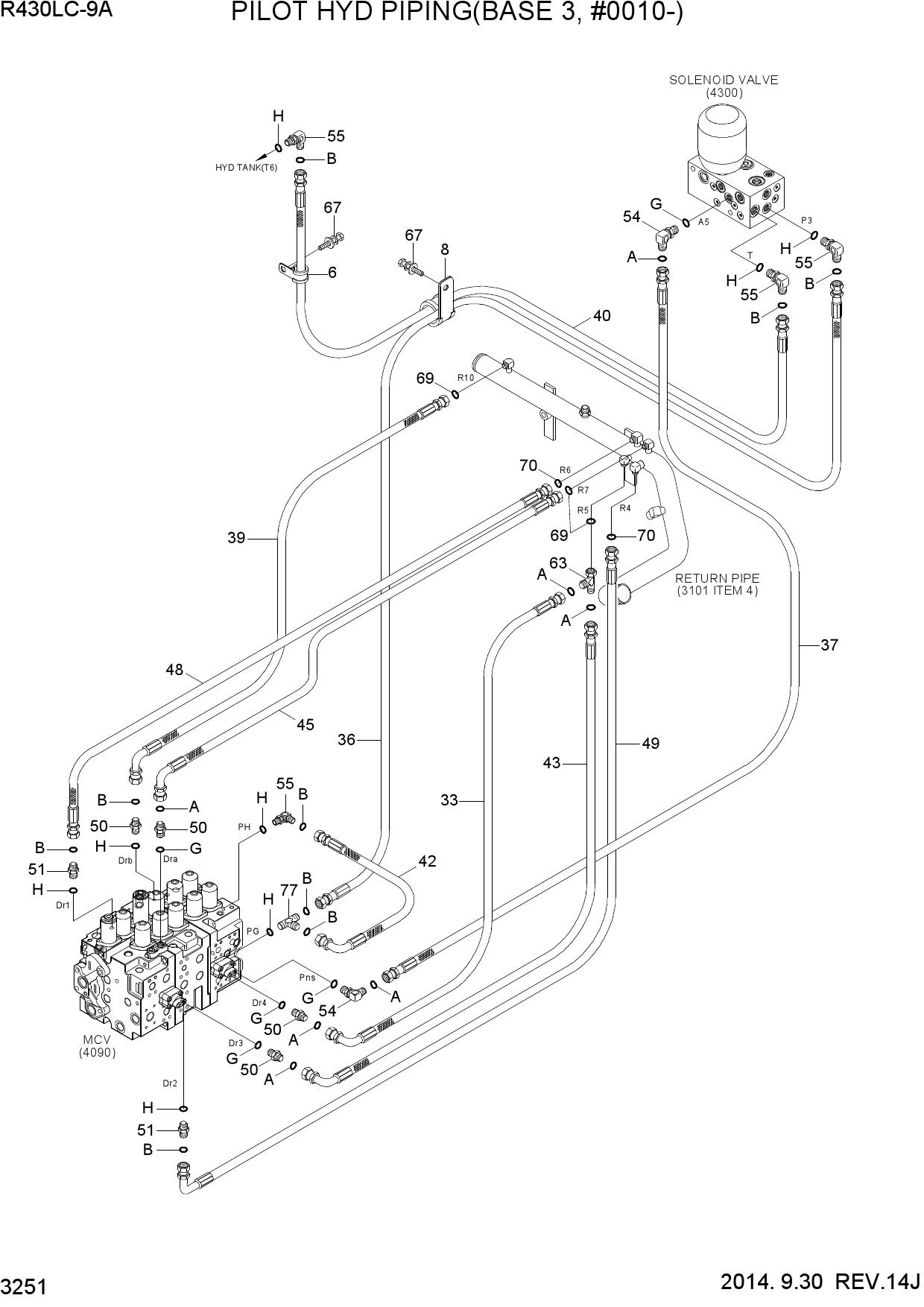

Запчасти для гусеничных экскаваторов Hyundai R430LC-9A PILOT HYD PIPING(BASE 3, #0010-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31L7-10210 | CLAMP-TUBE INS | |
| 8 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 33 | X420-042011 | HOSE ASSY-ORFS 0X90 | |
| 36 | X400-062046 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | X400-042053 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 42 | X400-062010 | HOSE ASSY-SYNF,ORFS | |
| 43 | X420-042013 | HOSE ASSY-ORFS 0X90 | |
| 45 | X420-042012 | HOSE ASSY-ORFS 0X90 | |
| 48 | X400-062018 | HOSE ASSY-SYNF,ORFS | |
| 49 | X420-062014 | HOSE ASSY-SYNFLEX,ORFS | |
| 50 | X500-110001 | CONNECTOR-ORFS | |
| 51 | X500-110002 | CONNECTOR-ORFS | |
| 54 | X520-110001 | ELBOW-90,ORFS | |
| 55 | X520-110002 | ELBOW-90,ORFS | |
| 63 | X840-515151 | TEE-R/TYPE,ORFS | |
| 67 | S037-102026 | BOLT-W/WASHER | |
| 69 | S621-011001 | O-RING | |
| 70 | S621-012001 | O-RING | |
| 77 | X820-065252 | TEE-R/TYPE,ORFS | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| G | S631-011004 | O-RING | |
| H | S631-014004 | O-RING |
