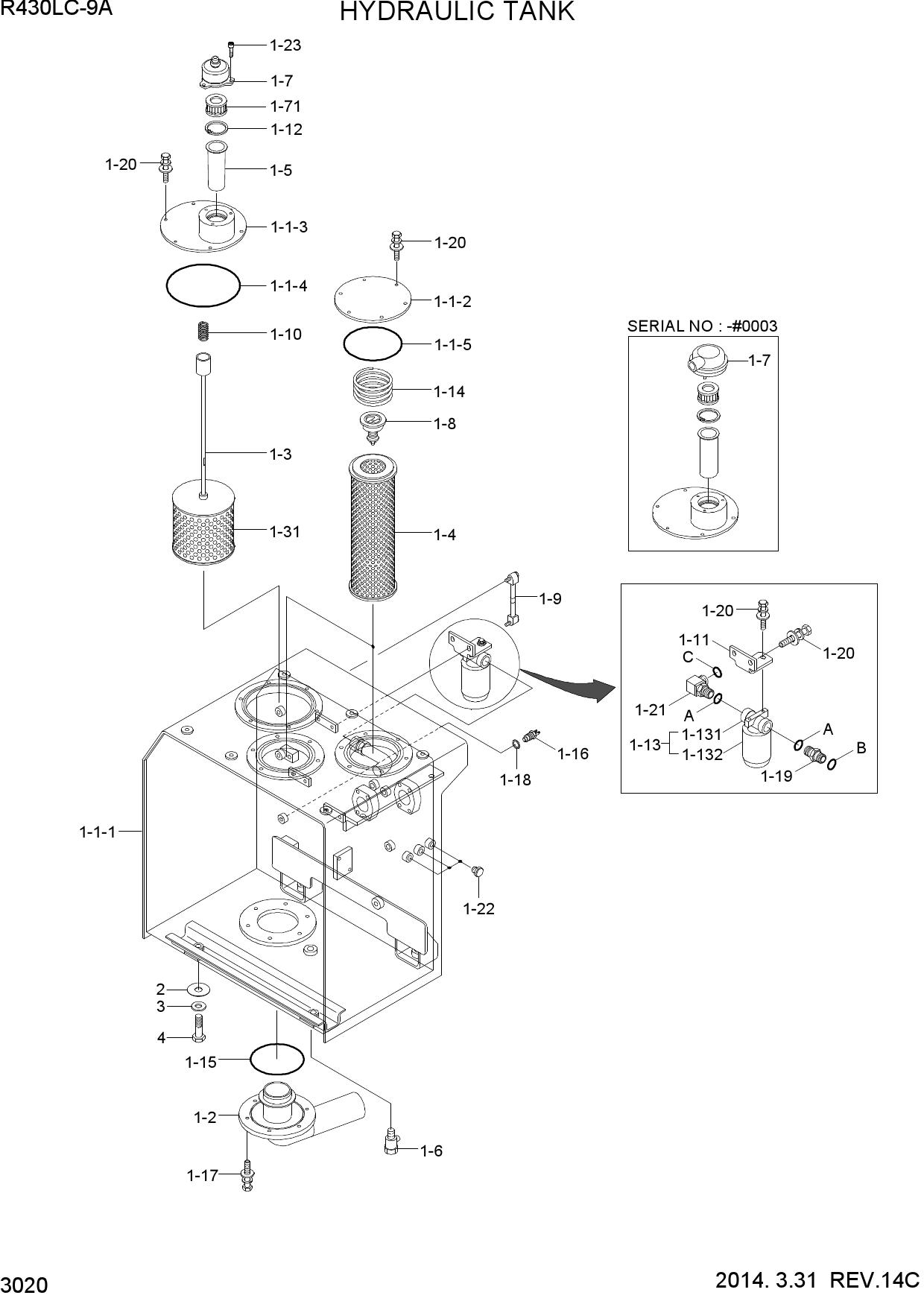

Запчасти для гусеничных экскаваторов Hyundai R430LC-9A HYDRAULIC TANK
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1-1-1 | 31QA-01021 | HYD TANK WA | |
| 1-1-2 | 31N4-01110 | COVER-RETURN | |
| 1-1-3 | 31N8-01280 | COVER ASSY-SUCTION | |
| 1-1-4 | S632-220001 | O-RING | |
| 1-1-5 | S632-170001 | O-RING | |
| 1-2 | 31QA-01260 | PIPE ASSY | |
| 1-3 | 31Q6-01130 | STRAINER ASSY | |
| 1-31 | E131-0214 | ELEMENT | |
| 1-4 | 31N8-01511 | ELEMENT ASSY | |
| 1-5 | 31EH-00090 | STRAINER | |
| 1-6 | 31Q6-01360 | VALVE-DRAIN | |
| 1-7 | 31NA-00040 | AIR BREATHER | |
| 1-7 | 32QA-00040 | AIR BREATHER | |
| 1-71 | 31EH-00480 | ELEMENT | |
| N1-71 | 32QA-00140 | ELEMENT-AIR BREATHER | |
| 1-8 | E131-0256 | VALVE-BYPASS | |
| 1-9 | E131-0473 | GAUGE-LEVEL | |
| 1-10 | E131-0594 | SPRING | |
| 1-11 | 31Q6-01160 | BRACKET | |
| 1-12 | S602-065004 | RING-RETAINING | |
| 1-13 | 31N8-01350 | FILTER-DRAIN | |
| 1-131 | 31N8-01370 | HEAD-DRAIN FILTER | |
| 1-132 | 31N8-01360 | CARTRIDGE-DRAIN FILTER | |
| 1-14 | 31E9-1020 | SPRING-RETURN | |
| 1-15 | S632-150001 | O-RING | |
| 1-16 | 21EN-40100 | SENDER-TEMP | |
| 1-17 | S037-103026 | BOLT-W/WASHER | |
| 1-18 | 21EA-50260 | PACKING-TEMP SW | |
| 1-19 | X500-110005 | CONNECTOR-ORFS | |
| 1-20 | S037-102526 | BOLT-W/WASHER | |
| 1-21 | X520-110018 | ELBOW-90,ORFS | |
| 1-22 | P220-110103 | PLUG-HEX | |
| 1-23 | S109-080156 | BOLT-SOCKET | |
| A | S631-029004 | O-RING | |
| B | S621-021001 | O-RING | |
| C | S621-018001 | O-RING | |
| 2 | 31N8-01300 | SHIM(1.0T) | |
| 3 | 91E6-60200-DA | WASHER-HARDENED | |
| 4 | S017-20050D | BOLT-HEX |
