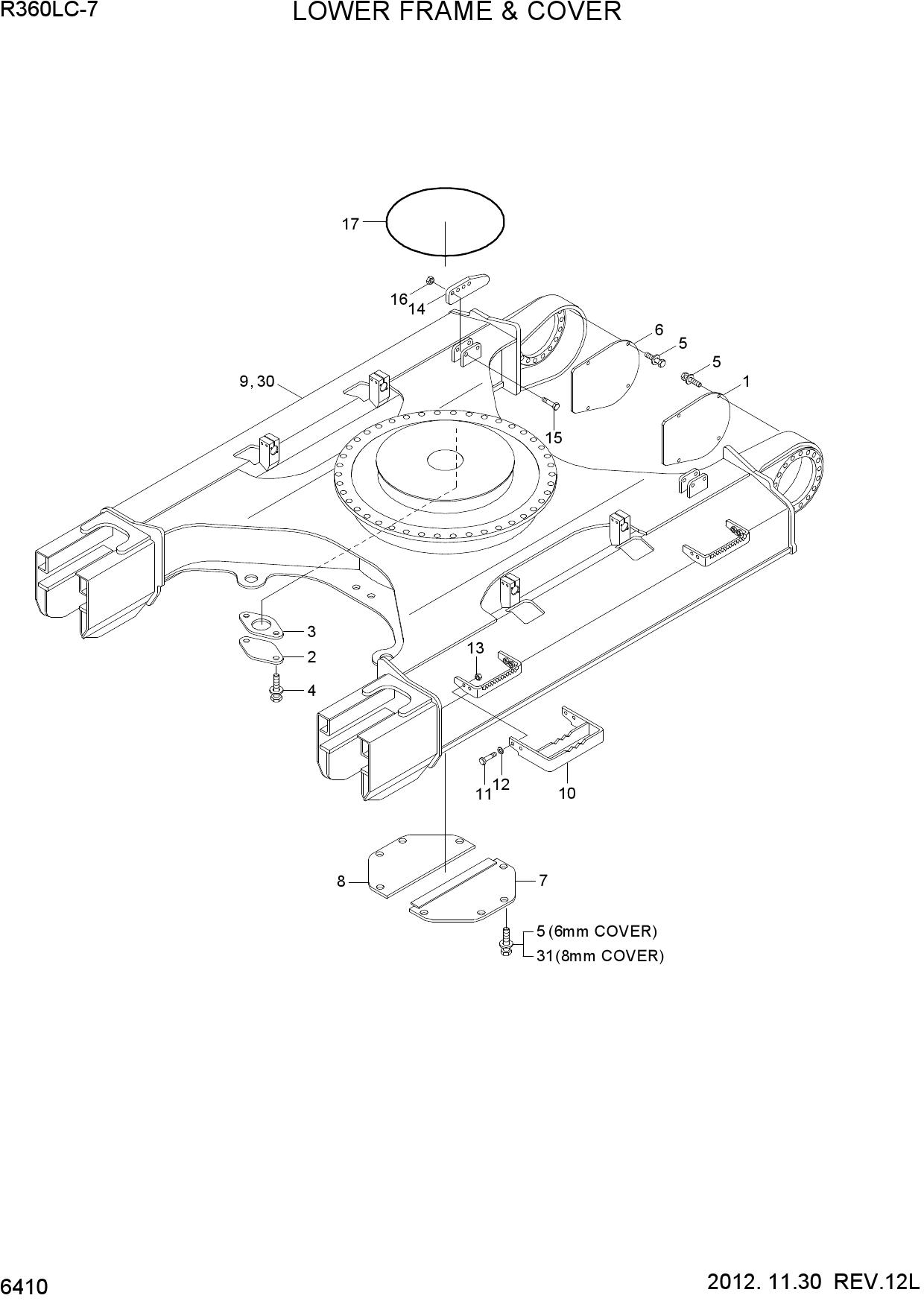

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 LOWER FRAME & COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51EH-10010 | COVER WA-T/MOTOR,LH | |
| 2 | E141-1305 | COVER | |
| 3 | 41E9-1306 | SEAL | |
| 4 | S037-102526 | BOLT-W/WASHER | |
| 5 | S037-123556 | BOLT-W/WASHER | |
| 6 | 51EH-10020 | COVER WA-T/MOTOR,RH | |
| 7 | 51E6-2006 | COVER WA-BOTTOM | |
| 7 | 51N6-11230 | COVER-BOTTOM(A) | |
| 7 | 51N6-11230BG | COVER-BOTTOM(A) | |
| 8 | 51E6-2005 | COVER WA-BOTTOM | |
| 8 | 51N6-11240 | COVER-BOTTOM(B) | |
| 8 | 51N6-11240BG | COVER-BOTTOM(B) | |
| 9 | 51NA-00011 | LOWER FRAME WA | |
| 9 | 51NA-00011BG | LOWER FRAME WA | |
| 10 | 51N8-20011 | BOARD-FOOT | |
| 10 | 51N8-20011BG | BOARD-FOOT | |
| 10 | 51N8-20051 | BOARD-FOOT | |
| 10 | 51N8-20051BG | BOARD-FOOT | |
| 10 | 51N8-20081 | BOARD-FOOT | |
| 10 | 51N8-20081BG | BOARD-FOOT | |
| 11 | S017-160552 | BOLT-HEX | |
| 12 | S441-160002 | WASHER-HARDENED | |
| 13 | S207-161002 | NUT-HEX | |
| 14 | 81EH-10150 | LINK GUIDE | |
| 14 | 81EH-10150BG | LINK GUIDE | |
| 15 | S017-161102 | BOLT-HEX | |
| 16 | S275-160002 | NUT-SELF LOCKING | |
| 17 | E181-3002 | SEAL-GREASE | |
| 30 | 51NA-01010 | LOWER FRAME WA | |
| 30 | 51NA-01010BG | LOWER FRAME WA | |
| 31 | S037-124556 | BOLT-W/WASHER |
