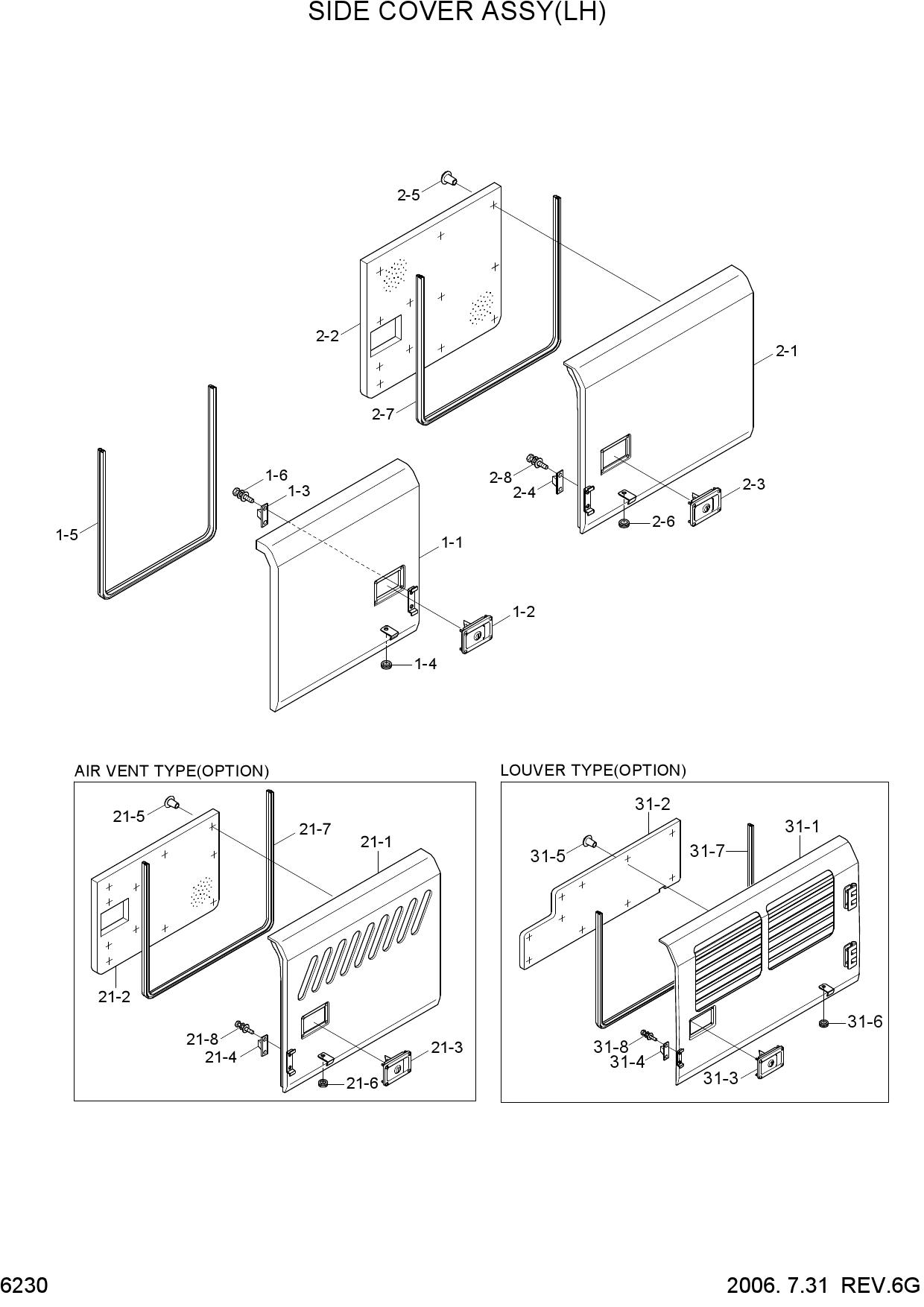

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 SIDE COVER ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 71NA-52100 | SIDE COVER ASSY-LH/FR | |
| 1-1 | 71NA-52110 | SIDE COVER WA-LH/FR | |
| 1-2 | 71EE-52520 | CATCH ASSY | |
| 1-2 | 74N8-52520 | CATCH ASSY | |
| 1-3 | 71EE-53530 | STOPPER-A | |
| 1-4 | S681-100400 | GROMMET | |
| 1-5 | S772-024800 | WEATHER STRIP | |
| 1-6 | S035-061622 | BOLT-W/WASHER | |
| 2 | 71N9-52200 | SIDE COVER ASSY-LH/RR | |
| 2-1 | 71N9-52210 | SIDE COVER WA-LH,RR | |
| 2-2 | 71N9-52240 | SPONGE-LH,RR | |
| 2-3 | 71EE-52520 | CATCH ASSY | |
| 2-3 | 74N8-52520 | CATCH ASSY | |
| 2-4 | 71EE-53531 | STOPPER-A | |
| 2-5 | 71EM-51580 | CAP-STUD BOLT | |
| 2-5 | 71EM-51580 | CAP-STUD BOLT | |
| 2-6 | S681-100400 | GROMMET | |
| 2-7 | S772-027500 | WEATHER STRIP | |
| 2-8 | S035-061622 | BOLT-W/WASHER | |
| 21 | 71NA-72200 | SIDE COVER ASSY-LH,RR | |
| 21-1 | 71NA-72210 | SIDE COVER WA-LH,RR | |
| 21-2 | 71NA-72240 | SPONGE | |
| 21-3 | 71EE-52520 | CATCH ASSY | |
| 21-3 | 74N8-52520 | CATCH ASSY | |
| 21-4 | 71EE-53531 | STOPPER-A | |
| 21-5 | 71EM-51580 | CAP-STUD BOLT | |
| 21-5 | 71EM-51580 | CAP-STUD BOLT | |
| 21-6 | S681-100400 | GROMMET | |
| 21-7 | S772-027500 | WEATHER STRIP | |
| 21-8 | S035-061622 | BOLT-W/WASHER | |
| 31 | 71NA-62200 | SIDE COVER ASSY-LH(RR) | |
| 31-1 | 71NA-62210 | SIDE COVER WA-LH(RR) | |
| 31-2 | 71NA-62230 | SPONGE | |
| 31-3 | 71EE-52520 | CATCH ASSY | |
| 31-3 | 74N8-52520 | CATCH ASSY | |
| 31-4 | 71EE-53531 | STOPPER-A | |
| 31-5 | 71EM-51580 | CAP-STUD BOLT | |
| 31-6 | S681-100400 | GROMMET | |
| 31-7 | S772-027500 | WEATHER STRIP | |
| 31-8 | S035-061522 | BOLT-W/WASHER |
