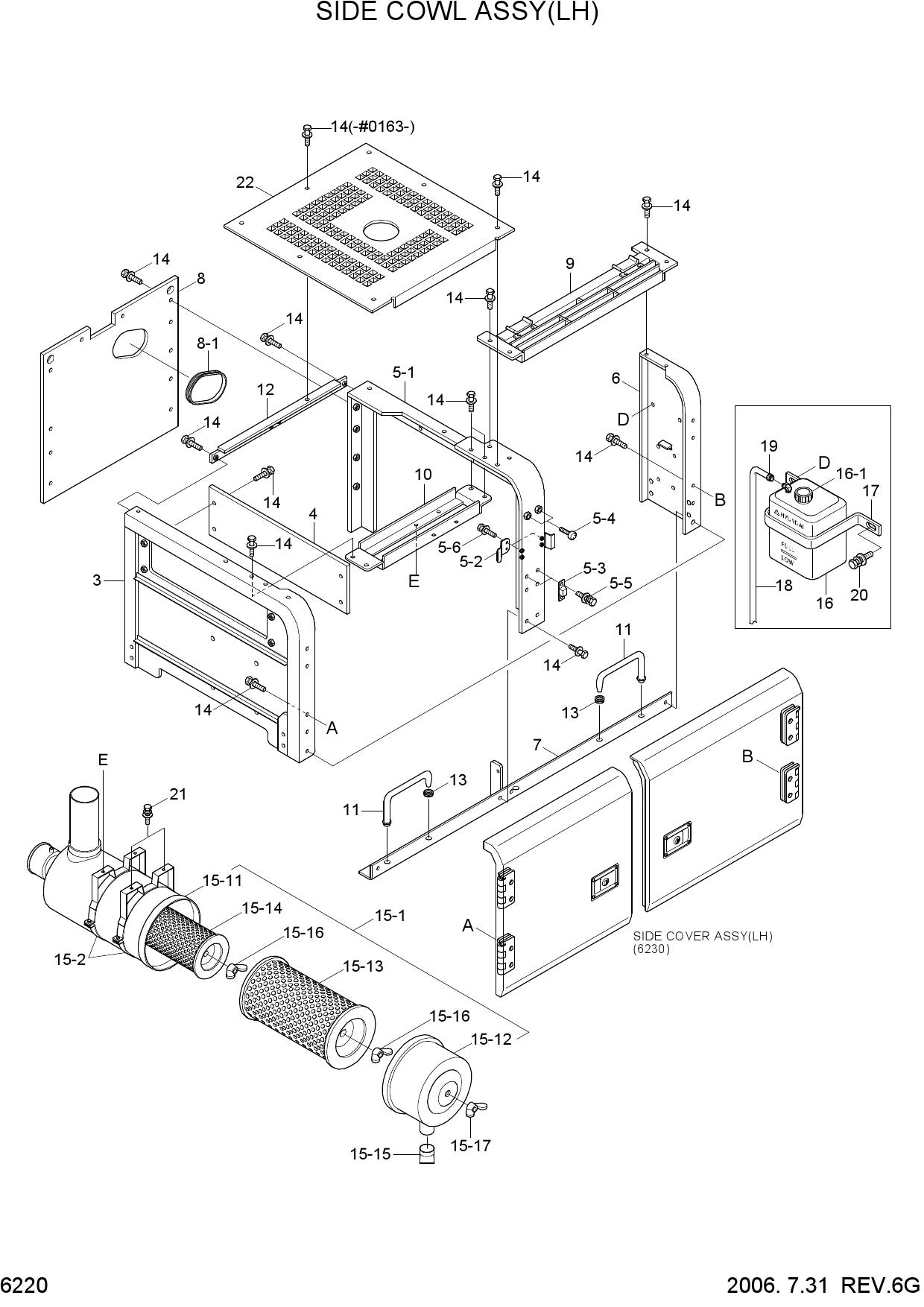

Запчасти для гусеничных экскаваторов Hyundai R360LC-7 SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71NA-52002 | SIDE COWL ASSY-LH | |
| * | 71NA-82000 | SIDE COWL ASSY-LH | |
| * | 71NA-92000 | SIDE COWL ASSY-LH | |
| 3 | 71NA-52300 | SUPPORT WA-LH/FR | |
| 4 | 71N8-52322 | COVER-PLATE | |
| 5 | 71NA-52402 | SUPPORT ASSY-L/M | |
| 5 | 71NA-52403 | SUPPORT ASSY-L/M | |
| 5-1 | 71NA-52412 | SUPPORT WA-L/M | |
| 5-1 | 71NA-52413 | SUPPORT WA-L/M | |
| 5-2 | 71N8-52492 | PLATE-LOCK | |
| 5-3 | 71EE-53540 | STOPPER-B | |
| 5-4 | 71EH-13150 | BUMPER-RUBBER | |
| 5-5 | S035-062022 | BOLT-W/WASHER | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 6 | 71NA-52502 | SUPPORT WA-LH/RR | |
| 7 | 71NA-52602 | BASE PLATE WA-LH | |
| 8 | 71NA-52702 | SCREEN-MCV | |
| 8 | 71NA-52703 | SCREEN-MCV | |
| 8-1 | S791-030080 | GROMMET-PLATE | |
| 9 | 71NA-52802 | SUPPORT WA-E/G HOOD | |
| 10 | 71NA-52902 | BRACKET-A/CLEANER | |
| 11 | 71N8-52950 | STAY-SIDE COVER | |
| 12 | 71NA-52982 | SUPPORT WA-MCV HOOD | |
| 12 | 71NA-52983 | SUPPORT WA-MCV HOOD | |
| 13 | S681-100400 | GROMMET | |
| 14 | S037-122552 | BOLT-W/WASHER | |
| 14 | S037-122552 | BOLT-W/WASHER | |
| 14 | S037-122552 | BOLT-W/WASHER | |
| 15 | 11N8-22100 | AIR CLEANER&CLAMP | |
| 15-1 | 11N8-22110 | AIR CLEANER ASSY | |
| 15-11 | 11N8-22120 | HOUSING | |
| 15-12 | 11N8-22130 | CAP WA | |
| 15-13 | 11N8-22140 | ELEMENT-OUTER | |
| 15-14 | 11N8-22150 | ELEMENT-INNER | |
| 15-15 | E211-2105 | VALVE-VACUUM | |
| 15-16 | 11EM-21060 | NUT-WING | |
| 15-17 | 11EM-21070 | NUT-WING | |
| 15-2 | 11L1-2005 | CLAMP ASSY | |
| 16 | 11N8-41070 | TANK-RESERVOIR | |
| 16-1 | MH100020 | CAP-RESERVOIR TANK | |
| 17 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 18 | E111-2504 | HOSE | |
| 19 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 20 | S035-082022 | BOLT-W/WASHER | |
| 21 | S035-102522 | BOLT-W/WASHER | |
| 22 | 71NA-55101 | HOOD WA-A/C | |
| 22 | 71NA-55102 | HOOD WA-A/C |
