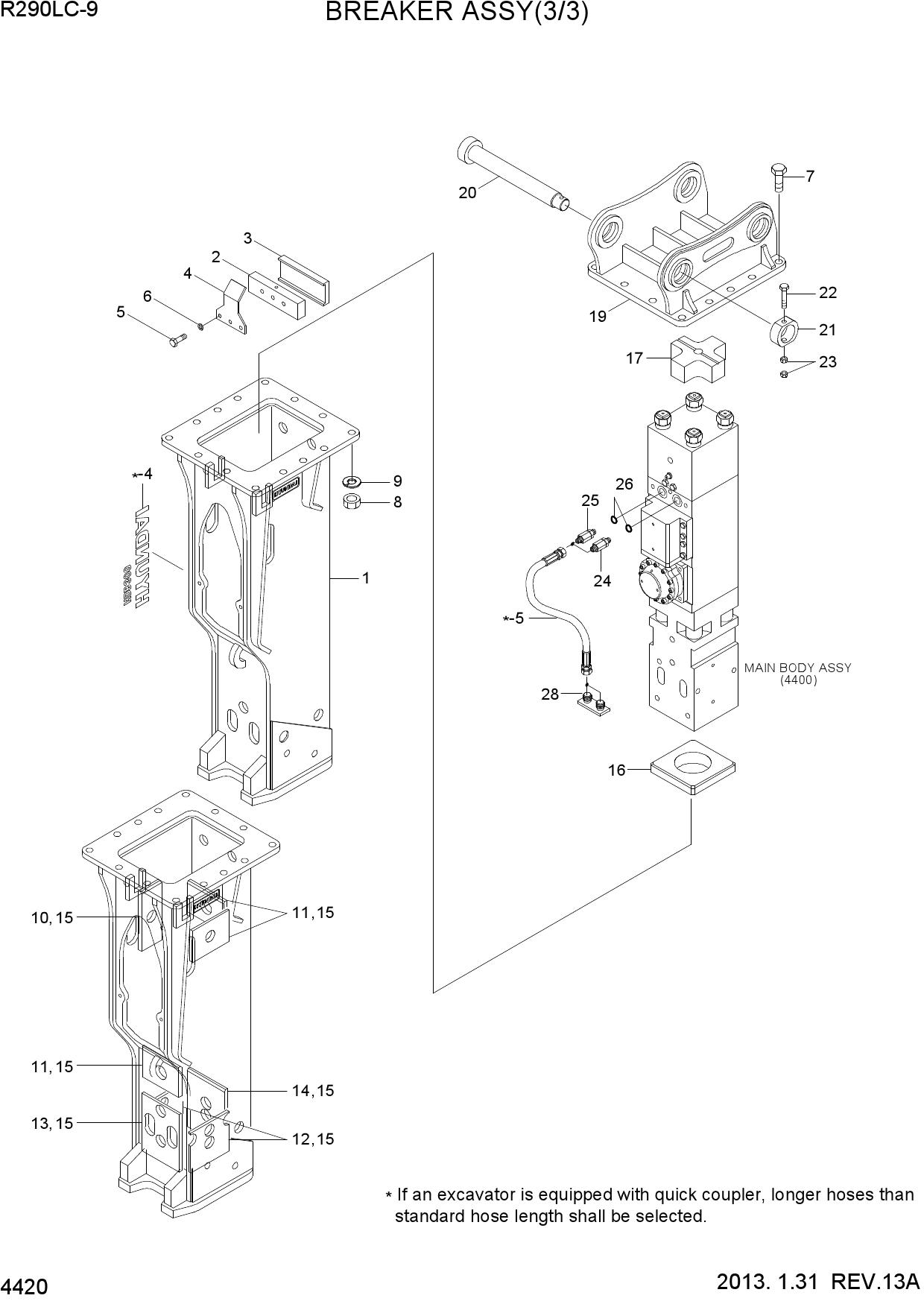

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 BREAKER ASSY(3/3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-2 | XKBN-01136 | BRACKET ASSY-BENDING | |
| 1 | XKBN-01137 | HOUSING WA-BENDING | |
| 2 | XKBN-01138 | BAR-SQUARE | |
| 3 | XKBN-01139 | PLATE-WEAR | |
| 4 | XKBN-01140 | PLATE-BENDING CLAMP | |
| 5 | XKBN-00933 | BOLT-HEX | |
| 6 | XKBN-00884 | WASHER-NORD LOCK | |
| 7 | XKBN-01141 | BOLT-HEX | |
| 8 | XKBN-00183 | NUT-TEFRON | |
| 9 | XKBN-01142 | WASHER-SPRING | |
| 10 | XKBN-01067 | DAMPER-SIDE | |
| 11 | XKBN-00937 | DAMPER-SIDE | |
| 12 | XKBN-01143 | DAMPER-SIDE | |
| 13 | XKBN-01144 | DAMPER-SIDE | |
| 14 | XKBN-01145 | DAMPER-SIDE | |
| 15 | XKBN-00034 | O-RING | |
| 16 | XKBN-01146 | DAMPER-BOTTOM | |
| 17 | XKBN-01147 | DAMPER-UPPER | |
| 19 | XKBN-01149 | MOUNTING BRACKET WA | |
| 20 | XKBN-01079 | PIN-BRACKET | |
| 21 | XKBN-01076 | RING-STOP | |
| 22 | XKBN-00947 | BOLT-HEX | |
| 23 | XKBN-00718 | NUT-HEX | |
| 24 | XKBN-01085 | ADAPTER | |
| 25 | XKBN-01083 | ADAPTER | |
| 26 | XKBN-00877 | O-RING | |
| 28 | XKBN-01084 | PLUG-HOSE | |
| *-4 | XKBN-01151 | DECAL ASSY-HYUNDAI | |
| *-5 | XKBN-01082 | HOSE ASSY |
