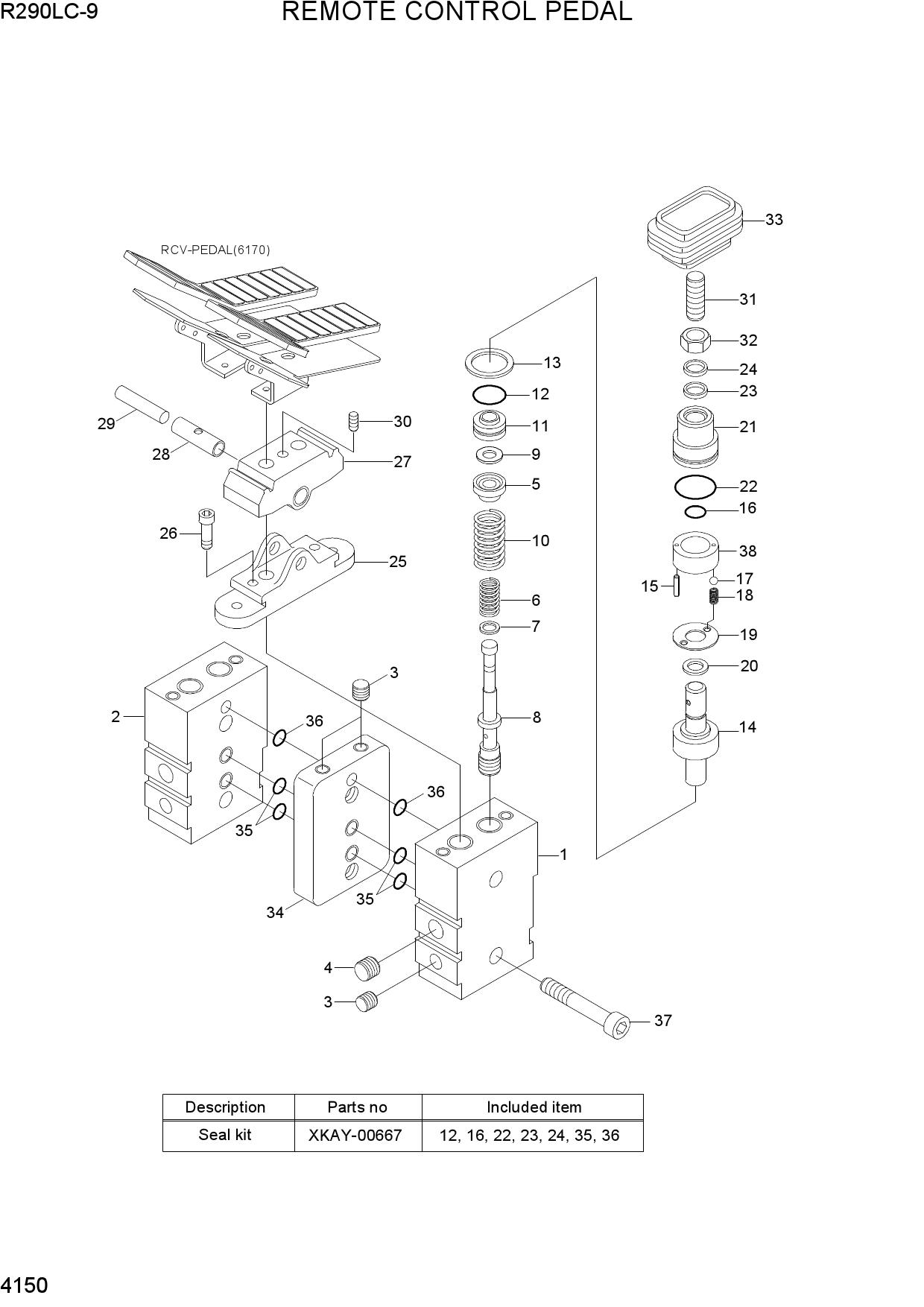

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 REMOTE CONTROL PEDAL
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31Q6-20100 | RCV PEDAL | |
| 1 | XKAY-00035 | BODY(1) | |
| 2 | XKAY-00034 | BODY(2) | |
| 3 | XKAY-00065 | PLUG | |
| 4 | XKAY-00032 | PLUG | |
| 5 | XKAY-00031 | SEAT-SPRING | |
| N6 | XKAY-01084 | SPRING | |
| 7 | XKAY-00029 | SEAT-SPRING | |
| 8 | XKAY-00028 | SPOOL | |
| 9 | XKAY-00027 | STOPPER | |
| 10 | XKAY-01085 | SPRING | |
| 11 | XKAY-00025 | GUIDE-ROD | |
| K12 | XKAY-00657 | O-RING | |
| 13 | XKAY-00658 | RING-SNAP | |
| 14 | XKAY-00660 | ROD-PUSH | |
| 15 | XKAY-00662 | PIN-SPRING | |
| K16 | XKAY-00021 | SEAL | |
| 17 | XKAY-00020 | BALL-STEEL | |
| 18 | XKAY-00019 | SPRING | |
| 19 | XKAY-00068 | PLATE | |
| 20 | XKAY-00018 | RING-SNAP | |
| 21 | XKAY-00017 | PLUG | |
| K22 | XKAY-00664 | O-RING | |
| K23 | XKAY-00067 | SEAL-ROD | |
| K24 | XKAY-00014 | SEAL-DUST | |
| 25 | XKAY-00013 | COVER | |
| 26 | XKAY-00012 | BOLT-SOCKET | |
| 27 | XKAY-00011 | CAM | |
| 28 | XKAY-00010 | BUSHING | |
| 29 | XKAY-00009 | SHAFT-CAM | |
| 30 | XKAY-00101 | SET SCREW | |
| 31 | XKAY-00007 | SCREW-SET | |
| 32 | XKAY-00006 | NUT-HEX | |
| 33 | XKAY-00005 | BELLOWS | |
| 34 | XKAY-00004 | SPACER | |
| K35 | XKAY-00323 | O-RING | |
| K36 | XKAY-00665 | O-RING | |
| 37 | XKAY-00666 | BOLT-SOCKET | |
| N38 | XKAY-00661 | PISTON | |
| K | XKAY-00667 | SEAL KIT |
