- MAIN PUMP
- REGULATOR
- GEAR PUMP
- MAIN CNTL VALVE(1/5, TYPE 1, -#0162)
- MAIN CNTL VALVE(1/5, TYPE 1, #0163-2012)
- MAIN CNTL VALVE(1/5, TYPE 1, #2013-)
- MAIN CONTROL VALVE(1/5, TYPE 2)
- MAIN CNTL VALVE(2/5, TYPE 1, -#0162)
- MAIN CNTL VALVE(2/5, TYPE 1, #0163-2012)
- MAIN CNTL VALVE(2/5, TYPE 1, #2013-)
- MAIN CONTROL VALVE(2/5, TYPE 2)
- MAIN CNTL VALVE(3/5, TYPE 1, -#0162)
- MAIN CNTL VALVE(3/5, TYPE 1, #0163-2012)
- MAIN CNTL VALVE(3/5, TYPE 1, #2013-)
- MAIN CONTROL VALVE(3/5, TYPE 2)
- MAIN CNTL VALVE(4/5, TYPE 1, -#0162)
- MAIN CNTL VALVE(4/5, TYPE 1, #0163-2012)
- MAIN CNTL VALVE(4/5, TYPE 1, #2013-)
- MAIN CONTROL VALVE(4/5, TYPE 2)
- MAIN CNTL VALVE(5/5, TYPE 1, -#0162)
- MAIN CNTL VALVE(5/5, TYPE 1, #0163-2012)
- MAIN CNTL VALVE(5/5, TYPE 1, #2013-)
- MAIN CONTROL VALVE(5/5, TYPE 2)
- SWING MOTOR(TYPE 1, -#2123)
- SWING MOTOR (TYPE 1, #2124-)
- SWING MOTOR (TYPE 2)
- SWING MOTOR (TYPE 3, 4)
- SWING REDUCTION GEAR (TYPE 1)
- SWING REDUCTION GEAR (TYPE 2)
- SWING REDUCTION GEAR (TYPE 3, 4)
- TRAVEL MOTOR(TYPE 1, 1/2, -#0317)
- TRAVEL MOTOR(TYPE 1, 2/2, -#0317)
- TRAVEL REDUCTION GEAR(TYPE 1, -#0317)
- TRAVEL MOTOR(TYPE 2, 1/2, #0318-)
- TRAVEL MOTOR(TYPE 2, 2/2, #0318-)
- TRAVEL REDUCTION GEAR(TYPE 2, #0318-)
- TRAVEL MOTOR(1/2, TYPE 3,4)
- TRAVEL MOTOR(2/2, TYPE 3,4)
- TRAVEL REDUCTION GEAR(TYPE 3,4)
- REMOTE CONTROL LEVER (-#0039)
- REMOTE CONTROL LEVER (#0040-0687)
- REMOTE CONTROL LEVER (TYPE 1, #0688-)
- REMOTE CONTROL LEVER (TYPE 2)
- REMOTE CONTROL LEVER (TYPE 3)
- REMOTE CONTROL PEDAL
- TURNING JOINT
- BOOM CYLINDER
- ARM CYLINDER
- BUCKET CYLINDER
- BUCKET CYLINDER(L/REACH, #0043-1735)
- BUCKET CYLINDER(L/REACH, #1736-)
- SOLENOID VALVE(-#0846)
- SOLENOID VALVE(#0847-)
- BREAKER ASSY(1/3)
- BREAKER ASSY(2/3)
- BREAKER ASSY(3/3)
- BREAKER AUTO GREASE UNIT(OPT)
- BREAKER CENTRAL GREASE SUPPLY UNIT(OPT)

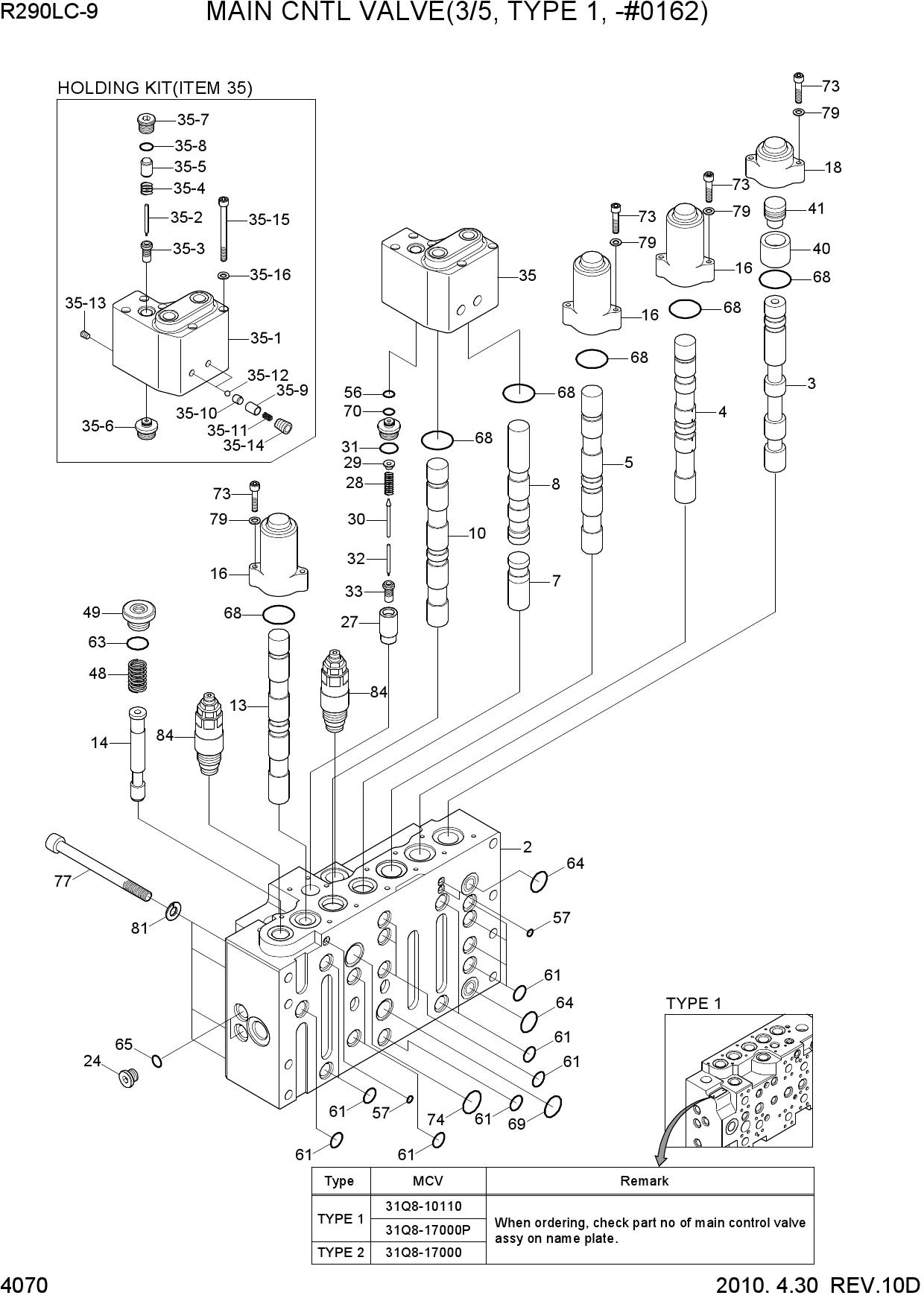

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 MAIN CNTL VALVE(3/5, TYPE 1, -#0162)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N2 | XKBF-01230 | HOUSING-P2 | |
| N3 | XKBF-01231 | SPOOL-STRAIGHT | |
| 4 | XKBF-01232 | SPOOL-TRAVEL | |
| 5 | XKBF-01233 | SPOOL-SWING | |
| 7 | XKBF-01235 | SPOOL-SWING PRIORITY | |
| 8 | XKBF-01236 | SPOOL-BOOM 2 | |
| 10 | XKBF-01238 | SPOOL-ARM 1 | |
| 13 | XKBF-00376 | SPOOL-OPTION | |
| 14 | XKBF-01241 | SPOOL-BC | |
| 16 | XKBF-00379 | COVER B1-PILOT | |
| N18 | XKBF-01243 | COVER A1-PILOT | |
| 24 | XKBF-01252 | PLUG | |
| 27 | XKBF-01253 | POPPET | |
| 28 | XKBF-00906 | SPRING | |
| 29 | XKBF-00911 | GUIDE-PISTON | |
| 30 | XKBF-01254 | POPPET-PILOT | |
| 31 | XKBF-01255 | SEAT-PILOT | |
| 32 | XKBF-00903 | C-RING | |
| 33 | XKBF-00905 | RESTRICTOR-LOCK VLV | |
| 35 | XKBF-01266 | HOLDING KIT-A2 | |
| N35-1 | XKBF-01267 | BLOCK P2-HOLDING | |
| 35-2 | XKBF-00910 | PISTON 1 | |
| 35-3 | XKBF-00907 | GUIDE-POPPET | |
| 35-4 | XKBF-00912 | SPRING 1 | |
| 35-5 | XKBF-00913 | PISTON 2 | |
| 35-6 | XKBF-01248 | PLUG | |
| 35-7 | XKBF-01258 | PLUG | |
| 35-8 | XKBF-01259 | O-RING | |
| 35-9 | XKBF-01260 | SLEEVE | |
| 35-10 | XKBF-01261 | PISTON-CHECK | |
| N35-11 | XKBF-01262 | C-RING | |
| 35-12 | XKBF-01263 | BALL-STEEL | |
| 35-13 | XKBF-00931 | PLUG | |
| 35-14 | XKBF-01264 | PLUG | |
| 35-15 | XKBF-01265 | BOLT-SOCKET | |
| 34-16 | XKBF-00425 | WASHER | |
| 40 | XKBF-01271 | SLEEVE | |
| 41 | XKBF-01272 | PISTON | |
| 48 | XKBF-01273 | SPRING-BC SPOOL | |
| 49 | XKBF-01274 | PLUG-BC SPOOL | |
| 56 | XKBF-00958 | O-RING | |
| 57 | XKBF-00937 | O-RING | |
| 61 | XKBF-00989 | O-RING | |
| 63 | XKBF-01280 | O-RING | |
| 64 | XKBF-01281 | O-RING | |
| 65 | XKBF-01282 | O-RING | |
| 66 | XKBF-01283 | O-RING | |
| 68 | XKBF-00416 | O-RING | |
| 69 | XKBF-00417 | O-RING | |
| 70 | XKBF-00962 | RING-BACK UP | |
| 73 | XKBF-01284 | BOLT-SOCKET | |
| 74 | XKBF-01285 | O-RING | |
| 77 | XKBF-01288 | .BOLT-SOCKET | |
| 79 | XKBF-00425 | WASHER | |
| 80 | XKBF-00427 | WASHER-SPRING | |
| 84 | XKBF-01293 | RELIEF VALVE-OVERLOAD |
