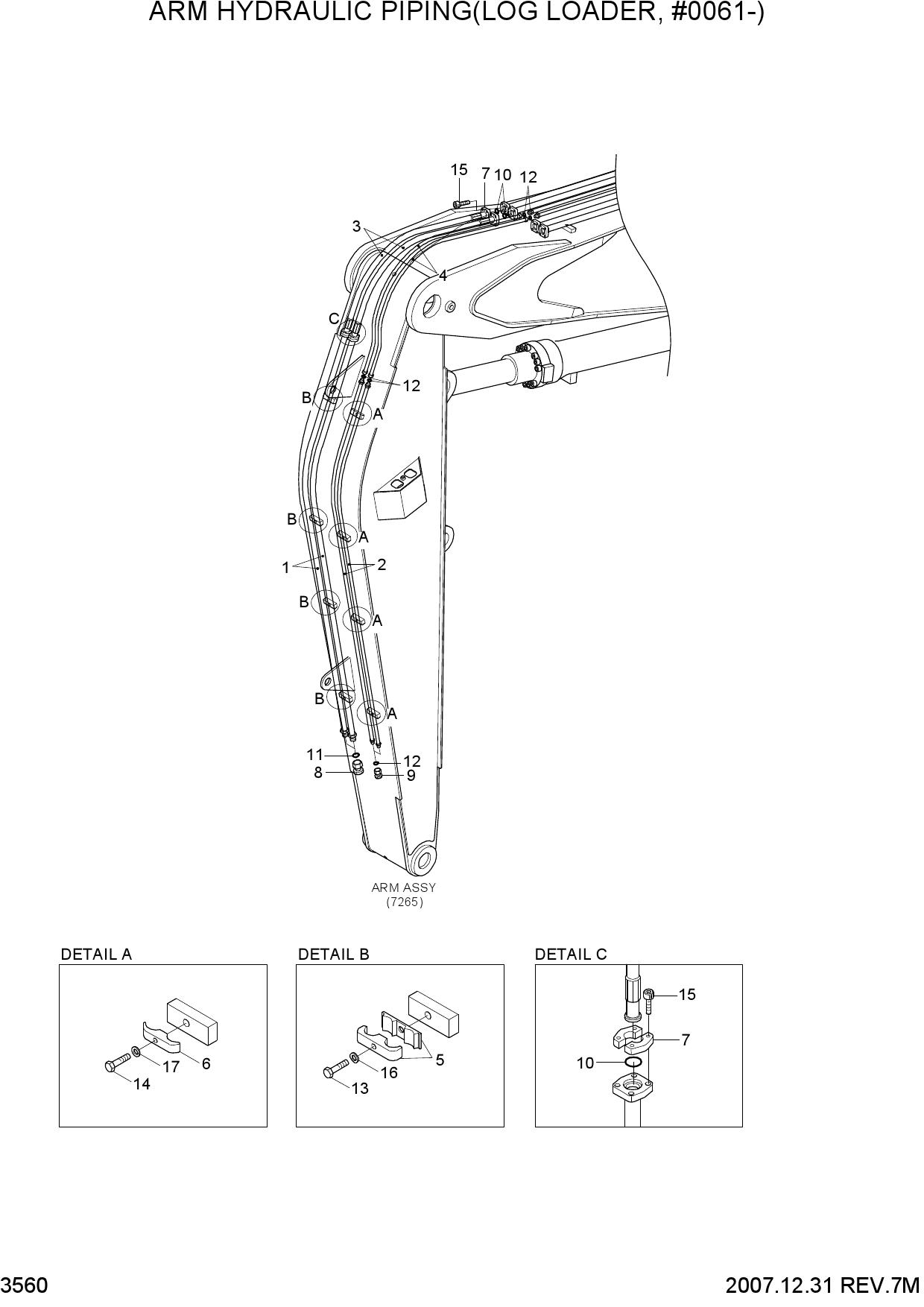

Запчасти для гусеничных экскаваторов Hyundai R290LC-7A ARM HYDRAULIC PIPING(LOG LOADER, #0061-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31W7-60010 | PIPE WA | |
| 2 | 31W7-60020 | PIPE WA | |
| 3 | 31W6-60031 | HOSE ASSY | |
| 4 | 31W6-60040 | HOSE ASSY | |
| 5 | 31N6-50310 | CLAMP ASSY | |
| 6 | 31M6-65100 | CLAMP | |
| 7 | 31E9-01320 | FLANGE-SPLIT | |
| 8 | X710-100106 | CAP-HYD,ORFS | |
| 9 | X710-100104 | CAP-DUST | |
| 10 | Y171-024004 | O-RING | |
| 11 | S621-021001 | O-RING | |
| 12 | S621-014001 | O-RING | |
| 13 | S017-16080D | BOLT-HEX | |
| 14 | S017-100506 | BOLT-HEX | |
| 15 | S109-100306 | BOLT-SOCKET | |
| 16 | S411-160006 | WASHER-SPRING | |
| 17 | S411-100006 | WASHER-SPRING |
