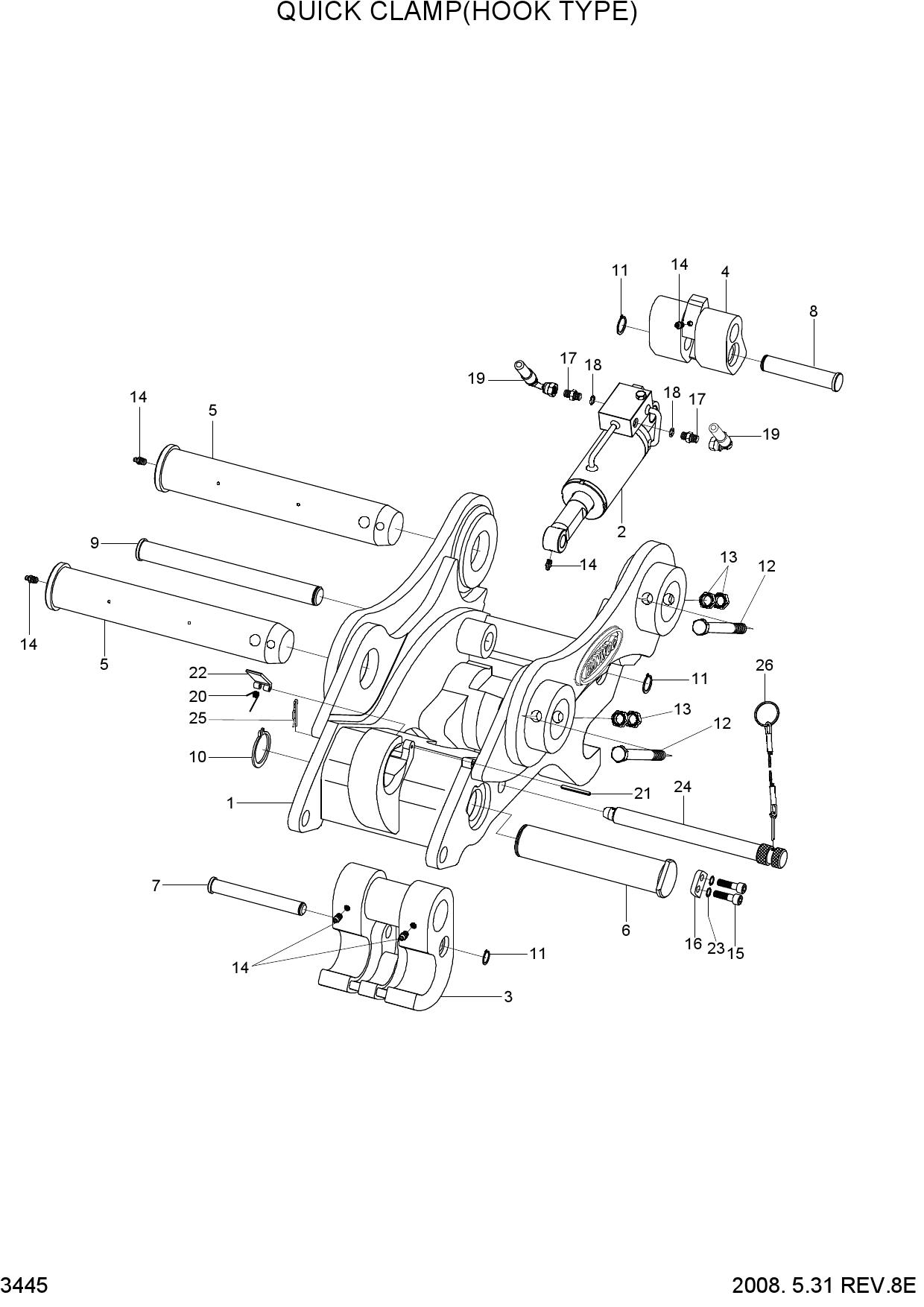

Запчасти для гусеничных экскаваторов Hyundai R290LC-7A QUICK CLAMP (HOOK TYPE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N8-95710 | QUICK CLAMP ASSY | |
| * | 31N8-96710 | QUICK CLAMP ASSY | |
| 1 | XKBP-00262 | BODY | |
| 2 | XKBP-00125 | CYLINDER ASSY | |
| 3 | XKBP-00126 | HOOK ASSY | |
| 4 | XKBP-00127 | LOCK ASSY | |
| 5 | XKBP-00128 | PIN-BRACKET | |
| 6 | XKBP-00259 | JOINT PIN | |
| 7 | XKBP-00130 | PIN-JOINT | |
| 8 | XKBP-00131 | PIN-JOINT | |
| 9 | XKBP-00260 | JOINT PIN | |
| 10 | XKBP-00261 | LOCK PIN | |
| 11 | XKBP-00133 | RING-SNAP | |
| 12 | XKBP-00134 | BOLT-HEX | |
| 13 | XKBP-00135 | NUT-HEX | |
| 14 | XKBP-00015 | NIPPLE-GREASE | |
| 15 | XKBP-00166 | BOLT-HEX | |
| 16 | XKBP-00137 | PLATE-COVER | |
| 17 | XKBP-00138 | ADAPTER | |
| 18 | XKBP-00138 | ADAPTER | |
| 19 | XKBP-00140 | HOSE | |
| 20 | XKBP-00263 | SPRING | |
| 21 | XKBP-00022 | PIN-SPRING | |
| 22 | XKBP-00023 | STOPPER | |
| 23 | XKBP-00141 | WASHER-SPRING | |
| 24 | XKBP-00264 | PIN-STOPPER | |
| 25 | XKBP-00243 | PIN-SNAP | |
| 26 | XKBP-00265 | WIRE ASSY |
