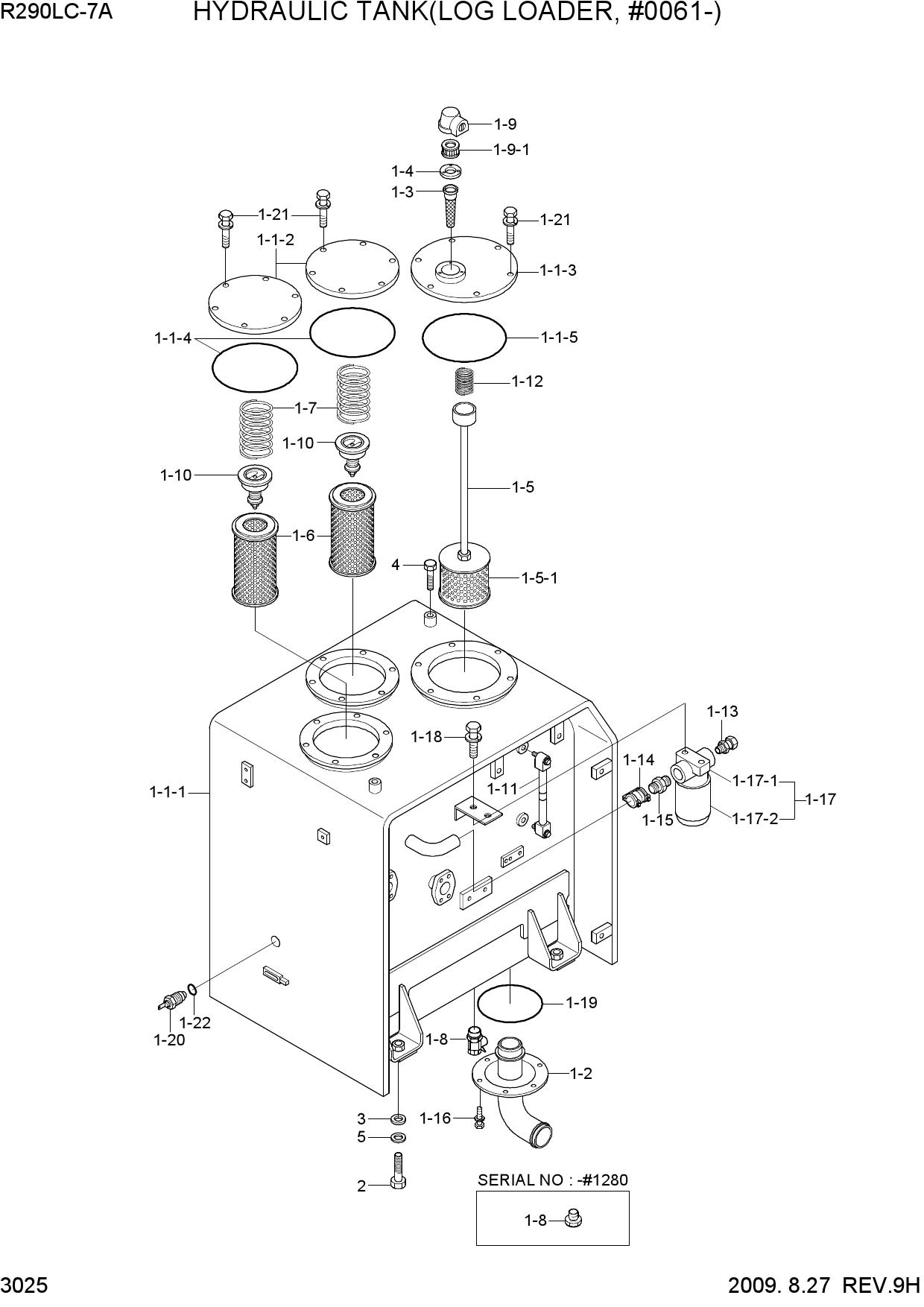

Запчасти для гусеничных экскаваторов Hyundai R290LC-7A HYDRAULIC TANK(LOG LOADER, #0061-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31W7-01110 | HYD TANK ASSY | |
| 1-1 | 31W7-01100 | HYD TANK SUB ASSY | |
| 1-1-1 | 31W7-01010 | HYD TANK WA | |
| 1-1-2 | 31N4-01110 | COVER-RETURN | |
| 1-1-3 | 31N8-01280 | COVER ASSY-SUCTION | |
| 1-1-4 | S632-170001 | O-RING | |
| 1-1-5 | S632-220001 | O-RING | |
| 1-2 | 31N8-01271 | PIPE-SUCTION | |
| 1-3 | 31EH-00090 | STRAINER | |
| 1-4 | S602-065004 | RING-RETAINING | |
| 1-5 | 31N8-01200 | STRAINER ASSY | |
| 1-5-1 | E131-0214 | ELEMENT | |
| 1-6 | 31N8-01510 | ELEMENT ASSY | |
| 1-7 | 31E9-1020 | SPRING-RETURN | |
| 1-8 | P220-110104 | PLUG-HEX | |
| 1-8 | 31Q6-01360 | VALVE-DRAIN | |
| 1-9 | 31NA-00040 | AIR BREATHER | |
| 1-9-1 | 31EH-00480 | ELEMENT | |
| 1-10 | E131-0256 | VALVE-BYPASS | |
| 1-11 | E131-0473 | GAUGE-LEVEL | |
| 1-12 | E131-0594 | SPRING | |
| 1-13 | X500-110019 | CONNECTOR-ORFS | |
| 1-14 | E131-0671 | COUPLING | |
| 1-15 | 31N8-01521 | FITTING | |
| 1-16 | S037-103026 | BOLT-W/WASHER | |
| 1-17 | 31N8-01350 | FILTER-DRAIN | |
| 1-17-1 | 31N8-01370 | HEAD-DRAIN FILTER | |
| 1-17-2 | 31N8-01360 | CARTRIDGE-DRAIN FILTER | |
| 1-18 | S037-102026 | BOLT-W/WASHER | |
| 1-19 | S632-150001 | O-RING | |
| 1-20 | 21EN-40100 | SENDER-TEMP | |
| 1-21 | S037-102526 | BOLT-W/WASHER | |
| 1-22 | 21EA-50260 | PACKING-TEMP SW | |
| 2 | S017-20050D | BOLT-HEX | |
| 3 | 91E6-60200 | WASHER-HARDENED | |
| 4 | S017-120156 | BOLT-HEX | |
| 5 | 31N8-01300 | SHIM(1.0T) |
