- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 1, #0552-)
- PILOT HYD PIPING(CONTROL 2, #0552-)
- PILOT HYD PIPING(CONTROL 3, #0552-)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 1)
- PILOT HYD PIPING(BASE 1, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 2, CLUSTER TYPE 2)
- PILOT HYD PIPING(BASE 3, CLUSTER TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 1)
- TRAVEL HYD PIPING(HIGH WALKER, TYPE 2)
- TRAVEL HYD PIPING(T/MOTOR TYPE 3)
- TRAVEL HYD PIPING(HIGH WALKER, TYPE 4,5)
- TRAVEL HYD PIPING(T/MOTOR TYPE 6)
- BOOM HYD PIPING(5.85M, STD)
- BOOM GREASE LUB SYSTEM(5.85M, STD)
- QUICK CLAMP PIPING
- QUICK CLAMP(CLOSE TYPE 1, -#0635)
- QUICK CLAMP(CLOSE TYPE 2, -#0635)
- QUICK CLAMP(HOOK TYPE 1, -#0635)
- QUICK CLAMP(HOOK TYPE 2, -#0635)
- QUICK CLAMP(CLOSE TYPE, #0636-)
- QUICK CLAMP(HOOK TYPE, #0636-)
- ARM HYDRAULIC PIPING
- ARM HYDRAULIC PIPING(W/COLD KIT, #0008-)
- D/ACT MAIN PIPING KIT 1(CLUSTER TYPE 1)
- D/ACT MAIN PIPING KIT 2(CLUSTER TYPE 1)
- D/ACT MAIN PIPING KIT 3(CLUSTER TYPE 2)
- ATTACH PIPING KIT(S & D/ACTING)
- SINGLE PEDAL(DOUBLE ACTING)
- S/ACT MAIN PIPING KIT(CLUSTER TYPE 1)
- S/ACT MAIN PIPING KIT(CLUSTER TYPE 2)

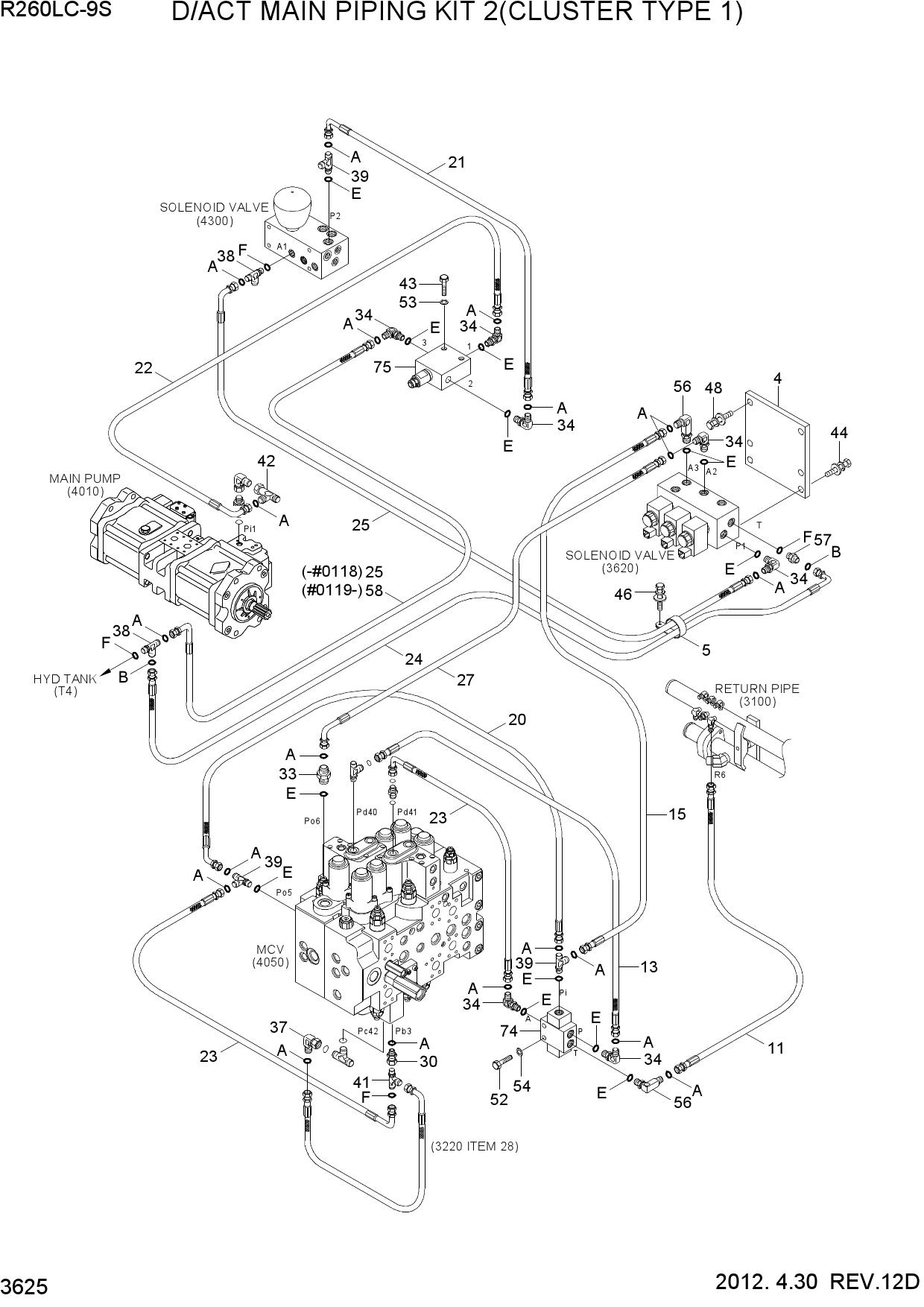

Запчасти для гусеничных экскаваторов Hyundai R260LC-9S D/ACT MAIN PIPING KIT 2(CLUSTER TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q6-90450 | BRACKET-SOL VALVE | |
| 5 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 11 | P910-042014 | HOSE ASSY-ORFS 0X0 | |
| 13 | P910-042021 | HOSE ASSY-ORFS 0X0 | |
| 15 | P910-042027 | HOSE ASSY-ORFS 0X0 | |
| 20 | P920-042015 | HOSE ASSY-ORFS 0X45 | |
| 21 | P930-042007 | HOSE ASSY-ORFS 0X90 | |
| 21 | P930-042009 | HOSE ASSY-ORFS 0X90 | |
| 22 | P930-042014 | HOSE ASSY-ORFS 0X90 | |
| 22 | P930-042018 | HOSE ASSY-ORFS 0X90 | |
| 23 | P930-042020 | HOSE ASSY-ORFS 0X90 | |
| 24 | P930-062040 | HOSE ASSY-ORFS 0X90 | |
| 25 | P930-042035 | HOSE ASSY-ORFS 0X90 | |
| 25 | P930-042035 | HOSE ASSY-ORFS 0X90 | |
| 27 | P930-042044 | HOSE ASSY-ORFS 0X90 | |
| 30 | 31EK-30130 | CONNECTOR-LONG | |
| 33 | X500-110001 | CONNECTOR-ORFS | |
| 34 | X520-110001 | ELBOW-90,ORFS | |
| 37 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 38 | X820-065251 | TEE-R/TYPE,ORFS | |
| 39 | X820-045151 | TEE-R/TYPE,ORFS | |
| 41 | 31N6-24130 | TEE-SHUTTLE | |
| 42 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 43 | S015-060456 | BOLT-HEX | |
| 44 | S035-082026 | BOLT-W/WASHER | |
| 46 | S037-102026 | BOLT-W/WASHER | |
| 48 | S037-122526 | BOLT-W/WASHER | |
| 52 | S015-080506 | BOLT-HEX | |
| 53 | S403-06200B | WASHER-PLAIN | |
| 54 | S403-08200B | WASHER-PLAIN | |
| 56 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 57 | X500-110002 | CONNECTOR-ORFS | |
| 58 | P930-042039 | HOSE ASSY-ORFS 0X90 | |
| 74 | 31Q6-20150 | VALVE-SELECT | |
| 75 | 31Q6-20130 | EPPR VALVE-BREAKER | |
| 75 | 31Q6-20131 | EPPR VALVE-BREAKER | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| E | S631-011004 | O-RING | |
| F | S631-014004 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R260LC-9S в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
