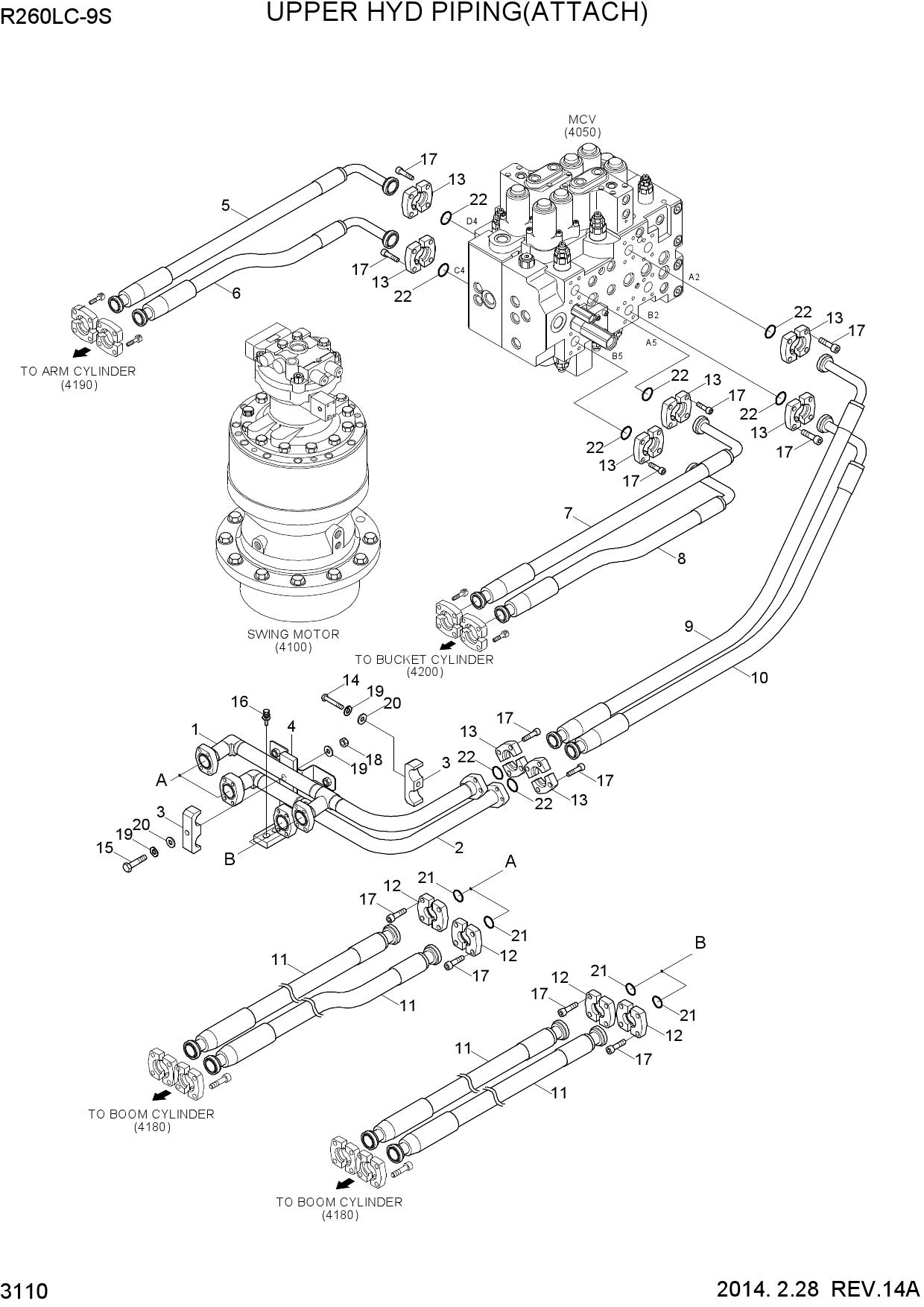

Запчасти для гусеничных экскаваторов Hyundai R260LC-9S UPPER HYD PIPING(ATTACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31Q7-11310 | PIPE WA | |
| 2 | 31Q7-11320 | PIPE WA | |
| 3 | 31Q6-11330 | CLAMP | |
| 4 | 31Q8-11302 | BRACKET | |
| 5 | 31Q7-13310 | HOSE ASSY | |
| 5 | 31Q7-13311 | HOSE ASSY | |
| 5 | 31Q7-13410 | HOSE ASSY 0X90 | |
| 5 | 31Q7-13411 | HOSE ASSY | |
| 6 | 31Q7-13320 | HOSE ASSY | |
| 6 | 31Q7-13321 | HOSE ASSY | |
| 6 | 31Q7-13420 | HOSE ASSY 0X90 | |
| 6 | 31Q7-13421 | HOSE ASSY | |
| 7 | 31Q7-13330 | HOSE ASSY | |
| 7 | 31Q7-13331 | HOSE ASSY | |
| 7 | 31Q7-13430 | HOSE ASSY 0X90 | |
| 7 | 31Q7-13431 | HOSE ASSY | |
| 8 | 31Q7-13340 | HOSE ASSY | |
| 8 | 31Q7-13441 | HOSE ASSY | |
| 9 | 31Q7-13350 | HOSE ASSY | |
| 10 | 31Q7-13360 | HOSE ASSY | |
| 11 | P684-128317 | HOSE ASSY-FLG 0X0 | |
| 11 | P683-128317 | HOSE ASSY-FLG 0X0 | |
| 11 | 31Q7-15910 | HOSE ASSY-FLG(HI-GRADE) | |
| 11 | 31Q7-13470 | HOSE ASSY 0X90 | |
| 11 | 31Q7-13471 | HOSE ASSY | |
| 12 | P173-120102 | FLANGE-HYD,SPLIT | |
| 13 | P173-160104 | FLANGE-HYD,SPLIT | |
| 14 | S017-120706 | BOLT-HEX | |
| 15 | S017-120956 | BOLT-HEX | |
| 16 | S037-123026 | BOLT-W/WASHER | |
| 17 | S109-100306 | BOLT-SOCKET | |
| 18 | S205-12100B | NUT-HEX | |
| 19 | S403-12200B | WASHER-PLAIN | |
| 20 | S411-120006 | WASHER-SPRING | |
| 21 | Y171-019004 | O-RING | |
| 21 | 31Q8-01900 | O-RING | |
| 22 | Y171-024004 | O-RING | |
| 22 | 31Q8-02400 | O-RING |
Для поиска необходимых позиций выберите нужный раздел каталога запасных
частей Hyundai Чтобы купить запчасти для R260LC-9S в компании ООО
«ЮКОЗ ТРЕИД» позвоните нам по телефонам указанным в разделе Контакты или
отправьте сообщение через форму запроса в ближайший к вам филиал.
