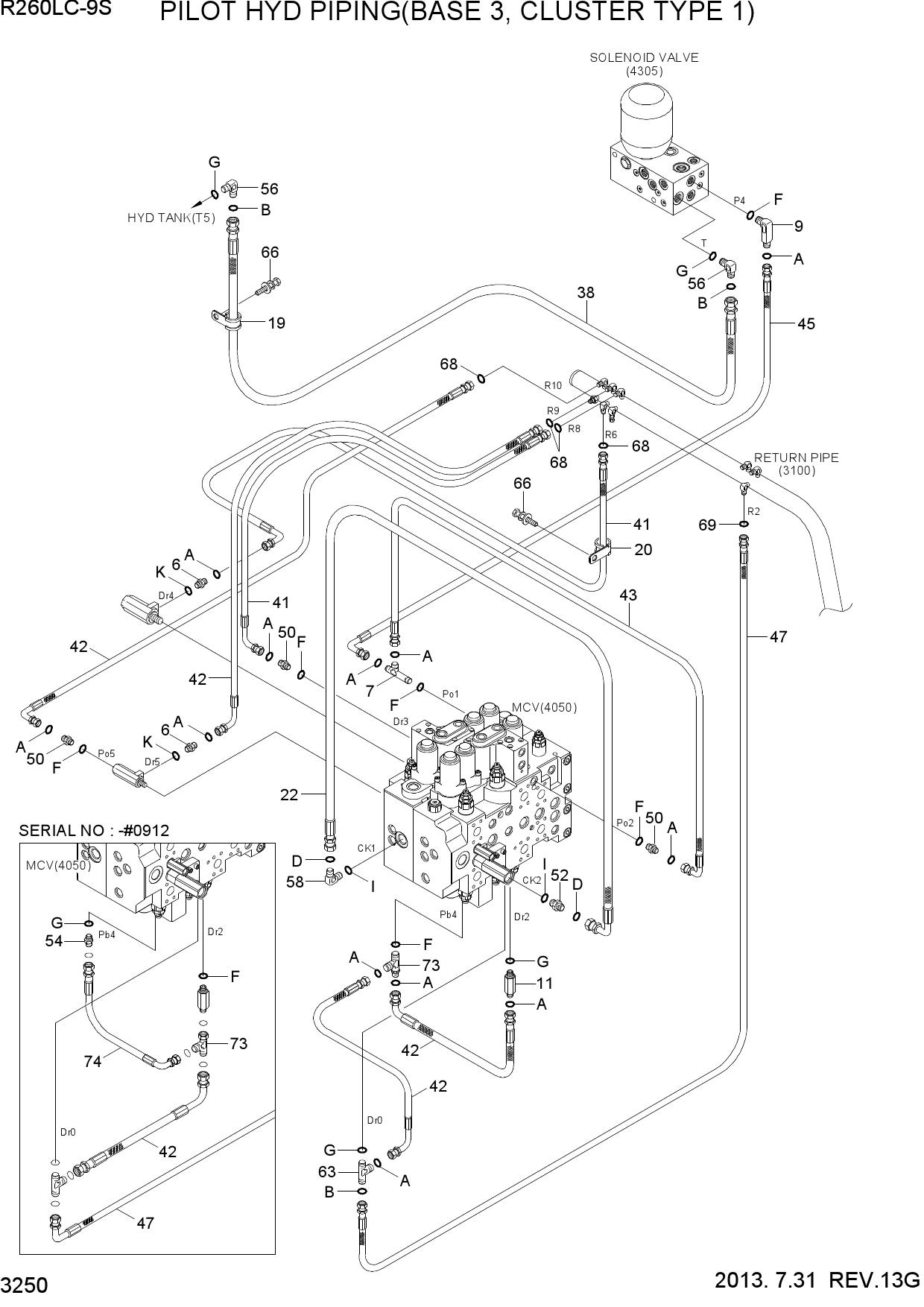

Запчасти для гусеничных экскаваторов Hyundai R260LC-9S PILOT HYD PIPING(BASE 3, CLUSTER TYPE 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 31Q6-20210 | CONNECTOR-ORFS | |
| 7 | 31N4-22150 | TEE-LONG,ORFS | |
| 9 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 11 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 19 | 31L7-10210 | CLAMP-TUBE INS | |
| 20 | 31L7-10240 | CLAMP-TUBE INS | |
| 22 | 31Q6-20220 | HOSE ASSY-ORFS | |
| 38 | X400-062032 | HOSE ASSY-SYNF,ORFS | |
| 38 | X400-062036 | HOSE ASSY-SYNF,ORFS | |
| 41 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 45 | X420-042043 | HOSE ASSY-ORFS 0X90 | |
| 47 | P930-062014 | HOSE ASSY-ORFS 0X90 | |
| 47 | P910-062016 | HOSE ASSY-ORFS 0X0 | |
| 50 | X500-110001 | CONNECTOR-ORFS | |
| 52 | X500-110004 | CONNECTOR-ORFS | |
| 54 | X500-110013 | CONNECTOR-ORFS | |
| 56 | X520-110002 | ELBOW-90,ORFS | |
| 58 | X520-110004 | ELBOW-90,ORFS | |
| 63 | X820-065152 | TEE-R/TYPE,ORFS | |
| 66 | S037-102026 | BOLT-W/WASHER | |
| 68 | S621-011001 | O-RING | |
| 69 | S621-012001 | O-RING | |
| 73 | X840-515151 | TEE-R/TYPE,ORFS | |
| 73 | X820-065151 | TEE-R/TYPE,ORFS | |
| 74 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| A | S621-011001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| D | S621-018001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| G | S631-014004 | O-RING | |
| I | S631-024004 | O-RING | |
| K | S631-008004 | O-RING |
