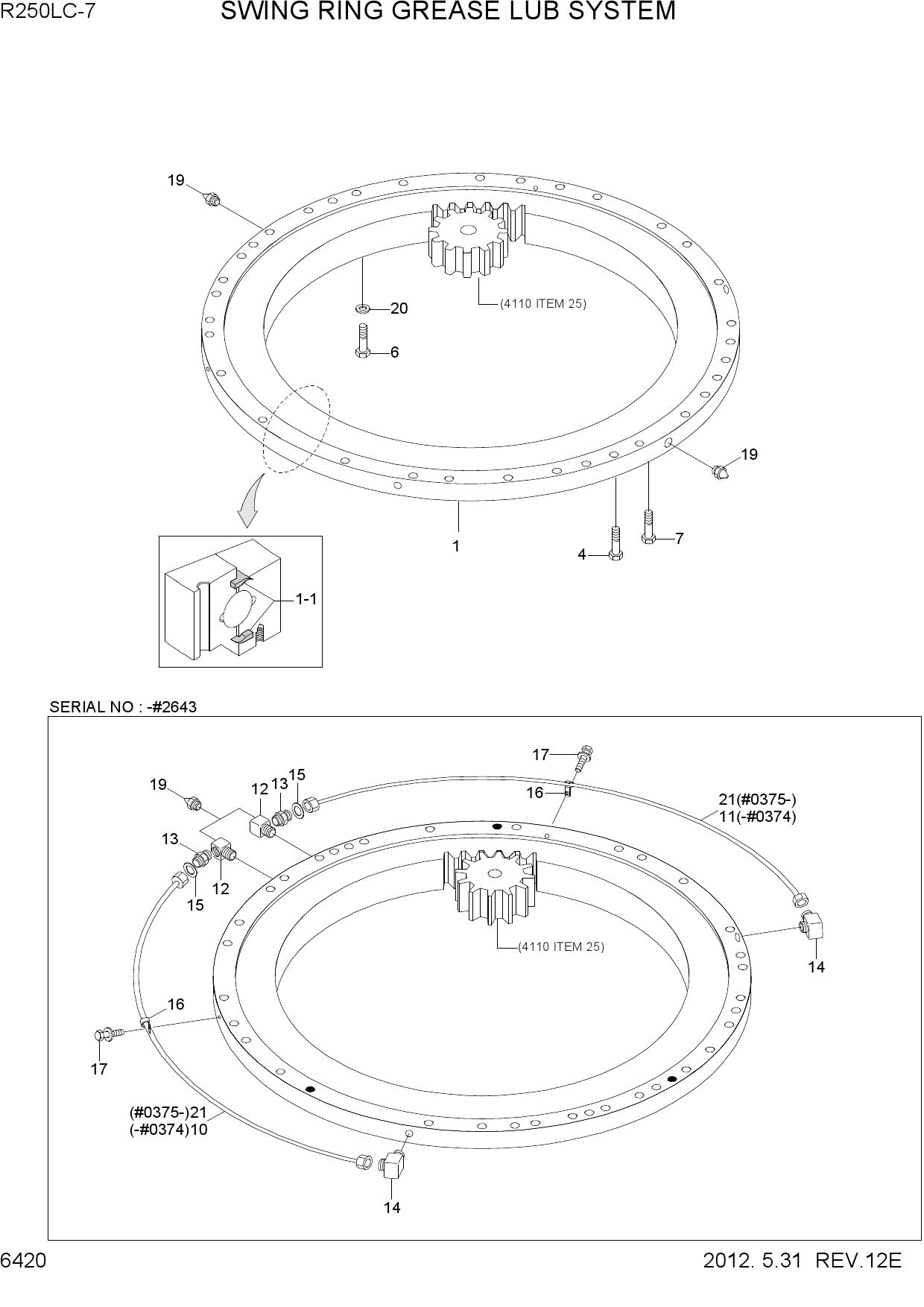

Запчасти для гусеничных экскаваторов Hyundai R250LC-7 SWING RING GREASE LUB SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 81EN-00051 | SWING BEARING | |
| 1 | 81EN-00052 | SWING BEARING | |
| 1 | 81EN-00052BG | SWING BEARING | |
| 1 | 81EN-00053BG | SWING BEARING | |
| 1-1 | 82EN-10040 | SEAL-SWING BEARING | |
| 1-1 | 82EN-10041 | SEAL-SWING BEARING | |
| 4 | 81N7-00010 | BOLT-REAMER | |
| 4 | 81N7-00011 | BOLT-REAMER | |
| 6 | S017-24070D | BOLT-HEX | |
| 6 | S017-240706 | BOLT-HEX | |
| 7 | S017-22120D | BOLT-HEX | |
| 7 | S017-221206 | BOLT-HEX | |
| 10 | 81N7-00030 | PIPE-COMP/LH | |
| 11 | 81N7-00040 | PIPE-COMP/RH | |
| 12 | 31EH-00610 | FITTING | |
| 12 | 81N6-00110 | ELBOW-90 | |
| 13 | E131-0626 | CONNECTOR | |
| 13 | 81N6-00120 | CONNECTOR | |
| 14 | E231-0349 | ELBOW-90 | |
| 14 | 81N6-00130 | ELBOW-90 | |
| 15 | P391-040000 | WASHER-COPPER | |
| 16 | 81EM-00650 | CLAMP | |
| 16 | S543-120002 | CLAMP-TUBE | |
| 17 | S017-100162 | BOLT-HEX | |
| 17 | S037-101556 | BOLT-W/WASHER | |
| 18 | S411-100002 | WASHER-SPRING | |
| 19 | S651-810002 | NIPPLE-GREASE | |
| 19 | S651-810002 | NIPPLE-GREASE | |
| 20 | S441-240002 | WASHER-HARDENED | |
| 21 | 81N6-00240 | TUBE-NYLON |
