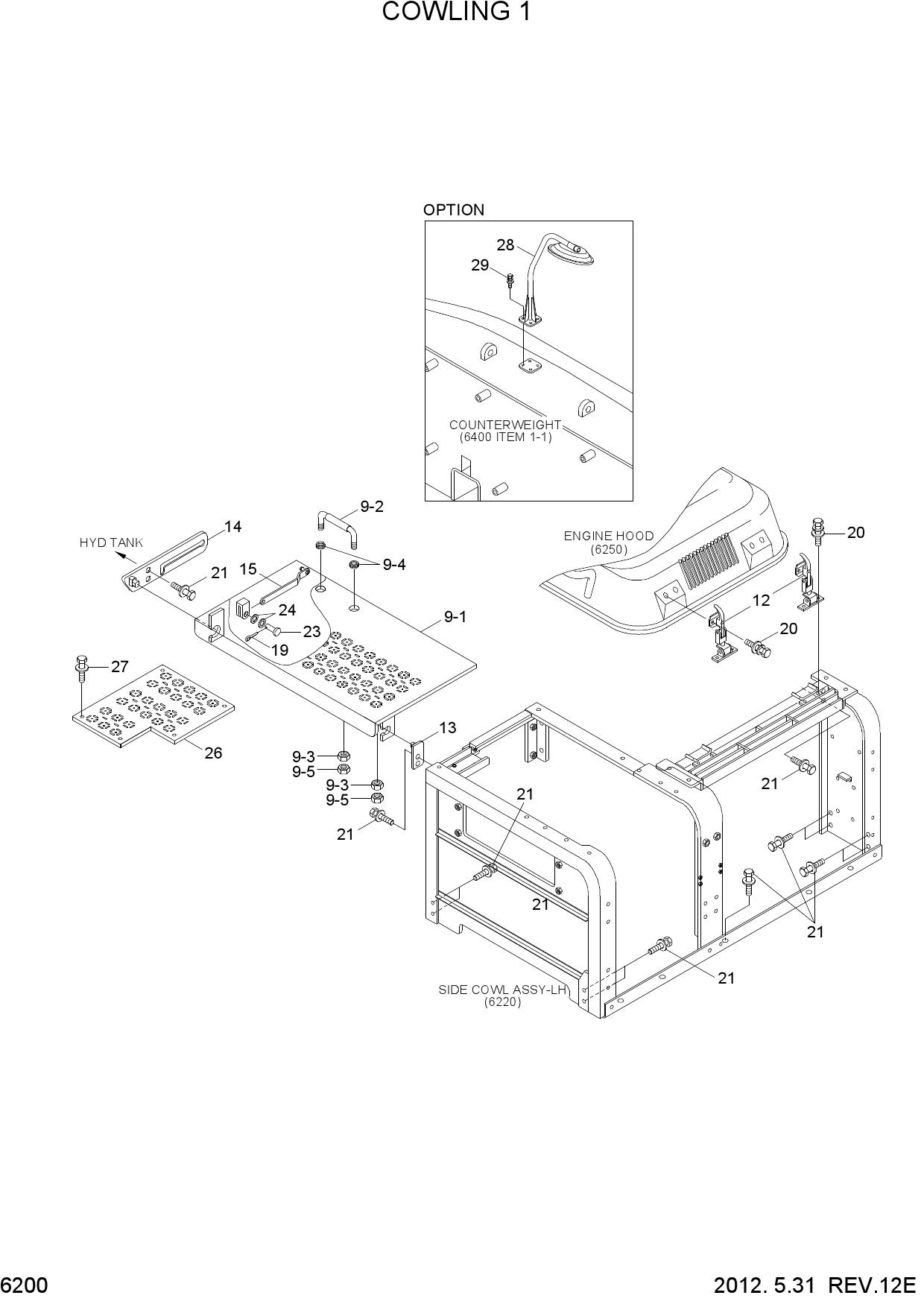

Запчасти для гусеничных экскаваторов Hyundai R250LC-7 COWLING 1
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | 71N7-59100 | HOOD ASSY-MCV | |
| 9 | 71N7-59200 | HOOD ASSY-MCV | |
| 9-1 | 71N7-55200 | HOOD WA-MCV | |
| 9-1 | 71N7-59210 | HOOD WA-MCV | |
| 9-2 | 71E9-54150 | HANDLE | |
| 9-3 | S205-161002 | NUT-HEX | |
| 9-3 | S205-161002 | NUT-HEX | |
| 9-4 | S681-190400 | GROMMET | |
| 9-5 | S275-160002 | NUT-SELF LOCKING | |
| 12 | 71N6-56400 | CATCH ASSY | |
| 12 | 71N6-56400BG | CATCH ASSY | |
| 13 | 71N6-55210 | BRACKET-MCV HOOD,LH | |
| 14 | 71N6-55221 | BRACKET-MCV HOOD,RH | |
| 15 | 71N6-56301 | STAY-MCV HOOD | |
| 19 | S501-080002 | PIN-SELF LOCKING | |
| 20 | S035-082526 | BOLT-W/WASHER | |
| 21 | S037-122556 | BOLT-W/WASHER | |
| 23 | S491-080252 | PIN-CLEVIS | |
| 24 | S403-08200B | WASHER-PLAIN | |
| 26 | 72N6-49200 | FOOT BOARD-F/TANK | |
| 27 | S037-121556 | BOLT-W/WASHER | |
| 28 | 72N6-59200 | STAY-MIRROR | |
| 29 | S037-123056 | BOLT-W/WASHER |
