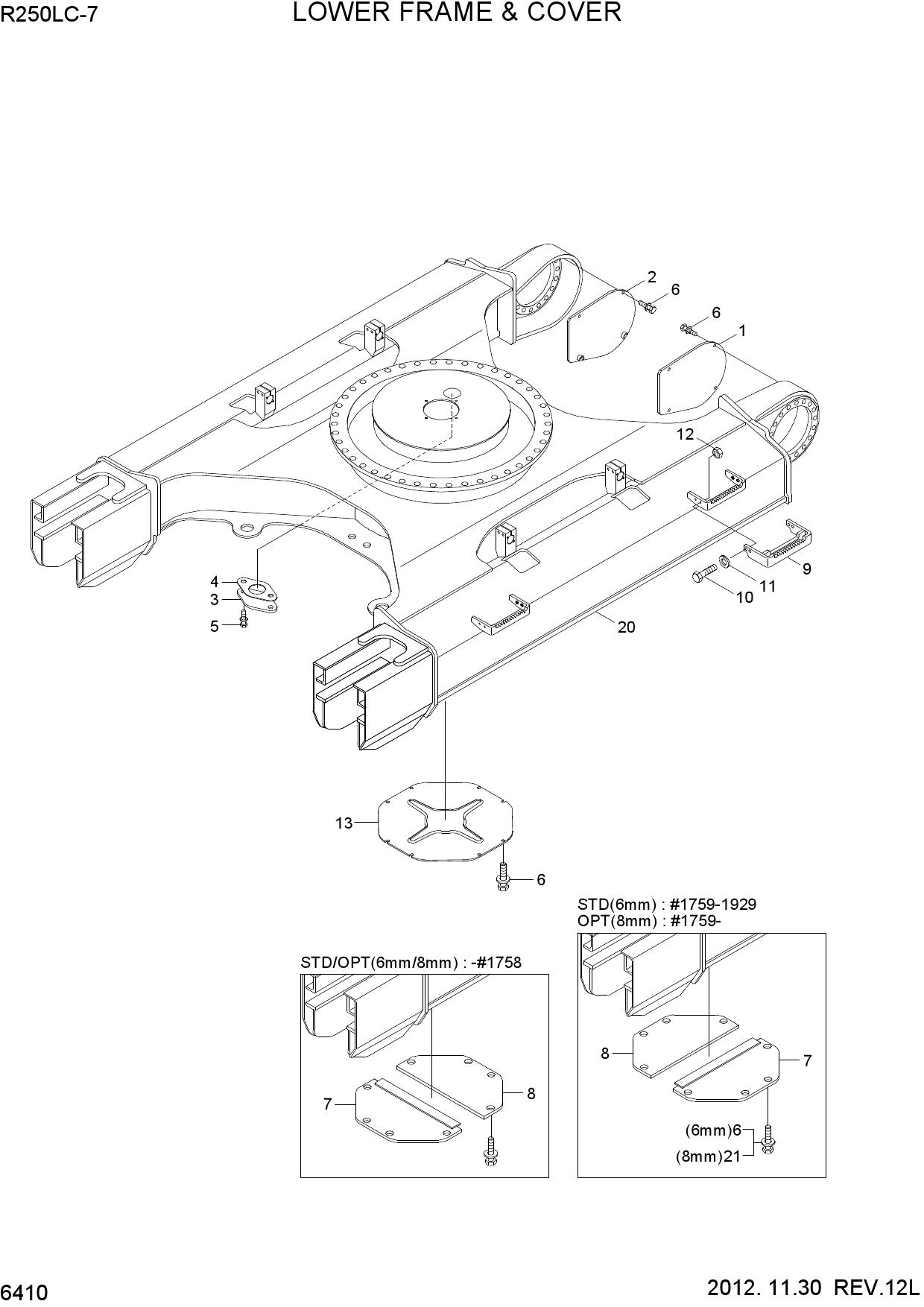

Запчасти для гусеничных экскаваторов Hyundai R250LC-7 LOWER FRAME & COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51N7-11110 | COVER WA-T/MOTOR,LH | |
| 1 | 51N7-11110BG | COVER WA-T/MOTOR,LH | |
| 2 | 51N7-11120 | COVER WA-T/MOTOR,RH | |
| 2 | 51N7-11120BG | COVER WA-T/MOTOR,RH | |
| 3 | 41N6-10100 | COVER | |
| 4 | 41E9-1306 | SEAL | |
| 5 | S037-102052 | BOLT-W/WASHER | |
| 5 | S037-102052 | BOLT-W/WASHER | |
| 6 | S037-123556 | BOLT-W/WASHER | |
| 7 | 51N6-11211 | COVER-BOTTOM(A) | |
| 7 | 51N6-11211BG | COVER-BOTTOM(A) | |
| 7 | 51N6-11230BG | COVER-BOTTOM(A) | |
| 8 | 51N6-11221 | COVER-BOTTOM(B) | |
| 8 | 51N6-11221BG | COVER-BOTTOM(B) | |
| 8 | 51N6-11240BG | COVER-BOTTOM(B) | |
| 9 | 51N6-02640 | BOARD-FOOT | |
| 9 | 51N6-02640BG | BOARD-FOOT | |
| 9 | 51N6-02650 | BOARD-FOOT | |
| 9 | 51N6-02650BG | BOARD-FOOT | |
| 9 | 51N6-02660 | BOARD-FOOT | |
| 9 | 51N6-02660BG | BOARD-FOOT | |
| 10 | S017-120502 | BOLT-HEX | |
| 11 | S441-120006 | WASHER-HARDENED | |
| 12 | S207-121002 | NUT-HEXAGON HEAD | |
| 13 | 51Q6-11210BG | COVER-BOTTOM(A) | |
| 20 | 51N7-00011 | LOWER FRAME WA | |
| 20 | 51N7-00011BG | LOWER FRAME WA | |
| 20 | 51N7-05010 | LOWER FRAME WA | |
| 20 | 51N7-05010BG | LOWER FRAME WA | |
| 20 | 56N7-06010 | LOWER FRAME WA | |
| 20 | 56N7-06010BG | LOWER FRAME WA | |
| 21 | S037-124556 | BOLT-W/WASHER |
