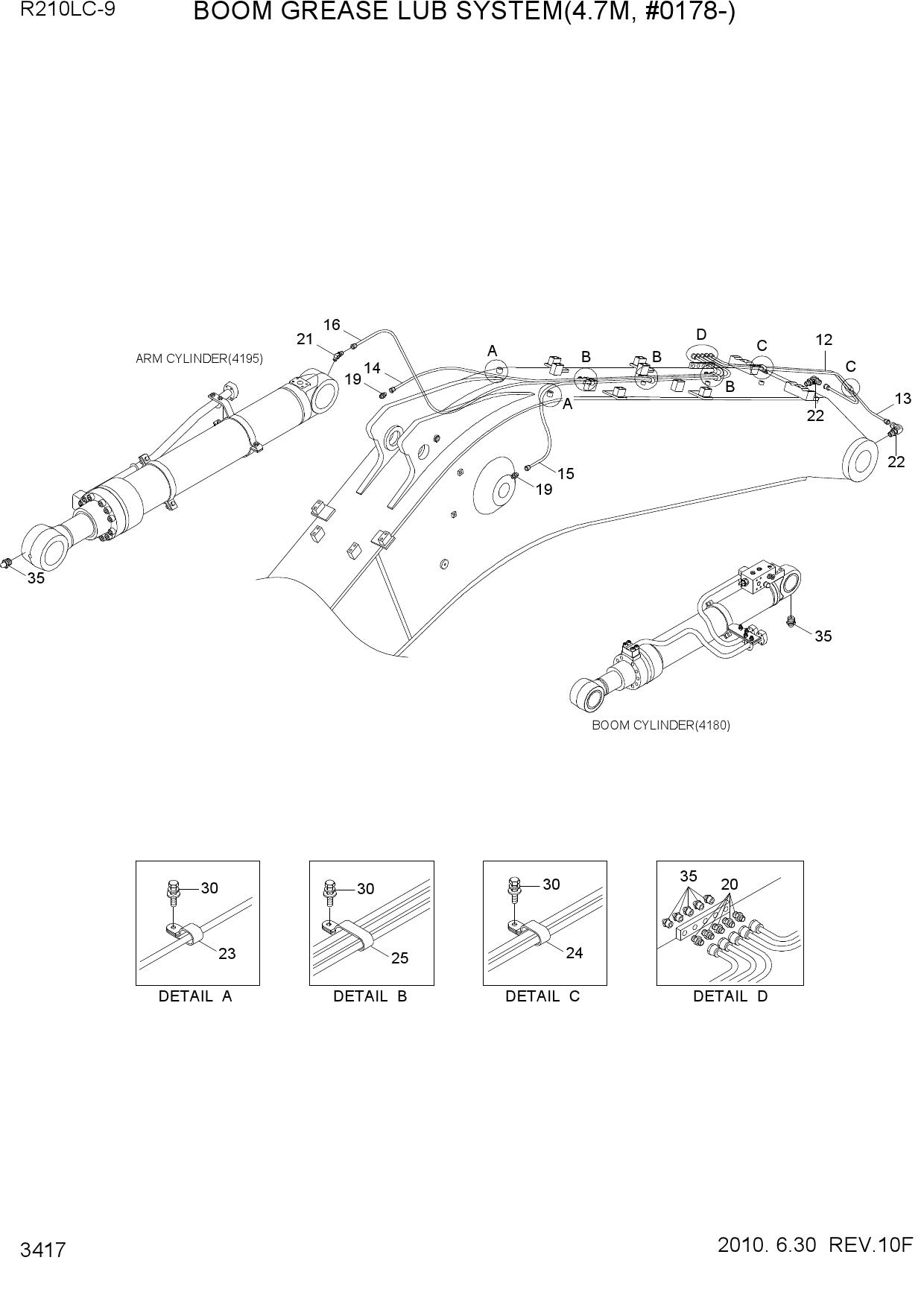

Запчасти для гусеничных экскаваторов Hyundai R210LC-9 BOOM GREASE LUB SYSTEM(4.7M, #0178-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 12 | P840-042020 | HOSE ASSY-SYN THD | |
| 13 | P840-042021 | HOSE ASSY-SYN THD | |
| 14 | P840-042044 | HOSE ASSY-SYN THD | |
| 15 | P840-042045 | HOSE ASSY-SYN THD | |
| 16 | P840-042051 | HOSE ASSY-SYN THD | |
| 19 | P010-430011 | CONNECTOR | |
| 20 | 31QA-50200 | CONNECTOR | |
| 21 | E231-0207 | ELBOW-45 | |
| 22 | 31NB-50280 | ELBOW-90 | |
| 23 | 31Q6-50370 | CLAMP-HOSE | |
| 24 | 31Q6-50380 | CLAMP-HOSE | |
| 25 | 31Q6-50390 | CLAMP-HOSE | |
| 30 | S035-082026 | BOLT-W/WASHER | |
| 35 | S651-810002 | NIPPLE-GREASE |
