- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE, MCV TYPE 1)
- UPPER HYD PIPING(BASE, MCV TYPE 2)
- UPPER HYD PIPING(ATTACH, MCV TYPE 1)
- UPPER HYD PIPING(ATTACH, MCV TYPE 2)
- UPPER HYD PIPING(TRAVEL, MCV TYPE 1)
- UPPER HYD PIP(TRAVEL, #0469-, MCV TYPE2)
- PILOT HYD PIPING(CONTROL 1, MCV TYPE 1)
- PILOT HYD PIPING(CONTROL 2, MCV TYPE 1)
- PILOT HYD PIPING(CONTROL 3, MCV TYPE 1)
- PILOT HYD PIP(CNTL 1, #0469-, MCV TYPE2)
- PILOT HYD PIP(CNTL 2, #0469-, MCV TYPE2)
- PILOT HYD PIP(CNTL 3, #0469-, MCV TYPE2)
- PILOT HYD PIPING(CNTL 1, PATTERN CHANGE)
- PILOT HYD PIPING(CNTL 2, PATTERN CHANGE)
- PILOT HYD PIPING(CNTL 3, PATTERN CHANGE)
- PILOT HYD PIPING(BASE 1, MCV TYPE 1)
- PILOT HYD PIPING(BASE 2, MCV TYPE 1)
- PILOT HYD PIPING(BASE 3, MCV TYPE 1)
- PILOT HYD PIPING(BASE1,#0469-,MCV TYPE2)
- PILOT HYD PIPING(BASE2,#0469-,MCV TYPE2)
- PILOT HYD PIPING(BASE3,#0469-,MCV TYPE2)
- TRAVEL HYD PIPING(T/MOTOR TY 1, -#0477)
- TRAVEL HYD PIPING(T/MOTOR TY 2, #0478-)
- BOOM HYD PIPING(5.68M, STD)
- BOOM HYD PIPING(L/REACH, #0086-)
- BOOM HYD PIPING(4.7M, #0178-)
- BOOM GREASE LUB SYSTEM(5.68M, STD)
- BOOM GREASE LUB SYSTEM(L/REACH, #0086-)
- BOOM GREASE LUB SYSTEM(4.7M, #0178-)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP PIPING
- QUICK CLAMP(HOOK TYPE 1, -#1810)
- QUICK CLAMP(CLOSED TYPE 1, -#1810)
- QUICK CLAMP CYLINDER(-#1810)
- QUICK CLAMP(HOOK TYPE 2, -#1810)
- QUICK CLAMP(CLOSED TYPE 2, -#1810)
- QUICK CLAMP(HOOK TYPE 1, #1811-)
- QUICK CLAMP(CLOSED TYPE 1, #1811-)
- QUICK CLAMP(HOOK TYPE 2, #1811-)
- QUICK CLAMP(CLOSED TYPE 2, #1811-)
- QUICK CLAMP(HOOK TYPE 3, #2172-)
- QUICK CLAMP(CLOSED TYPE 3, #2172-)
- QUICK CLAMP(HOOK TYPE 4, #2172-)
- QUICK CLAMP(CLOSED TYPE 4, #2172-)
- ARM HYD PIPING(AM 2.92M, STD)
- ARM HYD PIPING(L/REACH, #0086-)
- ARM HYD PIPING(2.0M, #0035-)
- ARM HYD PIPING(SHORT ARM, 2.4M, #0035-)
- ARM HYD PIPING(2.065M, #0178-)
- ARM HYD PIPING(3.9M, #0035-)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT 1
- DOUBLE ACTING MAIN PIPING KIT 2
- SINGLE PEDAL(DOUBLE ACTING)
- ROTATING MAIN PIPING KIT
- SINGLE ACTING MAIN PIPING KIT(#0035-)

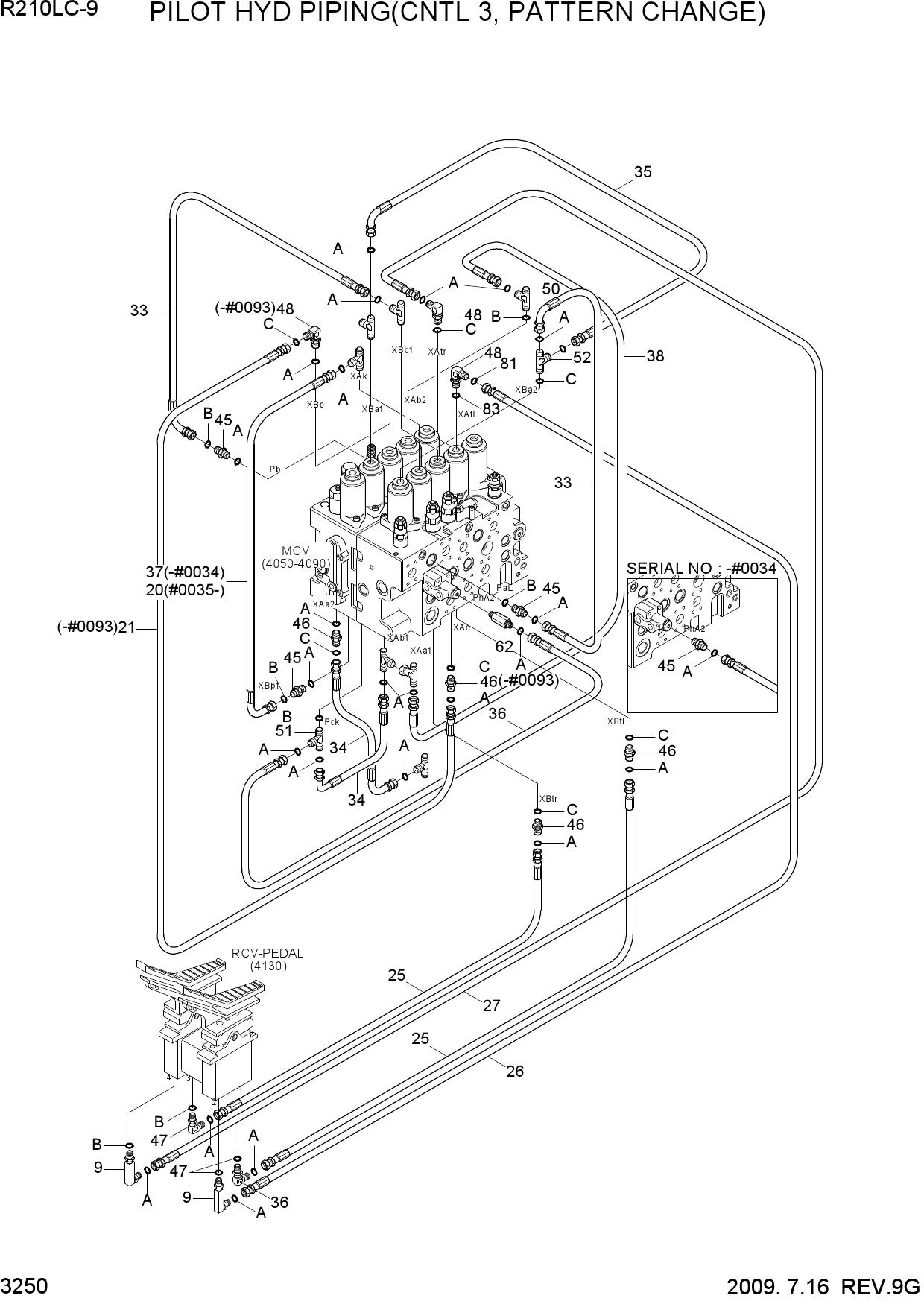

Запчасти для гусеничных экскаваторов Hyundai R210LC-9 PILOT HYD PIPING(CNTL 3, PATTERN CHANGE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 9 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 20 | P910-042020 | HOSE ASSY-ORFS 0X0 | |
| 21 | P910-042064 | HOSE ASSY-ORFS 0X0 | |
| 25 | P910-042064 | HOSE ASSY-ORFS 0X0 | |
| 26 | P910-042070 | HOSE ASSY-ORFS 0X0 | |
| 27 | P910-042072 | HOSE ASSY-ORFS 0X0 | |
| 33 | P930-042007 | HOSE ASSY-ORFS 0X90 | |
| 34 | P930-042008 | HOSE ASSY-ORFS 0X90 | |
| 35 | P930-042010 | HOSE ASSY-ORFS 0X90 | |
| 36 | P930-042016 | HOSE ASSY-ORFS 0X90 | |
| 37 | P930-042018 | HOSE ASSY-ORFS 0X90 | |
| 38 | P930-042026 | HOSE ASSY-ORFS 0X90 | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 46 | X500-110013 | CONNECTOR-ORFS | |
| 47 | X520-110001 | ELBOW-90,ORFS | |
| 48 | X520-110012 | ELBOW-90,ORFS | |
| 50 | X810-045151 | TEE-B/TYPE,ORFS | |
| 51 | X820-045151 | TEE-R/TYPE,ORFS | |
| 62 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| A | S621-011001 | O-RING | |
| B | S631-011004 | O-RING | |
| C | S631-014004 | O-RING |
