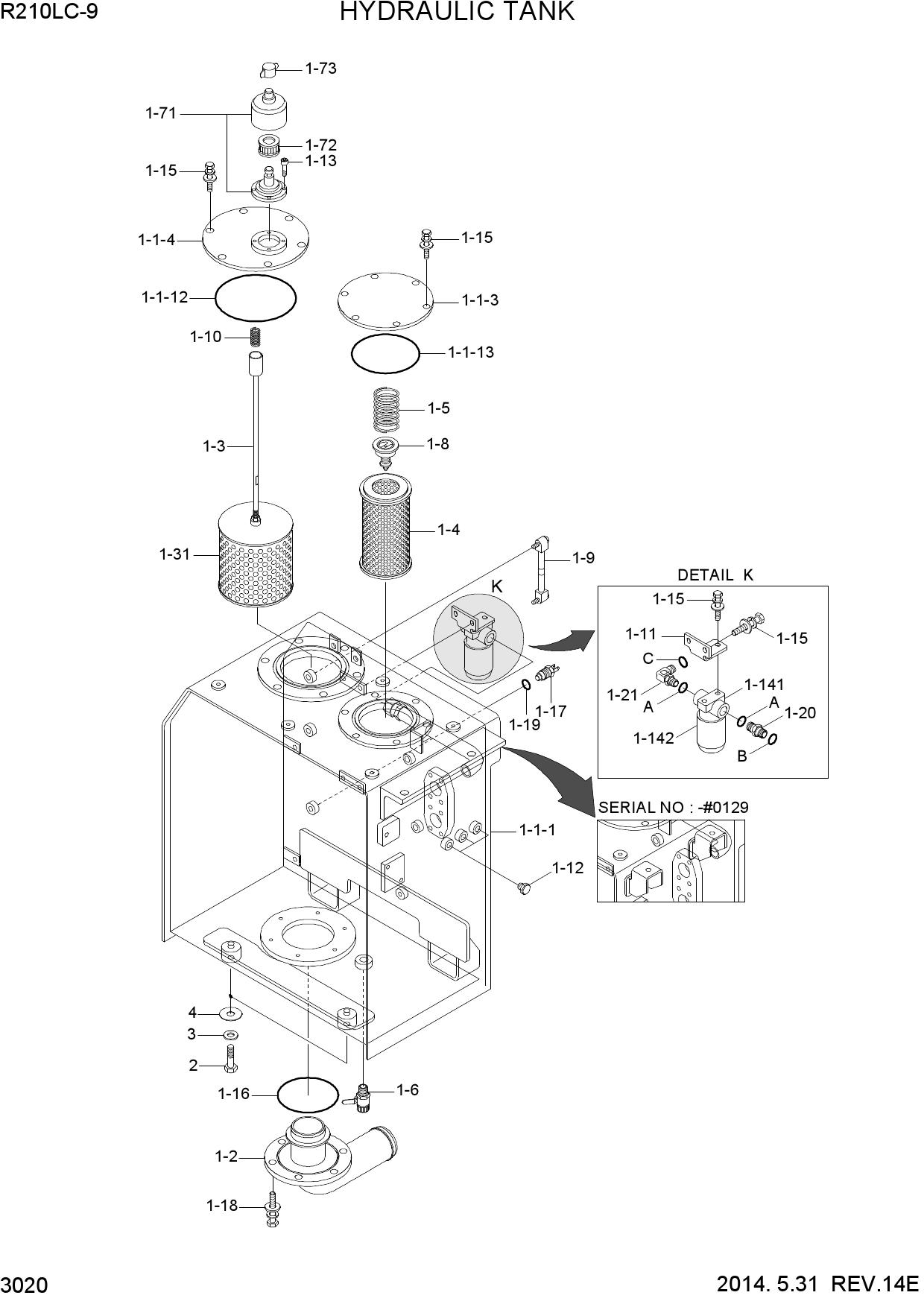

Запчасти для гусеничных экскаваторов Hyundai R210LC-9 HYDRAULIC TANK
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1-1-1 | 31Q6-01022 | HYD TANK WA | |
| 1-1-1 | 31Q6-01023 | HYD TANK WA | |
| 1-1-3 | 31Q6-01330 | COVER-RETURN | |
| 1-1-4 | 31Q6-01290 | COVER ASSY-SUCTION | |
| 1-1-12 | S632-220001 | O-RING | |
| 1-1-13 | S632-170001 | O-RING | |
| 1-2 | 31Q6-01120 | PIPE WA-SUCTION | |
| 1-3 | 31Q6-01130 | STRAINER ASSY | |
| 1-31 | E131-0214 | ELEMENT | |
| 1-4 | 31Q6-01280 | ELEMENT-RETURN | |
| 1-4 | 31Q6-01281 | ELEMENT-RETURN | |
| 1-5 | E131-0220 | SPRING | |
| 1-6 | 31Q6-01360 | VALVE-DRAIN | |
| 1-7 | 31EE-02100 | BREATHER-AIR | |
| 1-71 | PM102-0001R | BODY | |
| 1-72 | 31EE-02110 | ELEMENT | |
| 1-73 | XKCT-00001 | CAP-NUT | |
| 1-8 | E131-0256 | VALVE-BYPASS | |
| 1-9 | E131-0473 | GAUGE-LEVEL | |
| 1-9 | 33Q6-02700 | GAUGE-LEVEL | |
| 1-10 | E131-0594 | SPRING | |
| 1-11 | 31Q6-01160 | BRACKET | |
| 1-12 | P220-110103 | PLUG-HEX | |
| 1-13 | S109-060156 | BOLT-SOCKET | |
| 1-14 | 31N8-01350 | FILTER-DRAIN | |
| 1-141 | 31N8-01370 | HEAD-DRAIN FILTER | |
| 1-142 | 31N8-01360 | CARTRIDGE-DRAIN FILTER | |
| 1-15 | S037-102526 | BOLT-W/WASHER | |
| 1-16 | S632-150001 | O-RING | |
| 1-17 | 21EN-40100 | SENDER-TEMP | |
| 1-18 | S037-103026 | BOLT-W/WASHER | |
| 1-19 | 21EA-50260 | PACKING-TEMP SW | |
| 1-20 | X500-110005 | CONNECTOR-ORFS | |
| 1-21 | X520-110018 | ELBOW-90,ORFS | |
| A | S631-029004 | O-RING | |
| B | S621-021001 | O-RING | |
| C | S621-018001 | O-RING | |
| 2 | S017-20050D | BOLT-HEX | |
| 3 | 91E6-60200-DA | WASHER-HARDENED | |
| 4 | 31N8-01300 | SHIM(1.0T) |
