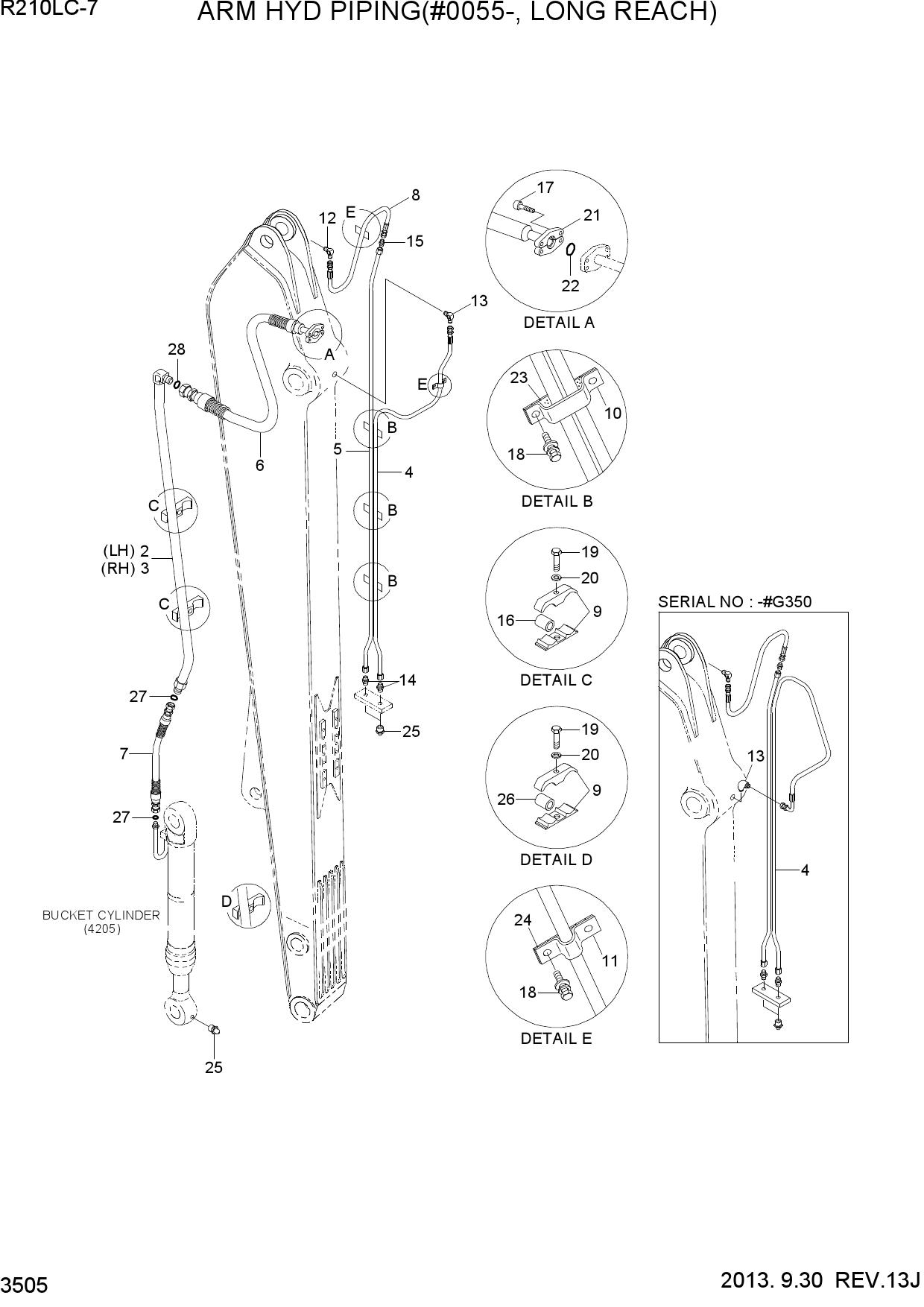

Запчасти для гусеничных экскаваторов Hyundai R210LC-7 ARM HYD PIPING(#0055-, LONG REACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-66010 | PIPE ASSY | |
| 2 | 31N6-66011 | PIPE ASSY | |
| 3 | 31N6-66020 | PIPE ASSY | |
| 3 | 31N6-66021 | PIPE ASSY | |
| 4 | 31N6-66030 | PIPE ASSY-GREASE | |
| 4 | 31N6-66031 | PIPE ASSY-GREASE | |
| 5 | 31N6-66040 | PIPE ASSY-GREASE | |
| 6 | P631-126334 | HOSE ASSY-THD FLG | |
| 6 | P633-126334 | HOSE ASSY-THD FLG | |
| 6 | P943-126332 | HOSE ASSY-ORFS,FLG | |
| 6 | 31N6-66120 | HOSE ASSY | |
| 7 | P601-086021 | HOSE ASSY-THD | |
| 7 | P603-086021 | HOSE ASSY-THD | |
| 7 | P913-086021 | HOSE ASSY-ORFS 0X0 | |
| 7 | 31N6-66130 | HOSE ASSY | |
| 8 | P600-042012 | HOSE ASSY-THD 0X0 | |
| 9 | 31EK-50340 | CLAMP-PIPE | |
| 9 | 31EE-51000 | CLAMP-PIPE | |
| 10 | 31E9-0078 | CLAMP-PIPE | |
| 10 | 31N6-50230 | CLAMP-PIPE | |
| 11 | 32E1-1025 | CLAMP-PIPE | |
| 11 | 32E1-1025 | CLAMP-PIPE | |
| 11 | 31Q6-66250 | CLAMP-PIPE | |
| 12 | E231-0207 | ELBOW-45 | |
| 13 | E231-0349 | ELBOW-90 | |
| 14 | E131-0625 | CONNECTOR | |
| 15 | E131-0626 | CONNECTOR | |
| 16 | E131-0277 | SPACER-PIPE | |
| 16 | E131-0277 | SPACER-PIPE | |
| 16 | 31N5-50220 | SPACER-PIPE | |
| 17 | S109-100356 | BOLT-SOCKET | |
| 18 | S035-062022 | BOLT-W/WASHER | |
| 18 | S035-062026 | BOLT-W/WASHER | |
| 19 | S017-160702 | BOLT-HEX | |
| 19 | S017-16070A | BOLT-HEX | |
| 20 | S411-160002 | WASHER-SPRING | |
| 20 | S411-160006 | WASHER-SPRING | |
| 21 | P173-120102 | FLANGE-HYD,SPLIT | |
| 22 | Y171-019004 | O-RING | |
| 23 | S301-103525 | PLATE-RUBBER | |
| 24 | S301-403030 | PLATE-RUBBER,2HOLE | |
| 25 | S651-810002 | NIPPLE-GREASE | |
| 26 | 31EE-50100 | SPACER-PIPE | |
| 26 | 31N5-50210 | SPACER-PIPE | |
| 27 | S621-014001 | O-RING | |
| 28 | S621-018001 | O-RING |
