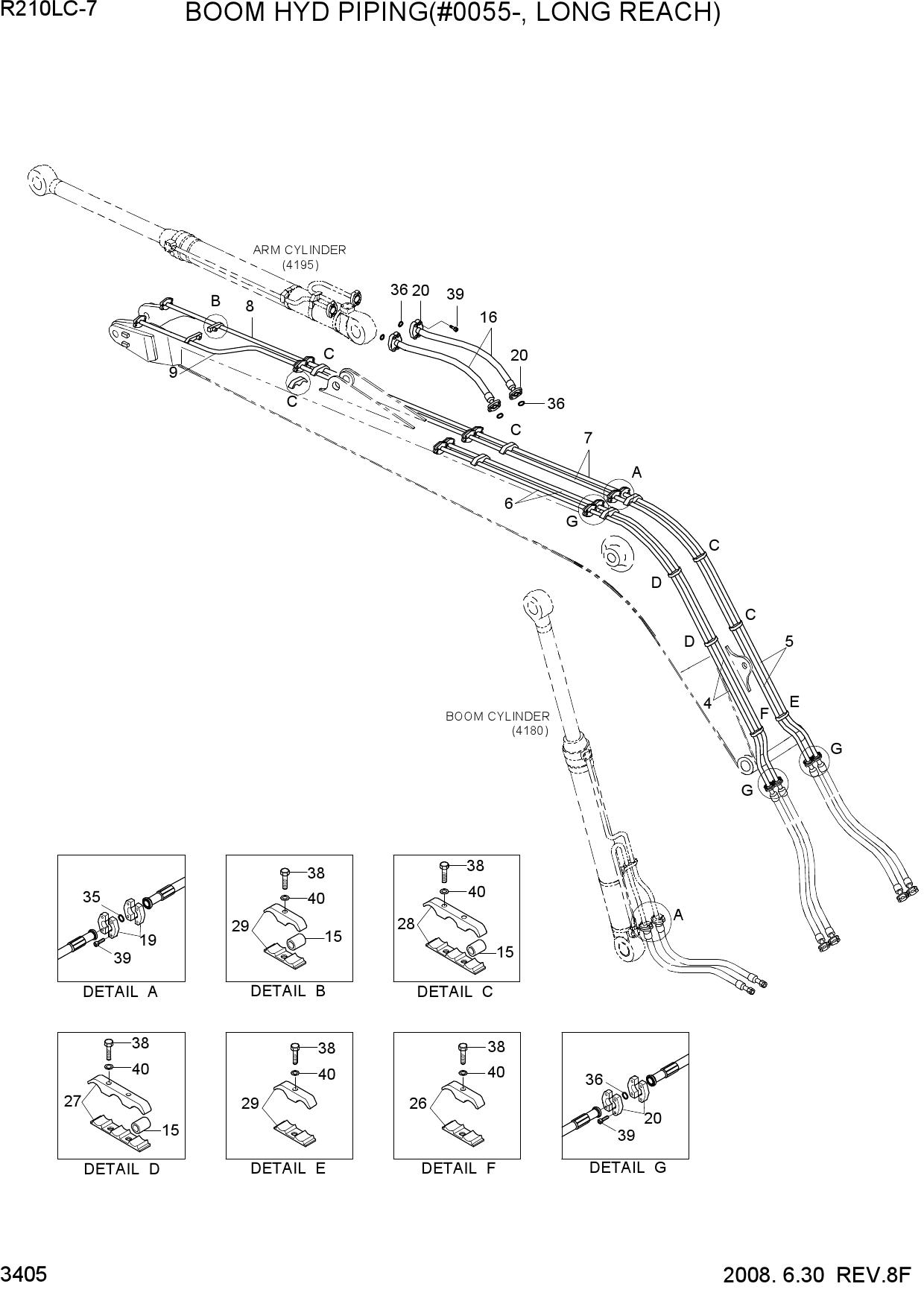

Запчасти для гусеничных экскаваторов Hyundai R210LC-7 BOOM HYD PIPING(#0055-,LONG REACH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N6-56010 | PIPE ASSY | |
| 4 | 31N6-56070 | PIPE ASSY | |
| 5 | 31N6-56020 | PIPE ASSY | |
| 5 | 31N6-56080 | PIPE ASSY | |
| 6 | 31N6-56030 | PIPE ASSY | |
| 7 | 31N6-56040 | PIPE ASSY | |
| 8 | 31N6-56050 | PIPE ASSY | |
| 9 | 31N6-56060 | PIPE ASSY | |
| 15 | E131-0277 | SPACER-PIPE | |
| 15 | 31N5-50220 | SPACER-PIPE | |
| 16 | P680-167323FL | HOSE ASSY-FLG 0X0 | |
| 19 | P173-120102 | FLANGE-HYD,SPLIT | |
| 20 | P173-160104 | FLANGE-HYD,SPLIT | |
| 26 | 31N6-50310 | CLAMP ASSY | |
| 27 | 31EM-52220 | CLAMP-PIPE | |
| 28 | 31EK-50190 | CLAMP-PIPE | |
| 29 | 31EK-50340 | CLAMP-PIPE | |
| 35 | Y171-019004 | O-RING | |
| 36 | Y171-024004 | O-RING | |
| 38 | S017-16070D | BOLT-HEX | |
| 39 | S109-100356 | BOLT-SOCKET | |
| 40 | S411-160006 | WASHER-SPRING |
