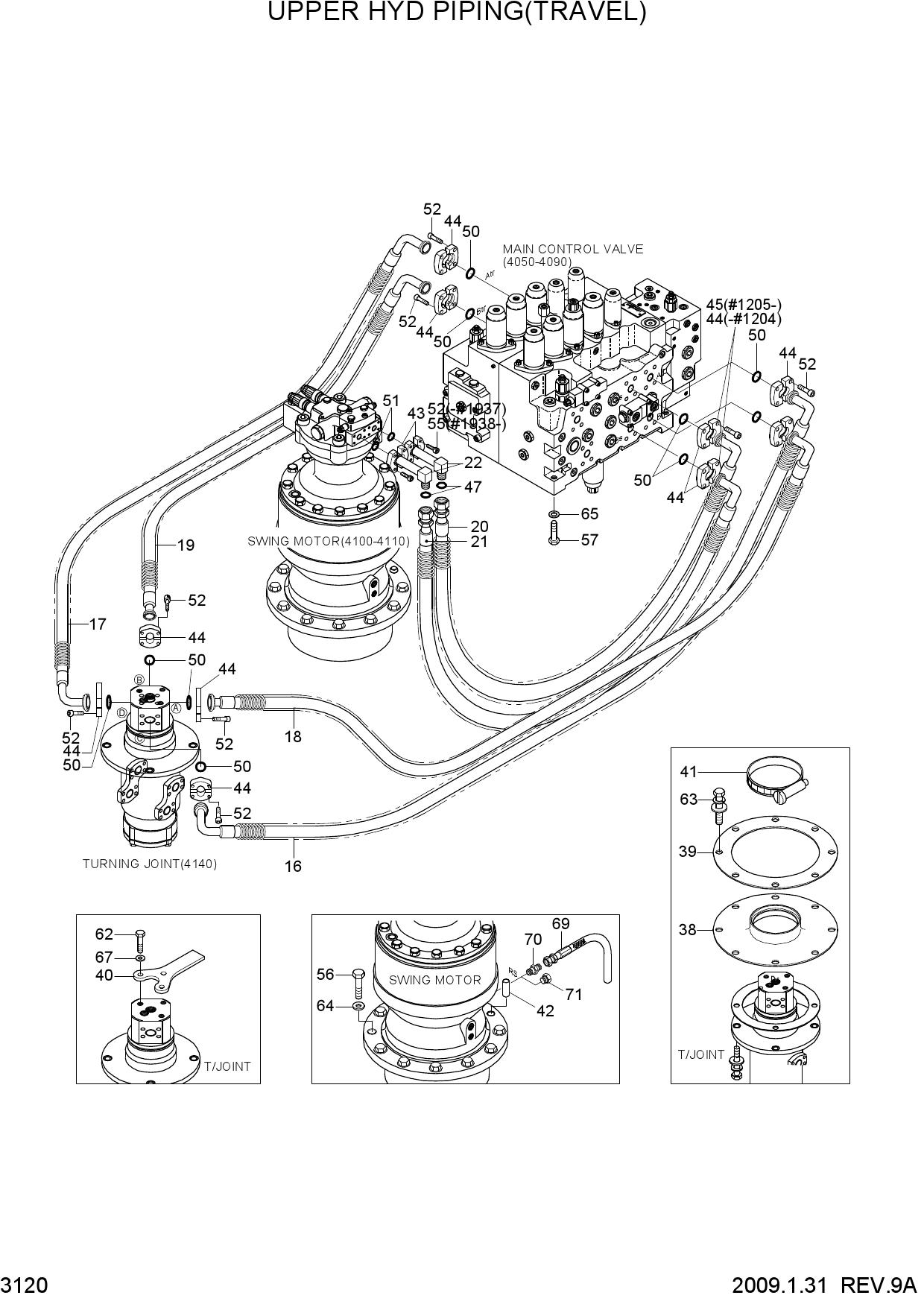

Запчасти для гусеничных экскаваторов Hyundai R210LC-7 UPPER HYD PIPING(TRAVEL)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 16 | 31N6-12012 | HOSE ASSY-90X90 | |
| 17 | 31N6-12021 | HOSE ASSY-90X90 | |
| 17 | 31N6-12022 | HOSE ASSY-90X90 | |
| 17 | 31N6-12023 | HOSE ASSY-90X90 | |
| 18 | 31N6-12031 | HOSE ASSY-0X90 | |
| 19 | 31N6-12041 | HOSE ASSY-0X90 | |
| 19 | 31N6-12042 | HOSE ASSY-0X90 | |
| 20 | 31N6-12050 | HOSE ASSY-0X90 | |
| 20 | 31N6-12051 | HOSE ASSY-0X90 | |
| 21 | 31N6-12060 | HOSE ASSY-0X90 | |
| 21 | 31N6-12061 | HOSE ASSY-0X90 | |
| 22 | 31N6-12071 | ELBOW | |
| 22 | 31N8-11322 | ELBOW-90,ORFS | |
| 38 | 31N1-40941 | RUBBER-T/JOINT | |
| 39 | 31N1-40951 | COVER-T/JOINT | |
| 40 | 31N1-40960 | BRACKET-T/JOINT | |
| 40 | 31N1-40961 | BRACKET-T/JOINT | |
| 41 | S520-130000 | CLAMP-HOSE | |
| 42 | 31E4-3039 | PIN-DOWEL | |
| 43 | P173-120102 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 44 | P173-160104 | FLANGE-HYD,SPLIT | |
| 45 | 31E9-01320 | FLANGE-SPLIT | |
| 47 | S621-018001 | O-RING | |
| 50 | Y171-024004 | O-RING | |
| 51 | Y171-019004 | O-RING | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 52 | S109-100306 | BOLT-SOCKET | |
| 55 | S109-100706 | BOLT-SOCKET | |
| 56 | S017-20075D | BOLT-HEX | |
| 57 | S017-120456 | BOLT-HEX | |
| 62 | S017-140306 | BOLT-HEX | |
| 63 | S037-102026 | BOLT-W/WASHER | |
| 64 | S441-200006 | WASHER-HARDENED | |
| 65 | S403-121006 | WASHER-PLAIN | |
| 67 | S411-140006 | WASHER-SPRING | |
| 69 | P400-062010 | HOSE ASSY-COMPACT | |
| 70 | P010-430015 | CONNECTOR | |
| 71 | P290-100103 | PLUG-CAP | |
| 71 | 31EM-22090 | PLUG |
