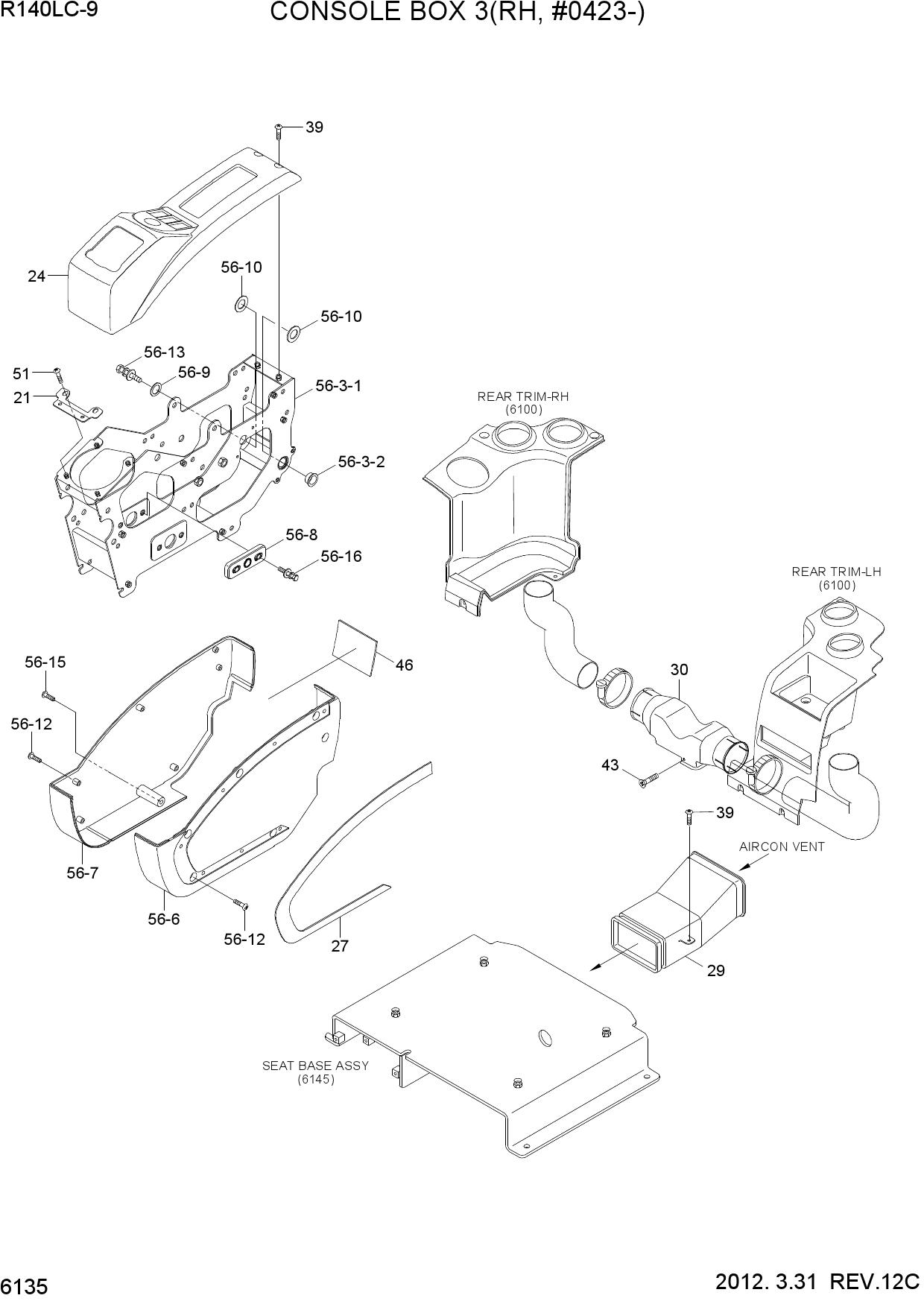

Запчасти для гусеничных экскаваторов Hyundai R140LC-9 CONSOLE BOX 3(RH, #0423-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 21 | 71Q6-21610 | BRACKET-CONSOLE UP | |
| 24 | 71Q6-22070GG | CONSOLE COVER-UP,RH | |
| 27 | 71Q6-22031 | CONSOLE COVER-TRIM | |
| 29 | 71Q6-22590 | DUCT-SEAT | |
| 30 | 71Q6-22280 | DUCT-VENT(1) | |
| 39 | S002-06015B | SCREW-TRUS HEAD | |
| 43 | S151-050106 | SCREW-TAPPING | |
| 46 | 71Q8-22670 | PROTECTOR | |
| 46 | 71Q8-22671 | PROTECTOR | |
| 51 | S035-061526 | BOLT-W/WASHER | |
| 56 | 71Q8-22000 | MIDDLE PLATE SUB ASSY | |
| 56-3 | 71Q8-22230 | FRAME ASSY-RH | |
| 56-31 | 71Q8-21340 | CENTER FRAME WA | |
| 56-32 | S731-020020 | BUSHING-DU | |
| 56-6 | 71Q8-23581 | COVER-CONSOLE,LH | |
| 56-7 | 71Q8-22051 | COVER-CONSOLE,RH | |
| 56-8 | 71Q8-22210 | HOUSING | |
| 56-9 | 71Q8-22240 | SHIM-ROUND | |
| 56-10 | 71Q8-22250 | SHIM-CONSOLE | |
| 56-12 | S002-06010B | SCREW-TRUS HEAD | |
| 56-13 | S037-102016 | BOLT-W/WASHER | |
| 56-15 | S151-040156 | SCREW-TAPPING | |
| 56-16 | S035-081556 | BOLT-W/WASHER |
