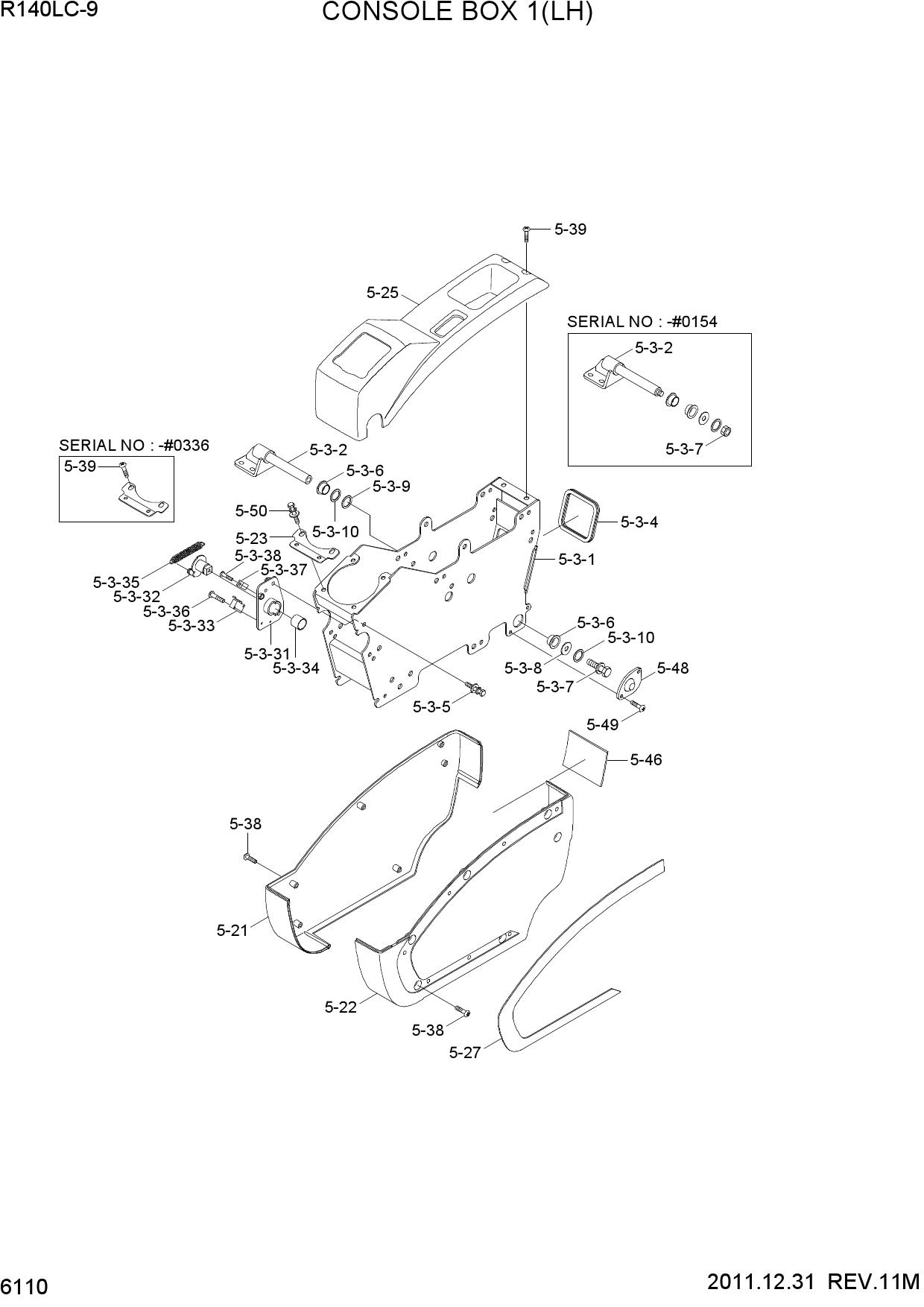

Запчасти для гусеничных экскаваторов Hyundai R140LC-9 CONSOLE BOX 1(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5-3 | 71Q6-21001 | CONSOLE FRAME ASSY-LH | |
| 5-3 | 71Q6-23670 | CONSOLE FRAME ASSY-LH | |
| 5-3 | 71Q6-23100 | CONSOLE FRAME ASSY-LH | |
| 5-3 | 71Q6-23680 | CONSOLE FRAME ASSY-LH | |
| 5-3-1 | 71Q4-21341 | FRAME WA-CONSOLE | |
| 5-3-1 | 71Q6-23110 | FRAME WA-CONSOLE | |
| 5-3-2 | 71Q6-21311 | BRACKET WA-CONSOLE | |
| 5-3-2 | 71Q6-23720 | BRACKET WA-CONSOLE | |
| 5-3-3 | 71Q6-20920 | BRACKET ASSY-SAFETY | |
| 5-3-31 | 71Q6-20930 | BRACKET-LOWER | |
| 5-3-32 | 71Q6-20960 | BRACKET-UPPER | |
| 5-3-33 | 21N8-20300 | SWITCH-MICRO | |
| 5-3-34 | S731-020010 | BUSHING-DU | |
| 5-3-35 | 71N6-21610 | SPRING | |
| 5-3-36 | S161-030156 | SCREW-CROSS R/ROUND | |
| 5-3-37 | 71Q6-22840 | PLATE-STOPPER | |
| 5-3-38 | S131-051526 | SCREW-W/WASHER | |
| 5-3-4 | 71Q6-21420 | GROMMET | |
| 5-3-5 | S035-061526 | BOLT-W/WASHER | |
| 5-3-6 | S731-020020 | BUSHING-DU | |
| 5-3-7 | S275-12000B | NUT-SELF LOCKING | |
| 5-3-7 | S037-102016 | BOLT-W/WASHER | |
| 5-3-8 | 71Q6-22690 | SHIM-ROUND | |
| 5-3-8 | 71Q6-23700 | SHIM(2.0T)-ROUND | |
| 5-3-9 | 71Q6-22631 | SHIM(1.0T)-CONSOLE | |
| 5-3-10 | 71Q6-23080 | SHIM(1.0T)-CONSOLE | |
| 5-21 | 71Q6-22050GG | CONSOLE COVER-LOW,RH | |
| 5-22 | 71Q6-22010GG | CONSOLE COVER-LOW,LH | |
| 5-23 | 71Q6-21610 | BRACKET-CONSOLE UP | |
| 5-25 | 71Q6-22060GG | CONSOLE COVER UP-LH | |
| 5-27 | 71Q6-22031 | CONSOLE COVER-TRIM | |
| 5-38 | S002-06010B | SCREW-TRUS HEAD | |
| 5-38 | S002-06010B | SCREW-TRUS HEAD | |
| 5-39 | S002-06015B | SCREW-TRUS HEAD | |
| 5-39 | S002-06015B | SCREW-TRUS HEAD | |
| 5-46 | 71Q6-22670 | PROTECTOR | |
| 5-46 | 71Q6-22672 | PROTECTOR | |
| 5-48 | 71Q6-23130GG | CAP-CONSOLE | |
| 5-49 | S002-05015B | SCREW-TRUS HEAD | |
| 5-50 | S035-061526 | BOLT-W/WASHER |
