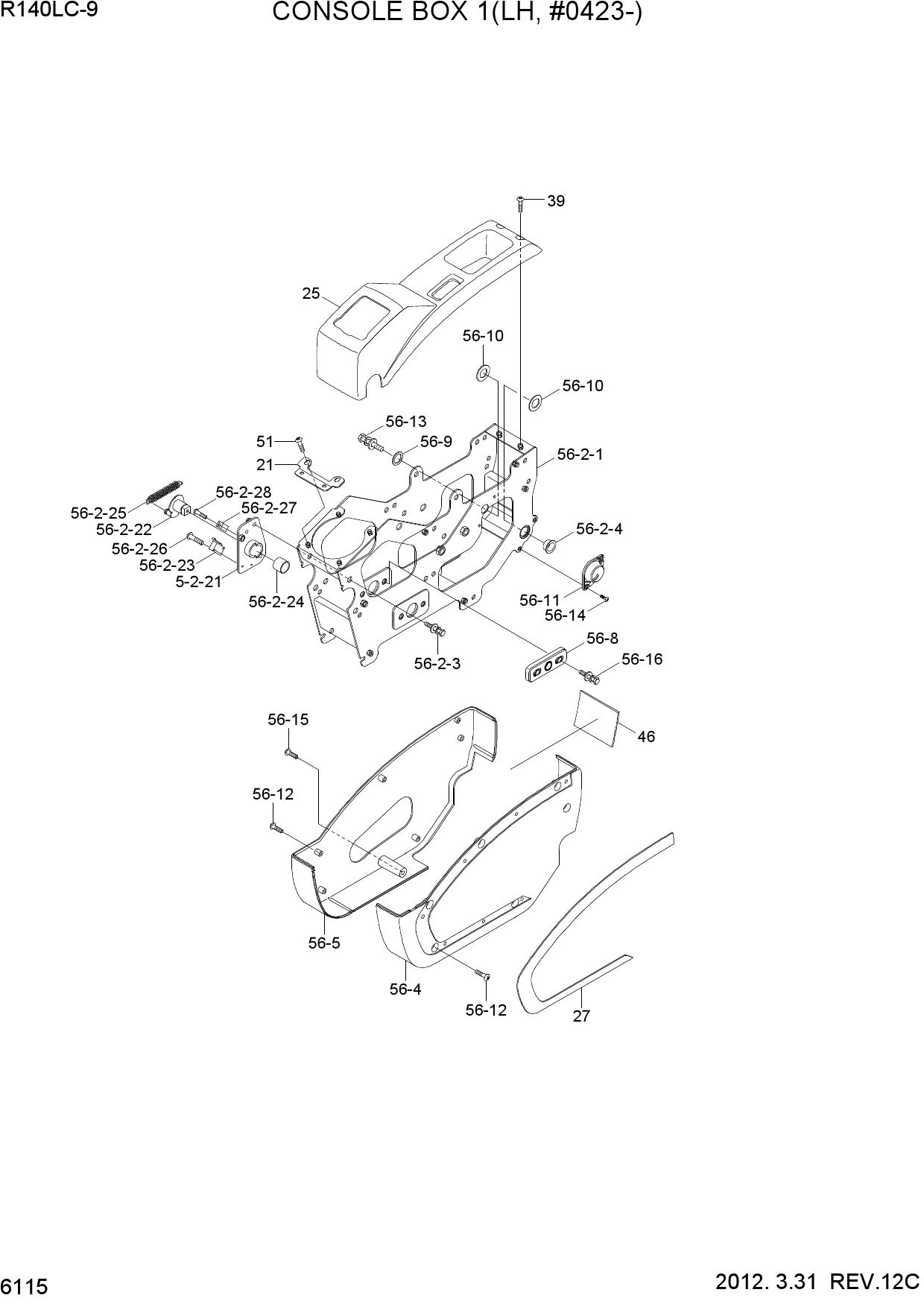

Запчасти для гусеничных экскаваторов Hyundai R140LC-9 CONSOLE BOX 1(LH, #0423-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 21 | 71Q6-21610 | BRACKET-CONSOLE UP | |
| 25 | 71Q6-22060GG | CONSOLE COVER UP-LH | |
| 27 | 71Q6-22031 | CONSOLE COVER-TRIM | |
| 39 | S002-06015B | SCREW-TRUS HEAD | |
| 46 | 71Q8-22670 | PROTECTOR | |
| 46 | 71Q8-22671 | PROTECTOR | |
| 51 | S035-061526 | BOLT-W/WASHER | |
| 56 | 71Q8-22000 | MIDDLE PLATE SUB ASSY | |
| 56-2 | 71Q8-22220 | FRAME ASSY-LH | |
| 56-21 | 71Q8-23110 | CENTER FRAME WA | |
| 56-22 | 71Q6-20920 | BRACKET ASSY-SAFETY | |
| 56-221 | 71Q6-20930 | BRACKET-LOWER | |
| 56-222 | 71Q6-20960 | BRACKET-UPPER | |
| 56-223 | 21N8-20300 | SWITCH-MICRO | |
| 56-224 | S731-020015 | DU BUSHING | |
| 56-225 | 71N6-21610 | SPRING | |
| 56-226 | S161-030152 | SCREW-CROSS R/ROUND | |
| 56-227 | 71Q6-22840 | PLATE-STOPPER | |
| 56-228 | S131-051526 | SCREW-W/WASHER | |
| 56-23 | S035-061526 | BOLT-W/WASHER | |
| 56-24 | S731-020020 | BUSHING-DU | |
| 56-4 | 71Q8-22011 | COVER-CONSOLE,LH | |
| 56-5 | 71Q8-23591 | COVER-CONSOLE,RH | |
| 56-8 | 71Q8-22210 | HOUSING | |
| 56-9 | 71Q8-22240 | SHIM-ROUND | |
| 56-10 | 71Q8-22250 | SHIM-CONSOLE | |
| 56-11 | 71Q8-23600 | CAP-CONSOLE | |
| 56-12 | S002-06010B | SCREW-TRUS HEAD | |
| 56-13 | S037-102016 | BOLT-W/WASHER | |
| 56-14 | S002-05015B | SCREW-TRUS HEAD | |
| 56-15 | S151-040156 | SCREW-TAPPING | |
| 56-16 | S035-081556 | BOLT-W/WASHER |
