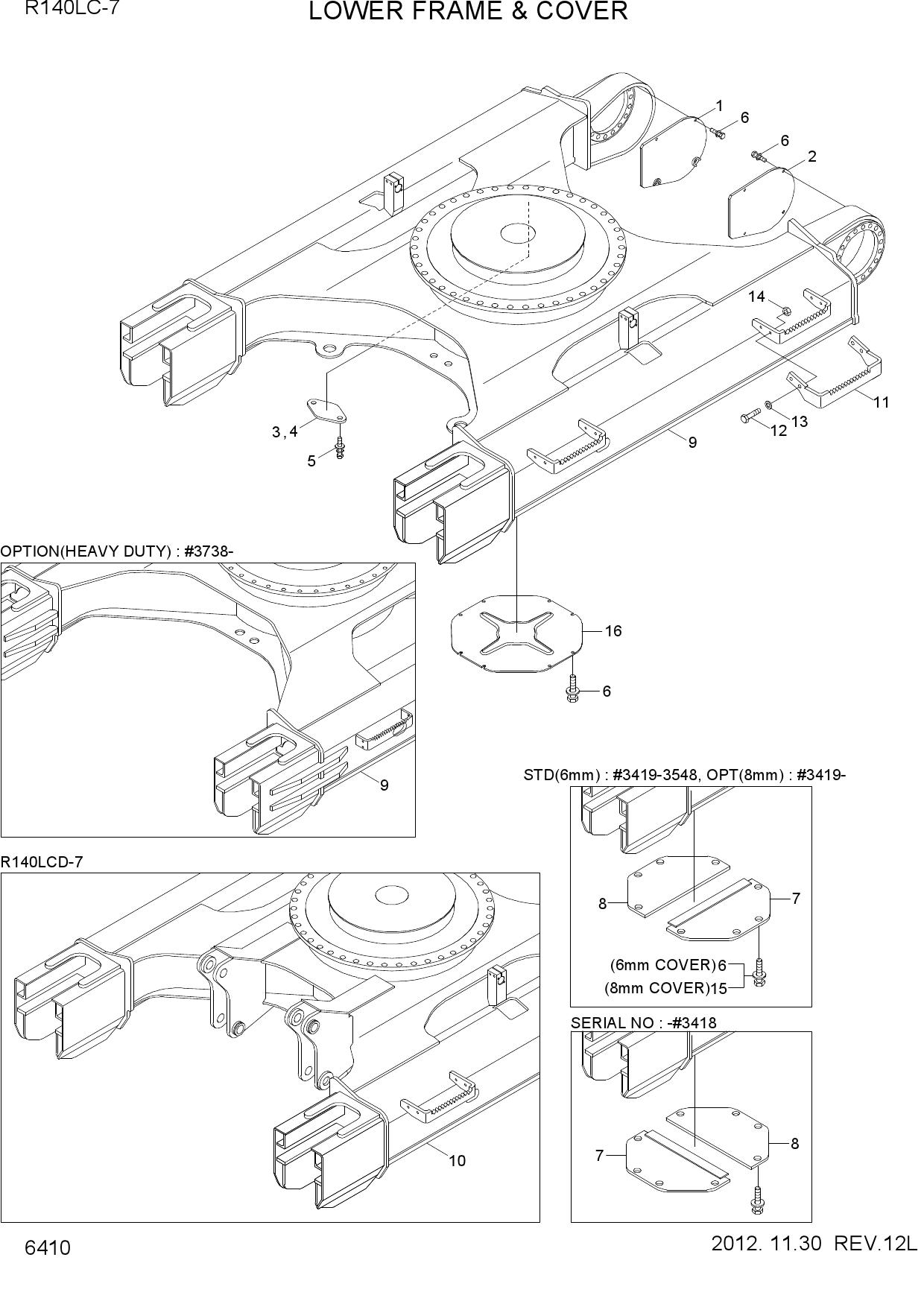

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 LOWER FRAME & COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51N4-11111 | COVER PLATE-T/M,RH | |
| 2 | 51N4-11121 | COVER PLATE-T/M,LH | |
| 3 | E141-1305 | COVER | |
| 4 | 41E9-1306 | SEAL | |
| 5 | S037-102566 | BOLT-W/WASHER | |
| 6 | S037-123556 | BOLT-W/WASHER | |
| 7 | 51N6-11211 | COVER-BOTTOM(A) | |
| 7 | 51N6-11211BG | COVER-BOTTOM(A) | |
| 7 | 51N6-11230 | COVER-BOTTOM(A) | |
| 7 | 51N6-11230BG | COVER-BOTTOM(A) | |
| 8 | 51N6-11221 | COVER-BOTTOM(B) | |
| 8 | 51N6-11221BG | COVER-BOTTOM(B) | |
| 8 | 51N6-11240 | COVER-BOTTOM(B) | |
| 8 | 51N6-11240BG | COVER-BOTTOM(B) | |
| 9 | 51N4-02011 | LOWER FRAME WA | |
| 9 | 54N4-02010 | LOWER FRAME WA | |
| 10 | 51N4-04010 | LOWER FRAME WA | |
| 11 | 51N4-20010 | BOARD-FOOT | |
| 11 | 51N4-20050 | BOARD-FOOT | |
| 11 | 51N4-20080 | BOARD-FOOT | |
| 12 | S017-16055D | BOLT-HEX | |
| 13 | S441-160006 | WASHER-HARDENED | |
| 14 | S207-161002 | NUT-HEX | |
| 15 | S037-124556 | BOLT-W/WASHER | |
| 16 | 51Q6-11210BG | COVER-BOTTOM(A) |
