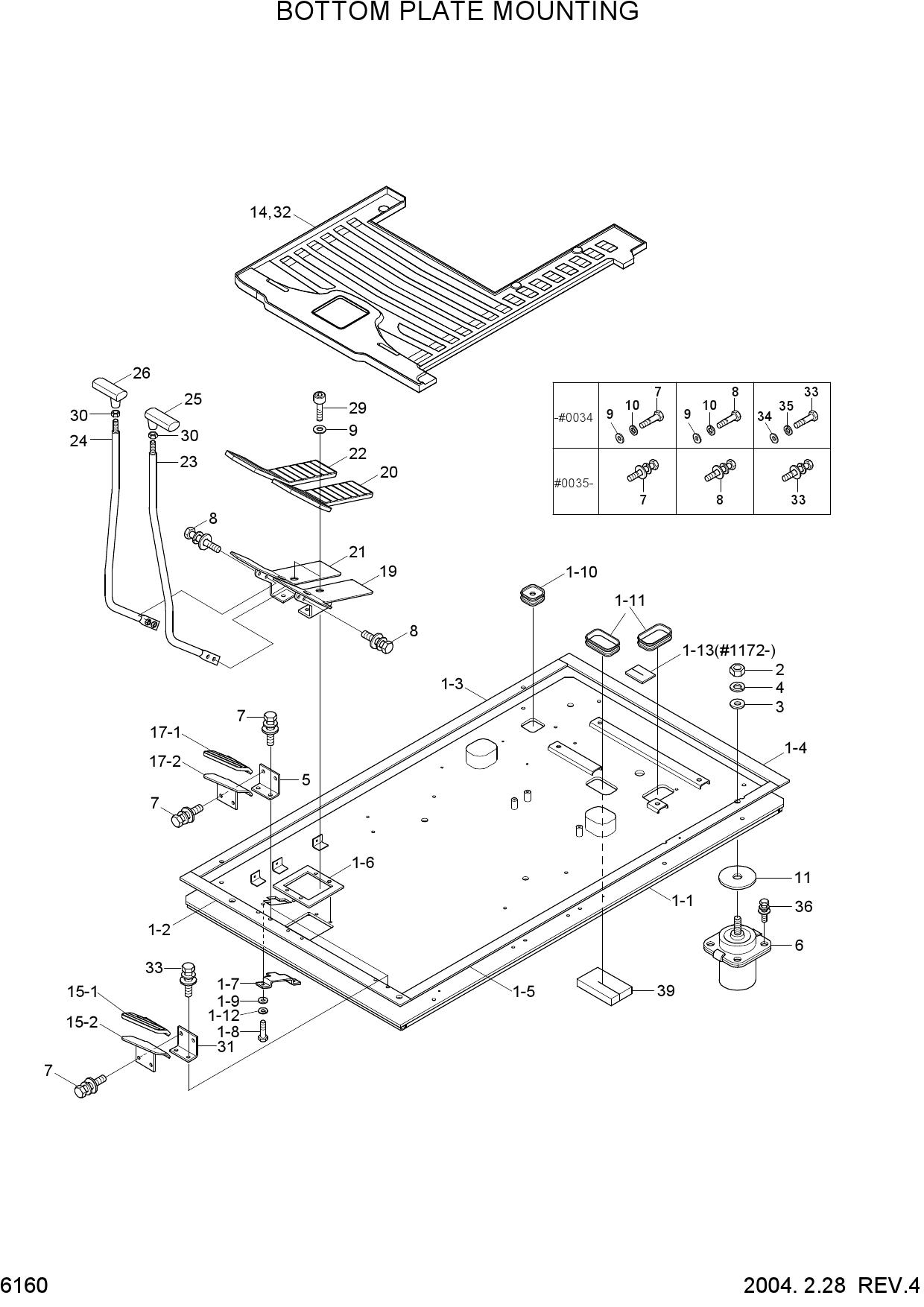

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 BOTTOM PLATE MOUNTING
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 71N6-10103 | BOTTOM PLATE ASSY | |
| 1 | 71N6-10104 | BOTTOM PLATE ASSY | |
| 1 | 71N6-10105 | BOTTOM PLATE ASSY | |
| 1-1 | 71N6-10112 | BOTTOM PLATE WA | |
| 1-1 | 71N6-10113 | BOTTOM PLATE WA | |
| 1-2 | 71N6-11100 | PAD-RUBBER | |
| 1-3 | 71N6-11110 | PAD-RUBBER | |
| 1-4 | 71N6-11120 | PAD-RUBBER | |
| 1-5 | 71N6-11130 | PAD-RUBBER | |
| 1-6 | 71N6-11140 | PAD-RUBBER | |
| 1-7 | 71E9-10660 | COVER | |
| 1-7 | 71E9-10661 | COVER | |
| 1-8 | S017-100166 | BOLT-HEX | |
| 1-8 | S017-100156 | BOLT-HEX | |
| 1-9 | S403-102006 | WASHER-PLAIN | |
| 1-10 | 71E9-10630 | GROMMET | |
| 1-11 | 71E9-10640 | GROMMET | |
| 1-12 | S411-100006 | WASHER-SPRING | |
| 1-13 | 71N4-10940 | PAD-TRAVEL LINK | |
| 2 | S207-161006 | NUT-HEX | |
| 3 | S403-162006 | WASHER-PLAIN | |
| 4 | S411-160006 | WASHER-SPRING | |
| 5 | 71N6-10130 | BRACKET-FOOT REST | |
| 6 | 71N6-10300 | VISCOUS MOUNT | |
| 7 | S017-100256 | BOLT-HEX | |
| 7 | S037-102516 | BOLT-W/WASHER | |
| 7 | S037-102526 | BOLT-W/WASHER | |
| 8 | S017-100306 | BOLT-HEX | |
| 8 | S037-103016 | BOLT-W/WASHER | |
| 8 | S037-103026 | BOLT-W/WASHER | |
| 9 | S403-102006 | WASHER-PLAIN | |
| 9 | S403-102006 | WASHER-PLAIN | |
| 10 | S411-100002 | WASHER-SPRING | |
| 11 | 71E9-10650-DA | WASHER | |
| 14 | 71N6-10141 | MAT-FLOOR | |
| 15 | 71N6-10310 | FOOT REST ASSY-LH | |
| 15-1 | 71N6-10150 | BRACKET-FOOT REST | |
| 15-2 | 71N6-10161 | RUBBER-FOOT REST | |
| 17 | 71N6-10320 | FOOT REST ASSY-RH | |
| 17-1 | 71N6-10170 | BRACKET-FOOT REST | |
| 17-2 | 71N6-10181 | RUBBER-FOOT REST | |
| 19 | 71N6-10190 | BRACKET-PEDAL | |
| 20 | 71N6-10201 | RUBBER-PEDAL | |
| 21 | 71N6-10210 | BRACKET-PEDAL | |
| 22 | 71N6-10221 | RUBBER-PEDAL | |
| 23 | 71N6-10230 | LEVER-TRAVEL | |
| 24 | 71N6-10240 | LEVER-TRAVEL | |
| 25 | 71N6-10251 | KNOB-LEVER | |
| 26 | 71N6-10261 | KNOB-LEVER | |
| 29 | S109-100206 | BOLT-SOCKET | |
| 30 | S206-101006 | NUT-HEX | |
| 31 | 71N6-10130 | BRACKET-FOOT REST | |
| 32 | 71N6-10280 | MAT-FLOOR | |
| 32 | 71N6-10290 | MAT-FLOOR | |
| 33 | S017-100256 | BOLT-HEX | |
| 33 | S037-102516 | BOLT-W/WASHER | |
| 33 | S037-102526 | BOLT-W/WASHER | |
| 34 | S403-102006 | WASHER-PLAIN | |
| 35 | S411-100002 | WASHER-SPRING | |
| 36 | S037-103022 | BOLT-W/WASHER | |
| 39 | 71N4-10970 | SPONGE-INSULATION |
