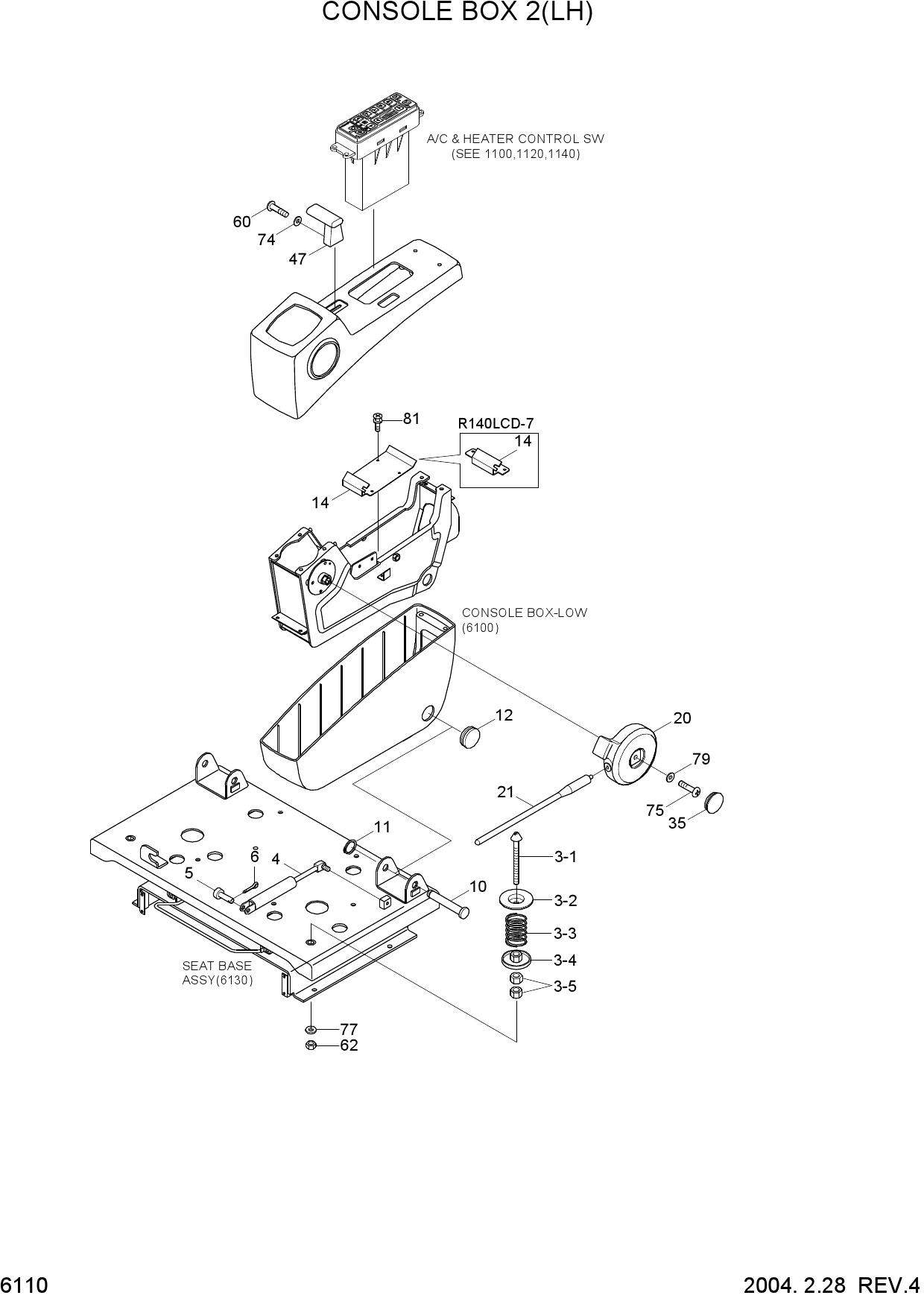

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 CONSOLE BOX 2(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 71N6-20031 | TILT LOCKER ASSY | |
| 3-1 | 71N6-21151 | SHAFT | |
| 3-2 | 71N6-21160 | PLATE | |
| 3-3 | 71N6-21170 | SPRING | |
| 3-4 | 71N6-21180 | PLATE WA | |
| 3-5 | S207-161006 | NUT-HEX | |
| 4 | 71N6-20040 | GAS SPRING | |
| 5 | S491-080256 | PIN-CLEVIS | |
| 6 | S461-160256 | PIN-SPLIT | |
| 10 | 71N6-20081 | SHAFT | |
| 11 | S601-020004 | RING-RETAINING | |
| 12 | S661-360400 | CAP-RUBBER | |
| 14 | 71N6-20111 | PLATE-CABLE | |
| 14 | 71N4-20110 | PLATE-CABLE | |
| 20 | 71N6-20151 | COVER-S/LEVER | |
| 21 | 71N6-20161 | ROD-SAFETY | |
| 35 | 71N6-20281 | CAP-S/LEVER | |
| 47 | 71N6-20351 | KNOB-TILT | |
| 60 | S161-040086 | SCREW-RD HD | |
| 60 | S131-040826 | SCREW-W/WASHER | |
| 62 | S205-161006 | NUT-HEX | |
| 74 | S403-042006 | WASHER-PLAIN | |
| 75 | S175-060166 | SCREW-SOCKET RD HD | |
| 77 | S403-162006 | WASHER-PLAIN | |
| 79 | S403-065006 | WASHER-PLAIN | |
| 81 | S131-061646 | SCREW-W/WASHER |
