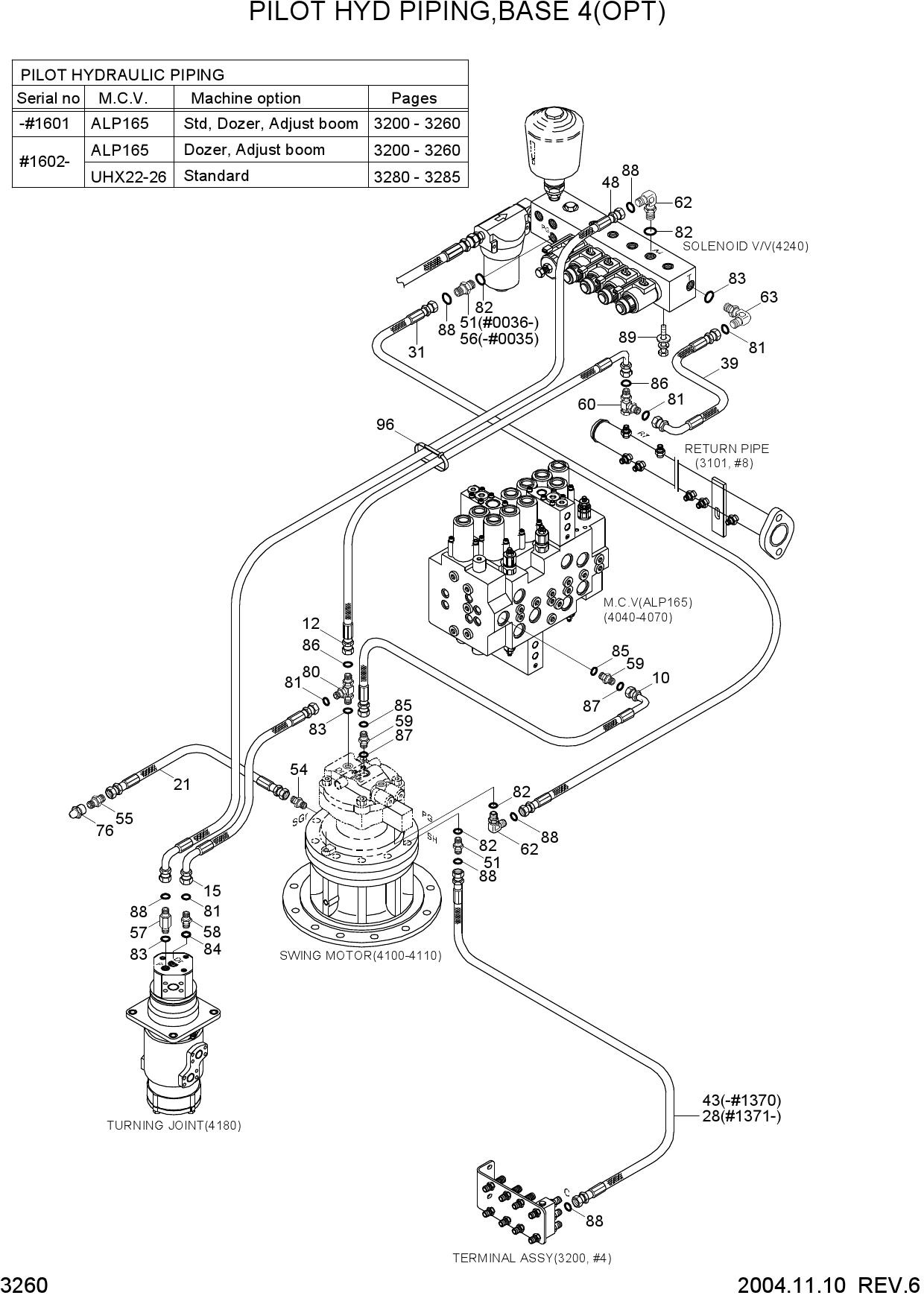

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 PILOT HYD PIPING(BASE 4, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 10 | P930-122014 | HOSE ASSY-ORFS 0X90 | |
| 12 | P620-082018 | HOSE ASSY-THD 0X90 | |
| 12 | P930-082018 | HOSE ASSY-ORFS 0X90 | |
| 15 | P420-062013 | HOSE ASSY-COMP 0X90 | |
| 15 | X420-062013 | HOSE ASSY-SYNFLEX,ORFS | |
| 15 | P930-062013 | HOSE ASSY-ORFS 0X90 | |
| 21 | P420-042018 | HOSE ASSY-COMP 0X90 | |
| 21 | P860-042018 | HOSE ASSY-SYN 0X90 | |
| 21 | P420-042018 | HOSE ASSY-COMP 0X90 | |
| 28 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 28 | P910-042026 | HOSE ASSY-ORFS 0X0 | |
| 31 | P400-042041 | HOSE ASSY-COMPACT | |
| 31 | P910-043041 | HOSE ASSY-ORFS 0X0 | |
| 39 | P420-062039 | HOSE ASSY-COMP 0X90 | |
| 39 | X420-062039 | HOSE ASSY-SYNFLEX,ORFS | |
| 39 | P930-062039 | HOSE ASSY-ORFS 0X90 | |
| 43 | P420-042026 | HOSE ASSY-COMP 0X90 | |
| 48 | P420-042050 | HOSE ASSY-COMP 0X90 | |
| 48 | X420-042050 | HOSE ASSY-SYNFLEX,ORFS | |
| 48 | P930-042050 | HOSE ASSY-ORFS 0X90 | |
| 51 | P010-110002 | CONNECTOR | |
| 51 | P010-110002 | CONNECTOR | |
| 51 | X500-110001 | CONNECTOR-ORFS | |
| 54 | P010-430002 | CONNECTOR | |
| 55 | P010-430011 | CONNECTOR | |
| 56 | P101-104044 | CONNECTOR-LONG | |
| 57 | P101-106044 | CONNECTOR-LONG | |
| 57 | X511-106514 | CONNECTOR-LONG,ORFS | |
| 58 | P010-110015 | CONNECTOR | |
| 58 | P101-108064 | CONNECTOR-LONG | |
| 58 | X511-108524 | CONNECTOR-LONG,ORFS | |
| 59 | X500-110004 | CONNECTOR-ORFS | |
| 60 | 34EA-21320 | TEE R/TYPE-S/NUT | |
| 60 | X840-535253 | TEE-R/TYPE,SWIVEL,ORFS | |
| 62 | P020-110001 | ELBOW-90 | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 63 | P020-110002 | ELBOW-90 | |
| 63 | X520-110002 | ELBOW-90,ORFS | |
| 76 | S651-810002 | NIPPLE-GREASE | |
| 80 | 34E7-04810 | TEE | |
| 80 | 31N4-22140 | TEE-ORFS | |
| 81 | S621-012001 | O-RING | |
| 82 | S631-011004 | O-RING | |
| 83 | S631-014004 | O-RING | |
| 84 | S631-018004 | O-RING | |
| 85 | S631-024004 | O-RING | |
| 86 | S621-014001 | O-RING | |
| 87 | S621-018001 | O-RING | |
| 89 | S035-082542 | BOLT-W/WASHER | |
| 88 | S621-011001 | O-RING | |
| 89 | S035-082542 | BOLT-W/WASHER | |
| 96 | S551-050203 | CLAMP-BAND |
