- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE, -#1000)
- UPPER HYD PIPING(BASE, #1001-)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BM, #0234-)
- UPPER HYD PIPING 2(ADJUST BM, #0234-)
- UPPER HYD PIPING(BASE, STD, #1602-)
- UPPER HYD PIPING(TRAVEL, STD, #1602-)
- UPPER HYD PIPING(ATTACH, STD, #1602-)
- UPPER HYD PIPING(BASE, 2-BLOCK, #2680-)
- UPPER HYD PIPING(TRAVEL,2-BLOCK,#2680-)
- UPPER HYD PIPING(TRAVEL,2-BLOCK,#2680-)
- PILOT HYD PIPING(CNTL 1, OPT)
- PILOT HYD PIPING(CNTL 2, OPT)
- PILOT HYD PIPING(CNTL 3, OPT)
- PILOT HYD PIPING(BASE 1, OPT)
- PILOT HYD PIPING(BASE 2, OPT)
- PILOT HYD PIPING(BASE 3, OPT)
- PILOT HYD PIPING(BASE 4, OPT)
- PILOT HYD PIPING(ADJUST BOOM, #0234-)
- PILOT HYD PIPING(CNTL 1, STD, #1602-)
- PILOT HYD PIPING(CNTL 2, STD, #1602-)
- PILOT HYD PIPING(CNTL 3, STD, #1602-)
- PILOT HYD PIPING(BASE 1, STD, #1602-)
- PILOT HYD PIPING(BASE 2, STD, #1602-)
- PILOT HYD PIPING(BASE 3, STD, #1602-)
- PILOT HYD PIPING(BASE 1,2-BLOCK,#2680-)
- PILOT HYD PIPING(BASE 2,2-BLOCK,#2680-)
- PILOT HYD PIPING(BASE 3,2-BLOCK,#2680-)
- PILOT HYD PIPING(BASE 4,2-BLOCK,#2680-)
- PILOT HYD PIPING(BASE 5,2-BLOCK,#2680-)
- PILOT HYD PIPING(BASE 6,2-BLOCK,#2680-)
- TRAVEL HYD PIPING(TYPE 1)
- TRAVEL HYD PIPING(TYPE 2)
- TRAVEL HYD PIPING(# 0239-#1082, LCM-7)
- TRAVEL HYD PIPING(#1083-, LCM-7)
- TRAVEL HYD PIPING 1(LCD-7, TYPE 1)
- TRAVEL HYD PIPING 2(LCD-7, TYPE 1)
- TRAVEL HYD PIPING 1(LCD-7, TYPE 2)
- TRAVEL HYD PIPING 2(LCD-7, TYPE 2)
- BOOM HYD PIPING(4.6M, STD, -#1000)
- BOOM HYD PIPING(4.6M, STD, #1001-)
- BOOM GREASE LUB SYSTEM(4.6M, STD)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING(-#1370)
- QUICK CLAMP HYD PIPING(#1371-)
- BOOM HYD PIPING(4.1M, -#1000)
- BOOM HYD PIPING(4.1M, #1001-)
- BOOM GREASE LUB SYSTEM(4.1M)
- BOOM HYD PIPING(ADJUST BOOM, #0234-)
- BOOM GREASE LUB SYS(ADJ/BOOM, #0234-)
- BOOM HYD PIPING(4.6M, STD, #1602-)
- BOOM GREASE LUB SYSTEM(4.6M,STD, #1602-)
- BOOM HYD PIPING(4.1M, #1602-)
- BOOM GREASE LUB SYSTEM(4.1M, #1602-)
- ARM HYD PIPING(2.5M, STD)
- ARM HYD PIPING(3.0M, LONG)
- ARM SAFETY LOCK SYSTEM
- DOZER HYD PIPING(UPPER)
- DOZER HYD PIPING(LOWER)
- DOUBLE ACTING ATTACH PIPING KIT(-#1370)
- DOUBLE ACTING ATTACH PIPING KIT(#1371-)
- DOUBLE ACTING ATTACH PIPING KIT(#1371-)
- DOUBLE ACTING MAIN PIPING KIT(-#1370)
- DOUBLE ACTING MAIN PIPING KIT(#1371-)
- DOUBLE ACTING MAIN PIPING KIT(-#1370)
- DOUBLE ACTING MAIN PIPING KIT(#1371-)
- DOUBLE ACTING MAIN PIPING KIT(#1602-)
- SINGLE ACTING MAIN PIPING KIT(-#1370)
- SINGLE ACTING MAIN PIPING KIT(#1371-)
- SINGLE ACTING MAIN PIPING KIT(#1602-)
- ADJUST BOOM ATTACH PIPING KIT(#1016-)
- S/ACT MAIN PIPING KIT(ADJUST BM,#1371-)
- D/ACT MAIN PIPING KIT(ADJUST BM,#1371-)

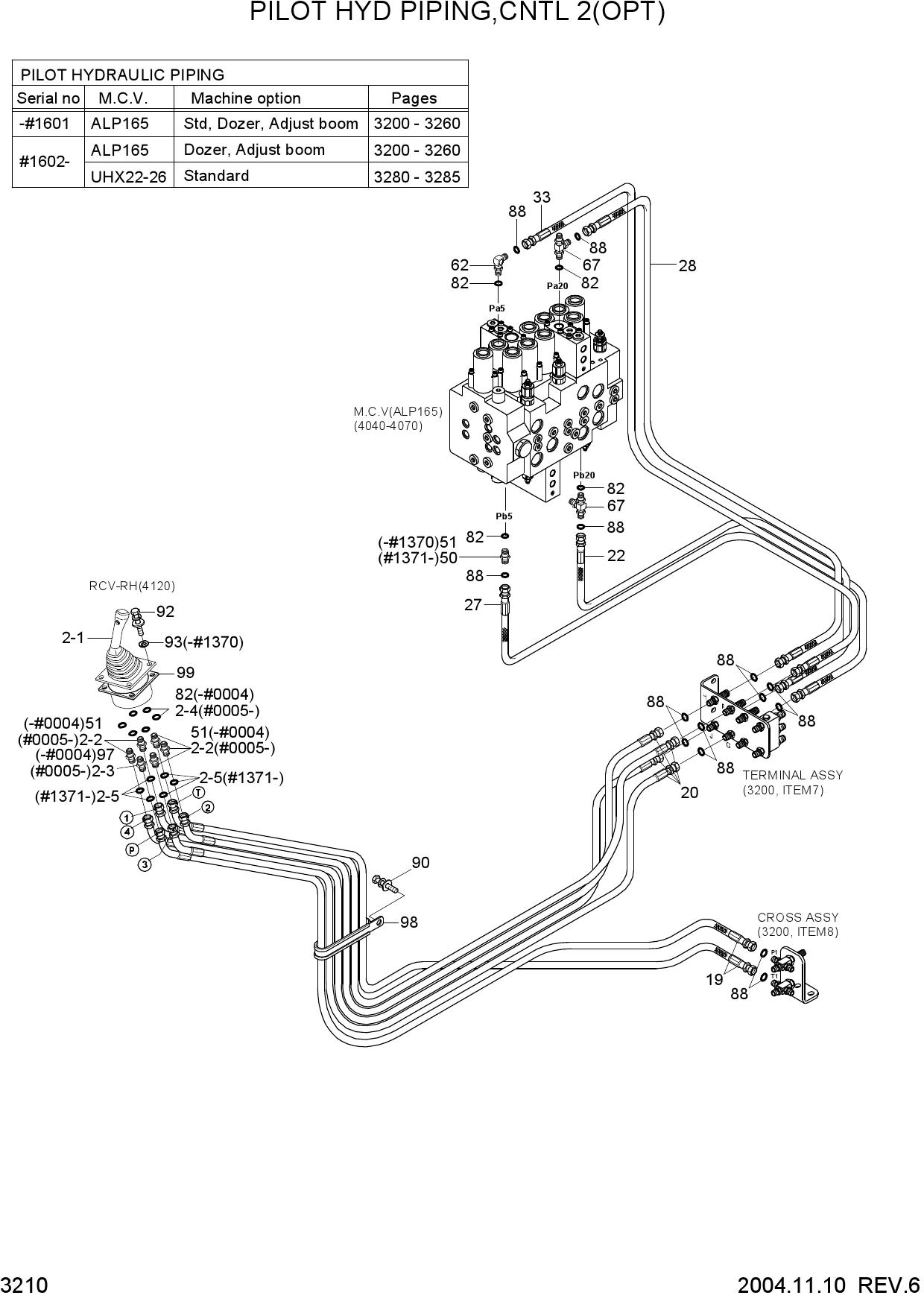

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 PILOT HYD PIPING(CNTL 2, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-20160 | RCV SUB ASSY-RH | |
| 2 | 31N6-20210 | RCV SUB ASSY-RH | |
| 2 | 31N6-25210 | RCV SUB ASSY-RH | |
| 2-2 | P010-110002 | CONNECTOR | |
| 2-2 | X500-110001 | CONNECTOR-ORFS | |
| 2-3 | 31EK-20100 | FILTER-LAST GUARD | |
| 2-3 | 31N6-25060 | FILTER-LAST GUARD | |
| 2-4 | S631-011004 | O-RING | |
| 2-5 | S621-011001 | O-RING | |
| 19 | P410-042028 | HOSE ASSY-COMP 0X45 | |
| 19 | P410-042027 | HOSE ASSY-COMP 0X45 | |
| 19 | X410-042027 | HOSE ASSY-ORFS 0X45 | |
| 19 | P920-042027 | HOSE ASSY-ORFS 0X45 | |
| 20 | P410-042036 | HOSE ASSY-COMP 0X45 | |
| 20 | X410-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 20 | P920-042036 | HOSE ASSY-ORFS 0X45 | |
| 22 | P400-042019 | HOSE ASSY-COMPACT | |
| 22 | X400-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 22 | P910-042019 | HOSE ASSY-ORFS 0X0 | |
| 27 | P400-042022 | HOSE ASSY-COMPACT | |
| 27 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | P910-042022 | HOSE ASSY-ORFS 0X0 | |
| 28 | P400-042026 | HOSE ASSY-COMPACT | |
| 28 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 28 | P910-042026 | HOSE ASSY-ORFS 0X0 | |
| 33 | P400-042030 | HOSE ASSY-COMPACT | |
| 33 | X400-042030 | HOSE ASSY-SYNFLEX,ORFS | |
| 33 | P910-042030 | HOSE ASSY-ORFS 0X0 | |
| 50 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 51 | P010-110002 | CONNECTOR | |
| 51 | P010-110002 | CONNECTOR | |
| 62 | P020-110001 | ELBOW-90 | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 67 | P320-040404 | TEE-RUN TYPE | |
| 67 | X820-045151 | TEE-R/TYPE,ORFS | |
| 82 | S631-011004 | O-RING | |
| 82 | S631-011004 | O-RING | |
| 88 | S621-011001 | O-RING | |
| 90 | S037-102042 | BOLT-W/WASHER | |
| 92 | S175-060256 | SCREW-SOCKET RD HD | |
| 92 | S035-063046 | BOLT-W/WASHER | |
| 93 | S403-062006 | WASHER-PLAIN | |
| 97 | 31EK-20100 | FILTER-LAST GUARD | |
| 98 | 31E7-0312 | CLAMP-HOSE | |
| 99 | 31M6-51061 | SHIM(3.2T) |
