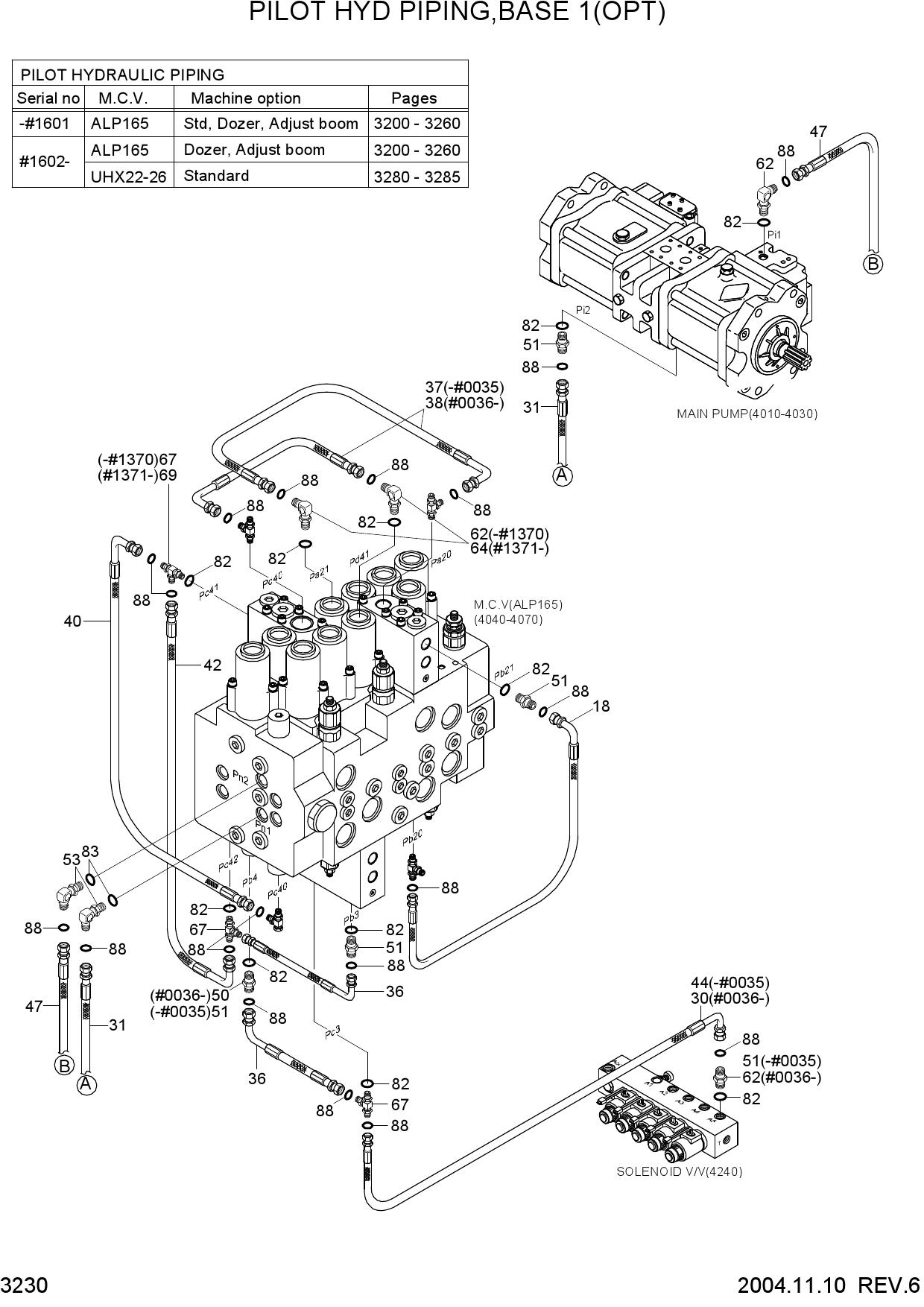

Запчасти для гусеничных экскаваторов Hyundai R140LC-7 PILOT HYD PIPING(BASE 1, OPT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 18 | P410-042016 | HOSE ASSY-COMP 0X45 | |
| 18 | X420-042017 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | P930-042017 | HOSE ASSY-ORFS 0X90 | |
| 30 | P400-042032 | HOSE ASSY-COMPACT | |
| 30 | X400-042032 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | P910-042032 | HOSE ASSY-ORFS 0X0 | |
| 31 | P400-042041 | HOSE ASSY-COMPACT | |
| 31 | P840-042041 | HOSE ASSY-SYN THD | |
| 31 | P600-043041 | HOSE ASSY-THD | |
| 31 | P910-043041 | HOSE ASSY-ORFS 0X0 | |
| 36 | P420-042008 | HOSE ASSY-COMP 0X90 | |
| 36 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | P930-042008 | HOSE ASSY-ORFS 0X90 | |
| 37 | P420-042009 | HOSE ASSY-COMP 0X90 | |
| 38 | P420-042010 | HOSE ASSY-COMP 0X90 | |
| 38 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 38 | P930-042010 | HOSE ASSY-ORFS 0X90 | |
| 40 | P420-042015 | HOSE ASSY-COMP 0X90 | |
| 40 | X420-042015 | HOSE ASSY-SYNFLEX,ORFS | |
| 40 | P930-042015 | HOSE ASSY-ORFS 0X90 | |
| 42 | P420-042019 | HOSE ASSY-COMP 0X90 | |
| 42 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | P930-042019 | HOSE ASSY-ORFS 0X90 | |
| 44 | P420-042032 | HOSE ASSY-COMP 0X90 | |
| 47 | P400-042048 | HOSE ASSY-COMPACT | |
| 47 | P840-042048 | HOSE ASSY-SYN THD | |
| 47 | P600-043048 | HOSE ASSY-THD | |
| 47 | P910-043048 | HOSE ASSY-ORFS 0X0 | |
| 50 | P010-110009 | CONNECTOR-LONG | |
| 50 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 51 | P010-110002 | CONNECTOR | |
| 51 | P010-110002 | CONNECTOR | |
| 51 | X500-110001 | CONNECTOR-ORFS | |
| 53 | P020-110012 | ELBOW-90 | |
| 53 | X520-110012 | ELBOW-90,ORFS | |
| 62 | P020-110001 | ELBOW-90 | |
| 62 | P020-110001 | ELBOW-90 | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 64 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 67 | P320-040404 | TEE-RUN TYPE | |
| 67 | X820-045151 | TEE-R/TYPE,ORFS | |
| 69 | 31N4-22150 | TEE-LONG,ORFS | |
| 82 | S631-011004 | O-RING | |
| 83 | S631-014004 | O-RING | |
| 88 | S621-011001 | O-RING |
