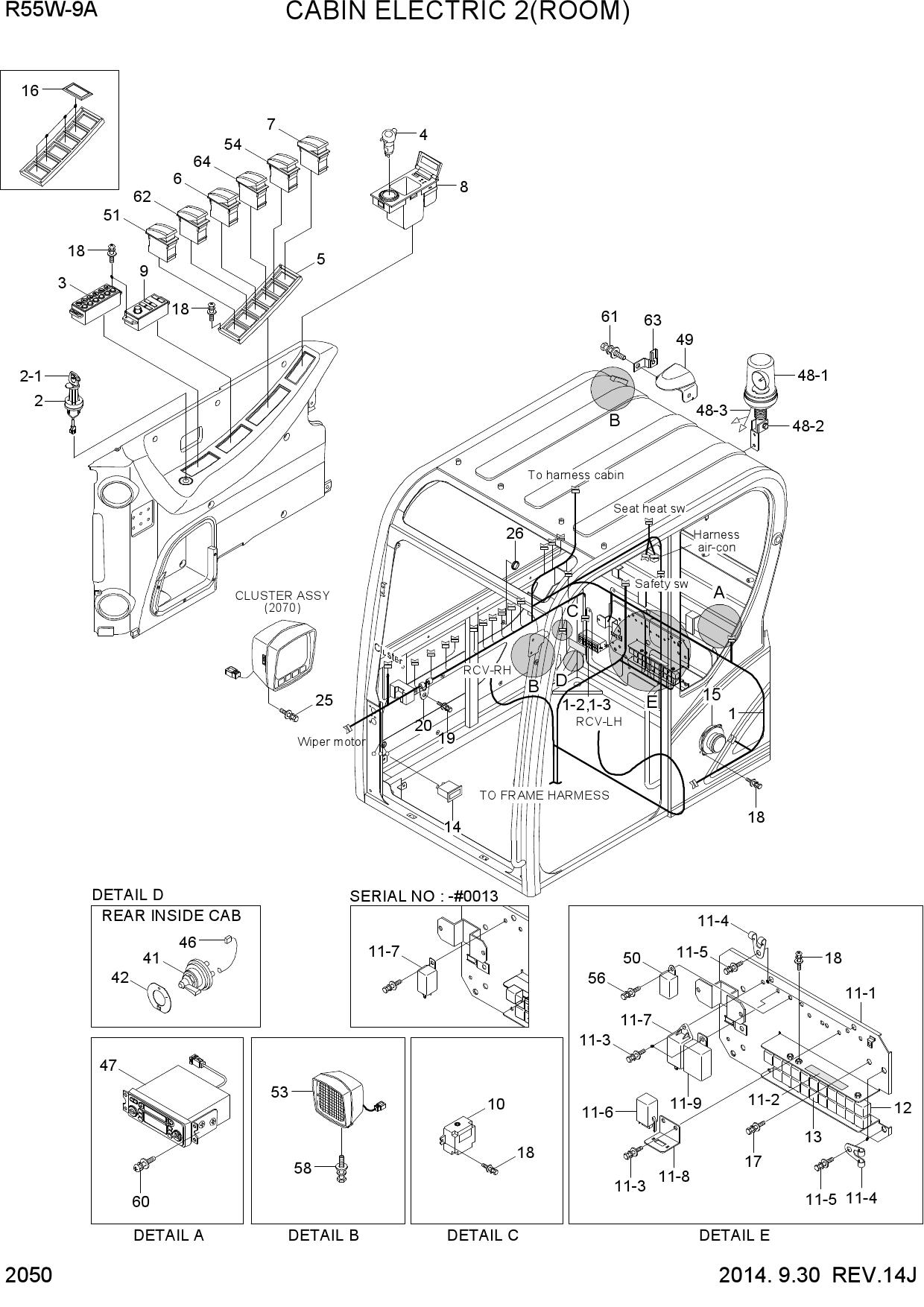

Запчасти для колесных экскаваторов Hyundai R55W-9A CAB ELECTRIC 2 (ROOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21M9-21500 | HARNESS-CAB ROOM | |
| 1-2 | 21L7-00230 | FUSE BOX | |
| 1-3 | 8JA003526-001 | SOCKET-RELAY | |
| 2 | 21Q4-00070 | START KEY ASSY | |
| 2 | 21Q4-00071 | START KEY ASSY | |
| 2-1 | 21Q4-21210 | KEY-START | |
| 3 | 21M9-41000 | MEMBRANE SWITCH ASSY | |
| 4 | 21M8-01420 | SOCKET ASSY | |
| 5 | 21E6-10470 | FRAME-MOUNTING | |
| 6 | 21M9-10830 | SWITCH-AUTO RAMLOCK | |
| 7 | 21M9-22300 | SWITCH-DPF | |
| 8 | 21M9-31900 | USB & SOCKET ASSY | |
| 9 | 21M9-30250 | REMOTE CONTROLLER | |
| 10 | 21M9-30230 | BLUETOOTH HANDSFREE | |
| 11 | 21M9-13800 | RELAY BOARD ASSY | |
| 11 | 21M9-13801 | RELAY BOARD ASSY | |
| 11-1 | 21M9-42800 | PLATE | |
| 11-2 | 21M9-22900 | DECAL RELAY | |
| 11-3 | S035-062026 | BOLT-W/WASHER | |
| 11-4 | 21E9-00170 | CLIP-HARNESS | |
| 11-5 | S037-101526 | BOLT-W/WASHER | |
| 11-6 | 21M6-40060 | RELAY-INT WIPER | |
| 11-7 | 21M6-40052 | FLASHER UNIT ASSY | |
| 11-7 | 21M9-60810 | FLASHER UNIT ASSY | |
| 11-8 | 21M8-32720 | PLATE | |
| 11-9 | 21M9-48140 | TIMER-STOP LAMP | |
| 12 | 340005070 | RELAY-12V,5P | |
| 13 | 21M9-36150 | RELAY-5P | |
| 14 | 21MH-00660 | HOUR METER | |
| 15 | 21N6-30190 | SPEAKER | |
| 16 | 21E6-10460 | COVER | |
| 17 | S035-062026 | BOLT-W/WASHER | |
| 18 | S131-051546 | SCREW-W/WASHER | |
| 19 | S035-061526 | BOLT-W/WASHER | |
| 20 | 21E9-00170 | CLIP-HARNESS | |
| 25 | S035-081526 | BOLT-W/WASHER | |
| 26 | 21M9-91000 | GROMMET-RH | |
| 41 | 21LM-10501 | SWITCH-MASTER | |
| 41 | 21LM-10502 | SWITCH-MASTER | |
| 42 | 21LD-34180 | DECAL-MASTER SWITCH | |
| 46 | 21N8-40170 | HARNESS-EXTENSION | |
| 47 | 21M9-18000 | RADIO & USB PLAYER | |
| 48 | 21N1-00011 | BEACON LAMP ASSY | |
| 48-1 | 21Q4-31001 | BRACKET-TILT | |
| 48-2 | 21N1-00030 | BEACON LAMP | |
| 48-3 | 21N4-02830 | HARNESS-BEACON LAMP | |
| 49 | 21M9-39500 | REAR CAMERA KIT ASSY | |
| N49-1 | 21M9-38500 | REAR CAMERA ASSY | |
| 49-2 | 21M9-39510 | BRACKET ASSY | |
| 50 | 21M9-06200 | BUZZER-WARNING | |
| 51 | 21M9-30800 | SWITCH-QUICK CLAMP | |
| 53 | 21M9-42000 | WORK LAMP ASSY | |
| 53-1 | S866-120550 | BULB | |
| 54 | 21M9-35190 | SWITCH-AIR | |
| 56 | S131-061546 | SCREW-W/WASHER | |
| 58 | S037-102026 | BOLT-W/WASHER | |
| 60 | S131-051546 | SCREW-W/WASHER | |
| 61 | S037-102526 | BOLT-W/WASHER | |
| 62 | 21M9-40700 | SWITCH-BOOM OFFSET | |
| 63 | 25D1-10650 | CLIP ASSY | |
| 64 | 21M9-30900 | SWITCH-OVERLOAD |
