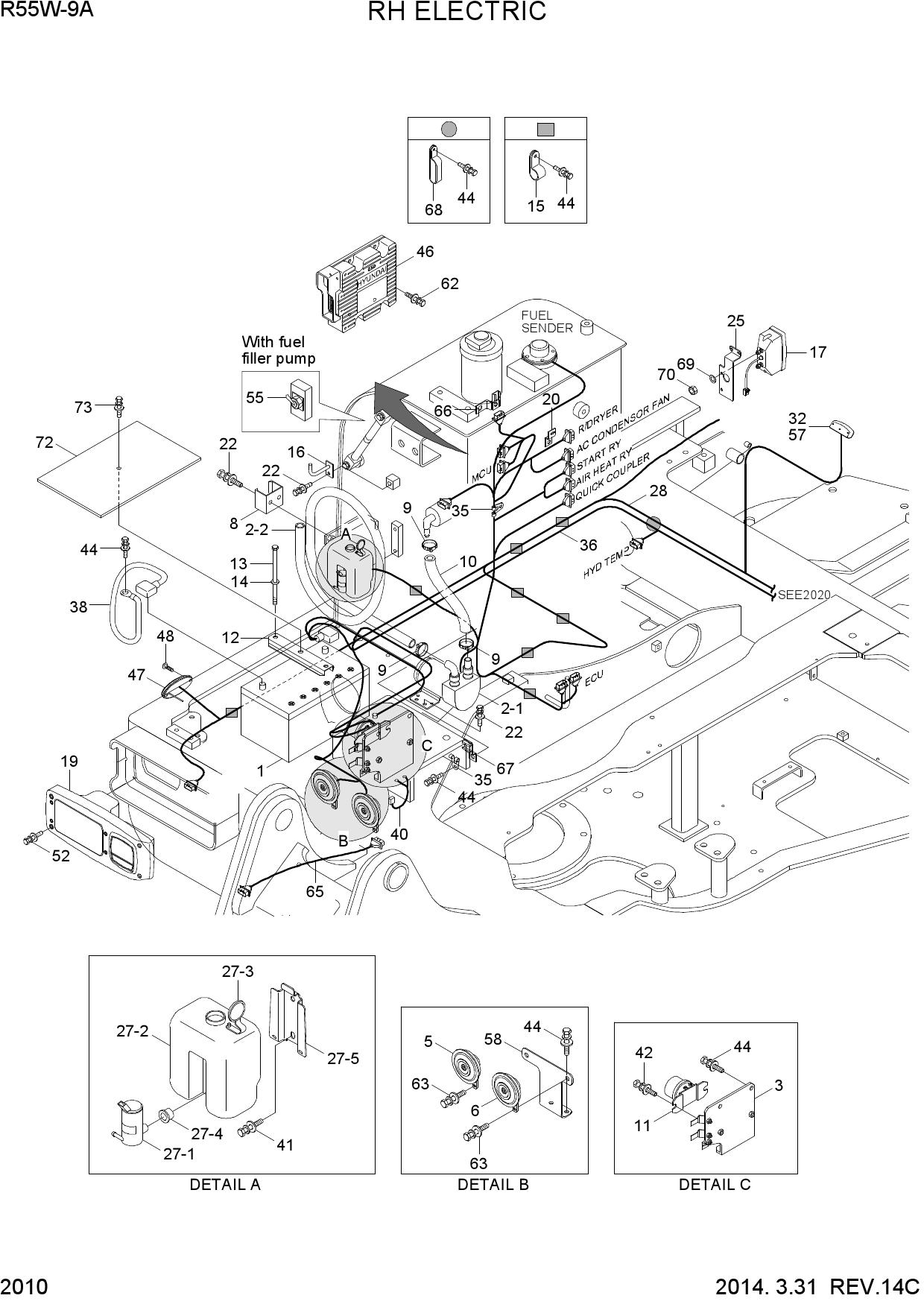

Запчасти для колесных экскаваторов Hyundai R55W-9A RH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21E6-20270 | BATTERY | |
| 2 | 21M8-50052 | FUEL FILLER PUMP KIT | |
| 2-1 | 21M8-50062 | FUEL FILLER PUMP ASSY | |
| 2-2 | 21M6-55030 | HOSE ASSY | |
| 3 | 21M9-36100 | PLATE | |
| 5 | 21M9-00070 | HORN-LOW | |
| 6 | 21M9-00080 | HORN-HIGH | |
| 8 | 21N4-00770 | CLIP | |
| 9 | S520-032000 | CLAMP-HOSE | |
| 10 | 21M8-01970 | HOSE-OUTLET | |
| 11 | 21M9-54100 | RELAY-BATTERY | |
| 12 | 21N6-21170GG | BRACKET-BATTERY | |
| 13 | S017-102656 | BOLT-HEX | |
| 14 | S411-100006 | WASHER-SPRING | |
| 15 | 31L7-10200 | CLAMP-TUBE | |
| 16 | 21M8-01951 | PLATE | |
| 17 | 21M9-50600 | COMBINATION LAMP-RH | |
| 19 | 21M9-10360 | HEAD & POSITION LAMP-RH | |
| 20 | 21N5-40340 | CLIP-METAL | |
| 22 | S035-061526 | BOLT-W/WASHER | |
| 25 | 21M9-60201 | BRACKET-REAR COMBI RH | |
| 27 | 21M9-23630 | WASHER TANK ASSY | |
| 27-1 | 21M8-00100 | MOTOR | |
| 27-2 | 21EG-10140 | TANK | |
| 27-3 | 24L3-30660 | CAP | |
| 27-4 | 21EL-00200 | RUBBER-PUSH | |
| 27-5 | 24L3-30710 | PLATE | |
| 28 | 21M9-21601 | HARNESS-MAIN | |
| 28 | 21M9-21602 | HARNESS-MAIN | |
| 32 | 21M9-50800 | LAMP-LICENCE PLATE | |
| 35 | S593-000752 | CLIP-HARNESS | |
| 36 | 21M8-03911 | CABLE(BATT(+)-STARTER) | |
| 38 | 21M8-03900 | CABLE(BATT(-)-SWITCH) | |
| 40 | 21M8-02120 | HARNESS-EXT.RELAY | |
| 41 | S035-062026 | BOLT-W/WASHER | |
| 42 | S035-083026 | BOLT-W/WASHER | |
| 44 | S037-102026 | BOLT-W/WASHER | |
| 46 | 21M9-33210 | MCU(MACHINE CNTL UNIT) | |
| 47 | 21M9-20300 | LAMP-SIDE MARKER ASSY | |
| 48 | S141-030156 | SCREW-FLAT HD | |
| 52 | S141-050306 | SCREW-FLAT HD | |
| 55 | 21E9-2001 | SWITCH-TOGGLE | |
| 57 | 21M6-01010 | BULB | |
| 58 | 21M9-31700 | PLATE-HORN | |
| 62 | S035-083526 | BOLT-W/WASHER | |
| 63 | S035-081526 | BOLT-W/WASHER | |
| 65 | 21M9-51300 | HARNESS EXT | |
| 66 | 25D1-10640 | CLIP ASSY | |
| 67 | 21N4-01130 | PLATE-CLIP | |
| 68 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 69 | S403-06200B | WASHER-PLAIN | |
| 70 | S205-06100B | NUT-HEX | |
| 72 | 21M9-70800 | COVER-BATTERY | |
| 73 | S035-082026 | BOLT-W/WASHER |
