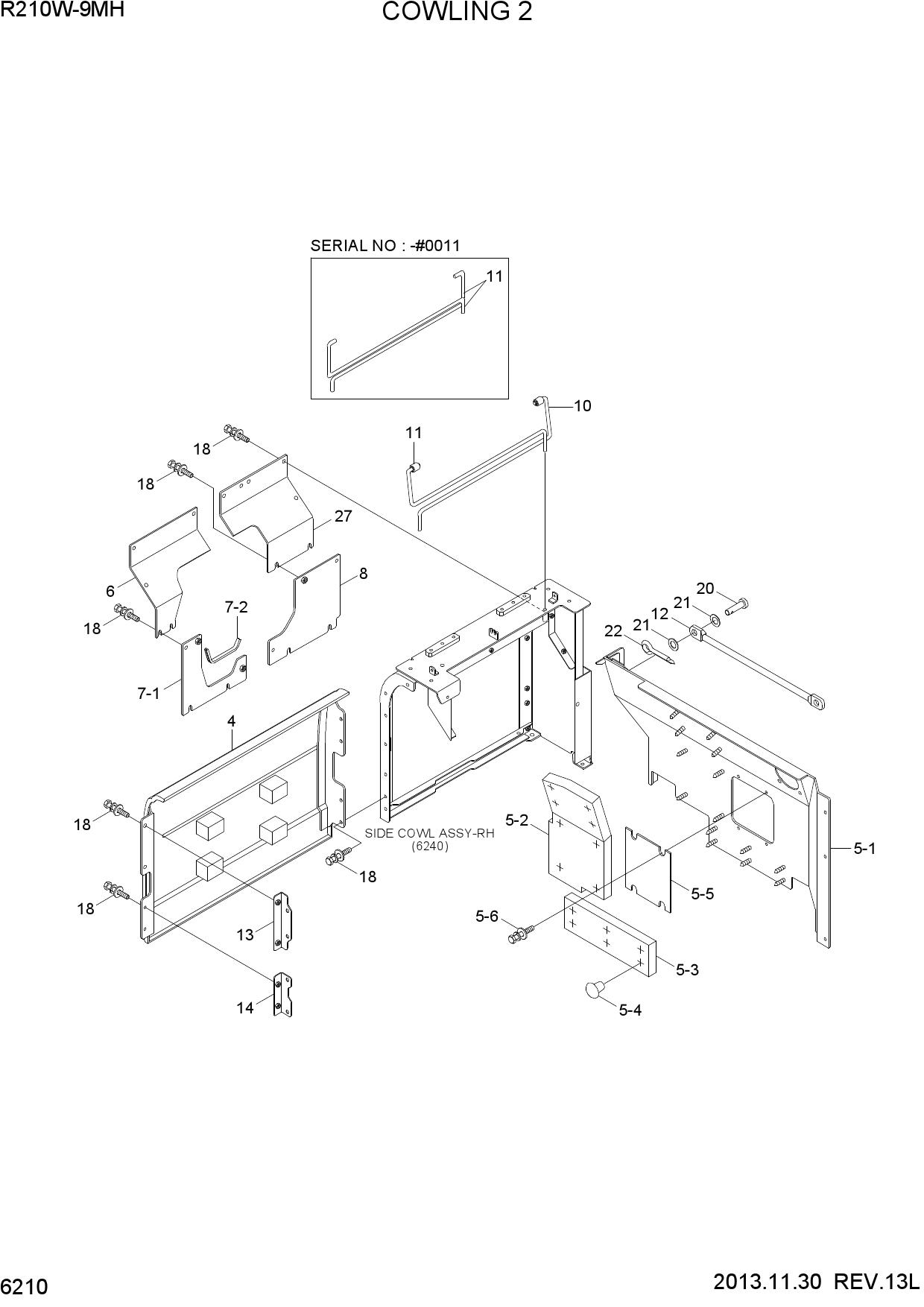

Запчасти для колесных экскаваторов Hyundai R210W9-MH COWLING 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 71Q6-53203 | COVER-TANK | |
| 5 | 72Q6-54101 | SCREEN ASSY | |
| 5-1 | 72Q6-54111 | SCREEN WA | |
| 5-2 | 72Q6-54200 | SPONGE | |
| 5-3 | 72Q6-54210 | SPONGE | |
| 5-4 | 71EM-51580 | CAP-STUD BOLT | |
| 5-5 | 71Q6-54250 | SCREEN ASSY | |
| 5-6 | 71Q6-50020 | BOLT-W/WASHER | |
| 6 | 72Q6-54301 | SCREEN-PUMP,TOP | |
| 7 | 72Q6-54501 | SCREEN-BOTTOM,FR | |
| 7-1 | 72Q6-54511 | SCREEN-PUMP | |
| 7-2 | S791-020030 | GROMMET-PLATE | |
| 8 | 72Q6-54603 | SCREEN-BOTTOM,RR | |
| 10 | 71K6-57100 | TORSION BAR-LH | |
| 11 | 71N8-56102GG | BAR-TORSION | |
| 11 | 71K6-57200 | TORSION BAR-RH | |
| 12 | 71EG-54960GG | STAY-ENG HOOD | |
| 13 | 71Q6-55503 | SUPPORT-TANK COVER | |
| 14 | 71Q6-55552 | SUPPORT-TANK COVER | |
| 18 | 71Q6-50025 | BOLT-W/WASHER | |
| 20 | S491-100302 | PIN-CLEVIS | |
| 21 | S403-10500B | WASHER-PLAIN | |
| 22 | S501-080002 | PIN-SELF LOCKING | |
| 27 | 72Q6-54700 | SCREEN-PUMP,TOP |
