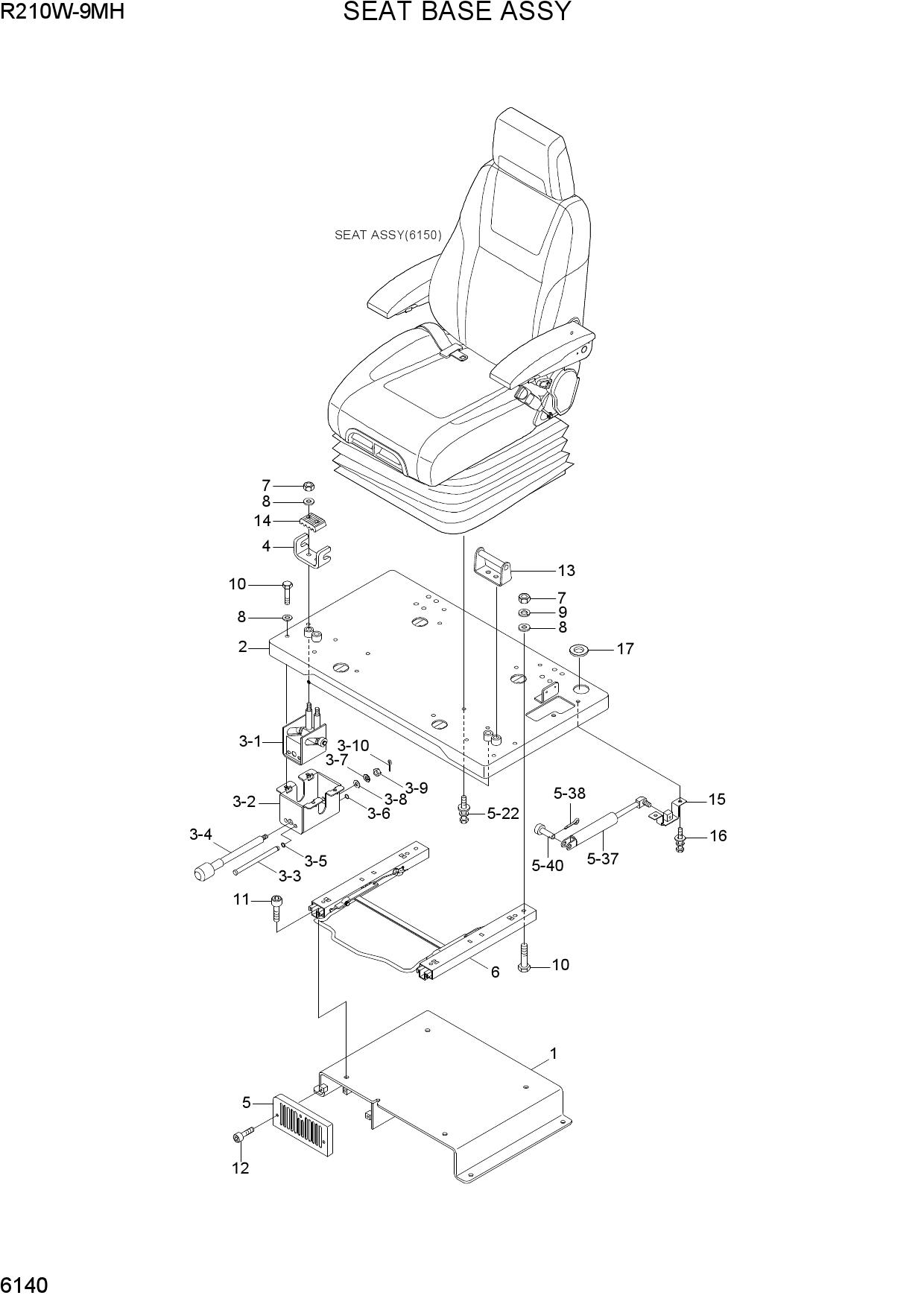

Запчасти для колесных экскаваторов Hyundai R210W9-MH SEAT BASE ASSY
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71Q4-20013 | SEAT BASE ASSY | |
| 1 | 71Q6-20020 | SEAT BASE WA-LOWER | |
| 2 | 71Q4-20101 | SEAT BASE WA-UPPER | |
| 3 | 71Q6-20200 | CONSOLE TILTING ASSY | |
| 3-1 | 71Q6-20210 | BLOCK ASSY-GUIDE | |
| 3-2 | 71Q6-20290 | BRACKET-TILTING WA | |
| 3-3 | 71Q6-20350 | BAR-GUIDE | |
| 3-4 | 71Q6-20360 | KNOB-TILTING | |
| 3-5 | S601-016004 | RING-RETAINING | |
| 3-6 | S601-010004 | RING-RETAINING | |
| 3-7 | S041-101006 | WASHER-CONICAL SPRING | |
| 3-8 | S403-10100B | WASHER-PLAIN | |
| 3-9 | S225-10000B | NUT-SLOTTED | |
| 3-10 | S461-250252 | PIN-SPLIT | |
| 4 | 71Q6-20371 | BRACKET-GUIDE | |
| 5 | 71Q6-20380 | COVER-FOOT | |
| 6 | 71Q6-22811 | RAIL ASSY-SLIDING | |
| 7 | S205-08100B | NUT-HEX | |
| 8 | S403-08200B | WASHER-PLAIN | |
| 9 | S411-080006 | WASHER-SPRING | |
| 10 | S015-080206 | BOLT-HEX | |
| 11 | S109-080206 | BOLT-SOCKET | |
| 12 | S132-061546 | SCREW-W/WASHER | |
| 13 | 71Q4-20030 | BRACKET WA | |
| 14 | 71Q6-23030 | PAD-RUBBER | |
| 15 | 71Q4-20220 | BRACKET WA | |
| 16 | S035-082026 | BOLT-W/WASHER | |
| 17 | S681-290800 | GROMMET | |
| 5-22 | S037-102526 | BOLT-W/WASHER | |
| 5-37 | 71Q4-20050 | SPRING-GAS | |
| 5-38 | S461-160252 | PIN-SPLIT | |
| 5-40 | S491-080252 | PIN-CLEVIS |
