- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(4 OUTRIGGER)
- PILOT HYD PIPING(FR/OT, RR/BLADE)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- POWER TRAIN HYD PIPING 3
- POWER TRAIN HYD PIPING(1-WAY PEDAL)
- POWER TRAIN HYD PIPING(2-WAY PEDAL)
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING 3
- FRONT OUTRIGGER HYD PIPING
- REAR DOZER BLADE HYD PIPING
- 4 OUTRIGGER HYD PIPING 1(FRONT)
- 4 OUTRIGGER HYD PIPING 2(REAR)
- LOWER HYD PIPING 1(F/BLD, R/OUT)
- LOWER HYD PIPING 2(F/BLD, R/OUT)
- LOWER HYD PIPING 1(F/BLD, R/BLD)
- LOWER HYD PIPING 2(F/BLD, R/BLD)
- BOOM HYD PIPING(5.65M, STD)
- BOOM GREASE LUB SYSTEM(5.65M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM HYD PIPING(5.2M, SHORT)
- BOOM GREASE LUB SYSTEM(5.2M, SHORT)
- ATTACH PIPING KIT(S & D/ACTING)
- ATTACH PIPING KIT(S&D/ACTING, ADJ/ BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE 1)
- QUICK CLAMP(CLOSED TYPE 1)
- QUICK CLAMP(HOOK TYPE 2)
- QUICK CLAMP(CLOSED TYPE 2)
- QUICK CLAMP(HOOK TYPE 3, #0003-)
- QUICK CLAMP(CLOSED TYPE 3, #0003-)
- QUICK CLAMP(HOOK TYPE 4, #0003-)
- QUICK CLAMP(CLOSED TYPE 4, #0003-)
- ARM HYD PIPING(2.92M, STD)
- ARM HYD PIPING(2.0M)
- ARM HYD PIPING(2.40M)
- ARM HYD PIPING(2.70M)
- ARM HYD PIPING(2.80M)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING KIT 1
- DOUBLE ACTING MAIN PIPING KIT 2
- D/ACTING MAIN PIPING KIT 1(ADJUST BOOM)
- D/ACTING MAIN PIPING KIT 2(ADJUST BOOM)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

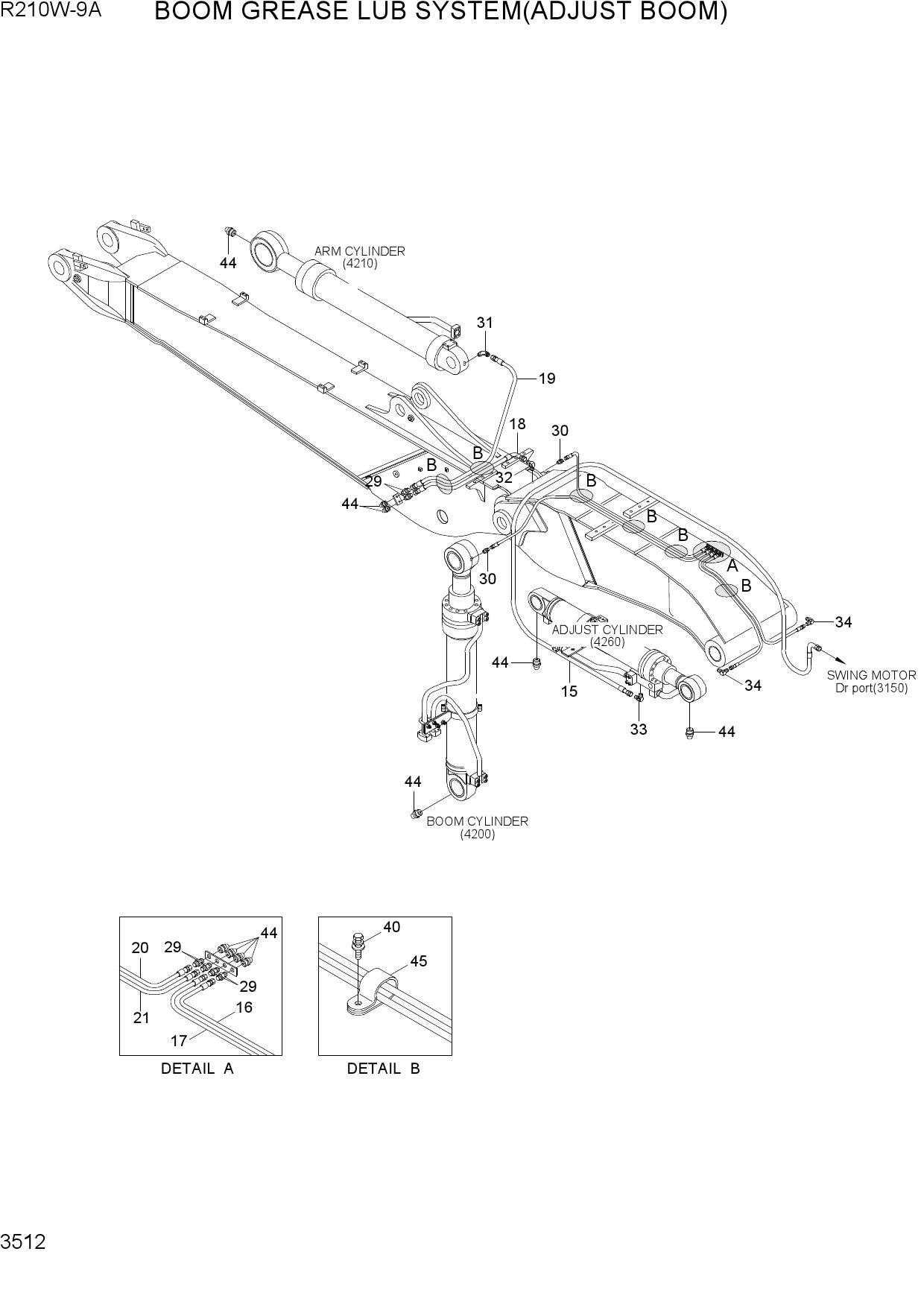

Запчасти для колесных экскаваторов Hyundai R210W-9A BOOM GREASE LUB SYSTEM(ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 15 | P930-042105 | HOSE ASSY-ORFS 0X90 | |
| 16 | P840-042017 | HOSE ASSY-SYN THD | |
| 17 | P840-042018 | HOSE ASSY-SYN THD | |
| 18 | P860-042028 | HOSE ASSY-SYN 0X90 | |
| 19 | P840-042032 | HOSE ASSY-SYN THD | |
| 20 | P840-042034 | HOSE ASSY-SYN THD | |
| 21 | P840-042035 | HOSE ASSY-SYN THD | |
| 29 | 31QA-50200 | CONNECTOR | |
| 30 | P010-430011 | CONNECTOR | |
| 31 | E231-0207 | ELBOW-45 | |
| 32 | 61E7-0059 | ELBOW-90 | |
| 33 | 31N6-90550 | ELBOW-90,ORFS | |
| 34 | 31NB-50280 | ELBOW-90 | |
| 40 | S035-082026 | BOLT-W/WASHER | |
| 44 | S651-810002 | NIPPLE-GREASE | |
| 45 | 31Q6-50380 | CLAMP-HOSE |
