- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(ATTACH, ADJUST BOOM)
- UPPER HYD PIPING(TRAVEL)
- UPPER HYD PIPING(ADJUST BOOM)
- CONTROL VALVE(ADJUST BOOM)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(4 OUTRIGGER)
- PILOT HYD PIPING(FR/OT, RR/BLADE)
- POWER TRAIN HYD PIPING 1
- POWER TRAIN HYD PIPING 2
- POWER TRAIN HYD PIPING 3
- POWER TRAIN HYD PIPING(1-WAY PEDAL)
- POWER TRAIN HYD PIPING(2-WAY PEDAL)
- LOWER HYD PIPING 1
- LOWER HYD PIPING 2
- LOWER HYD PIPING 3
- FRONT OUTRIGGER HYD PIPING
- REAR DOZER BLADE HYD PIPING
- 4 OUTRIGGER HYD PIPING 1(FRONT)
- 4 OUTRIGGER HYD PIPING 2(REAR)
- LOWER HYD PIPING 1(F/BLD, R/OUT)
- LOWER HYD PIPING 2(F/BLD, R/OUT)
- LOWER HYD PIPING 1(F/BLD, R/BLD)
- LOWER HYD PIPING 2(F/BLD, R/BLD)
- BOOM HYD PIPING(5.65M, STD)
- BOOM GREASE LUB SYSTEM(5.65M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM HYD PIPING(5.2M, SHORT)
- BOOM GREASE LUB SYSTEM(5.2M, SHORT)
- ATTACH PIPING KIT(S & D/ACTING)
- ATTACH PIPING KIT(S&D/ACTING, ADJ/ BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE 1)
- QUICK CLAMP(CLOSED TYPE 1)
- QUICK CLAMP(HOOK TYPE 2)
- QUICK CLAMP(CLOSED TYPE 2)
- QUICK CLAMP(HOOK TYPE 3, #0003-)
- QUICK CLAMP(CLOSED TYPE 3, #0003-)
- QUICK CLAMP(HOOK TYPE 4, #0003-)
- QUICK CLAMP(CLOSED TYPE 4, #0003-)
- ARM HYD PIPING(2.92M, STD)
- ARM HYD PIPING(2.0M)
- ARM HYD PIPING(2.40M)
- ARM HYD PIPING(2.70M)
- ARM HYD PIPING(2.80M)
- ARM SAFETY LOCK SYSTEM
- ARM SAFETY LOCK SYSTEM(ADJUST BOOM)
- DOUBLE ACTING MAIN PIPING KIT 1
- DOUBLE ACTING MAIN PIPING KIT 2
- D/ACTING MAIN PIPING KIT 1(ADJUST BOOM)
- D/ACTING MAIN PIPING KIT 2(ADJUST BOOM)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

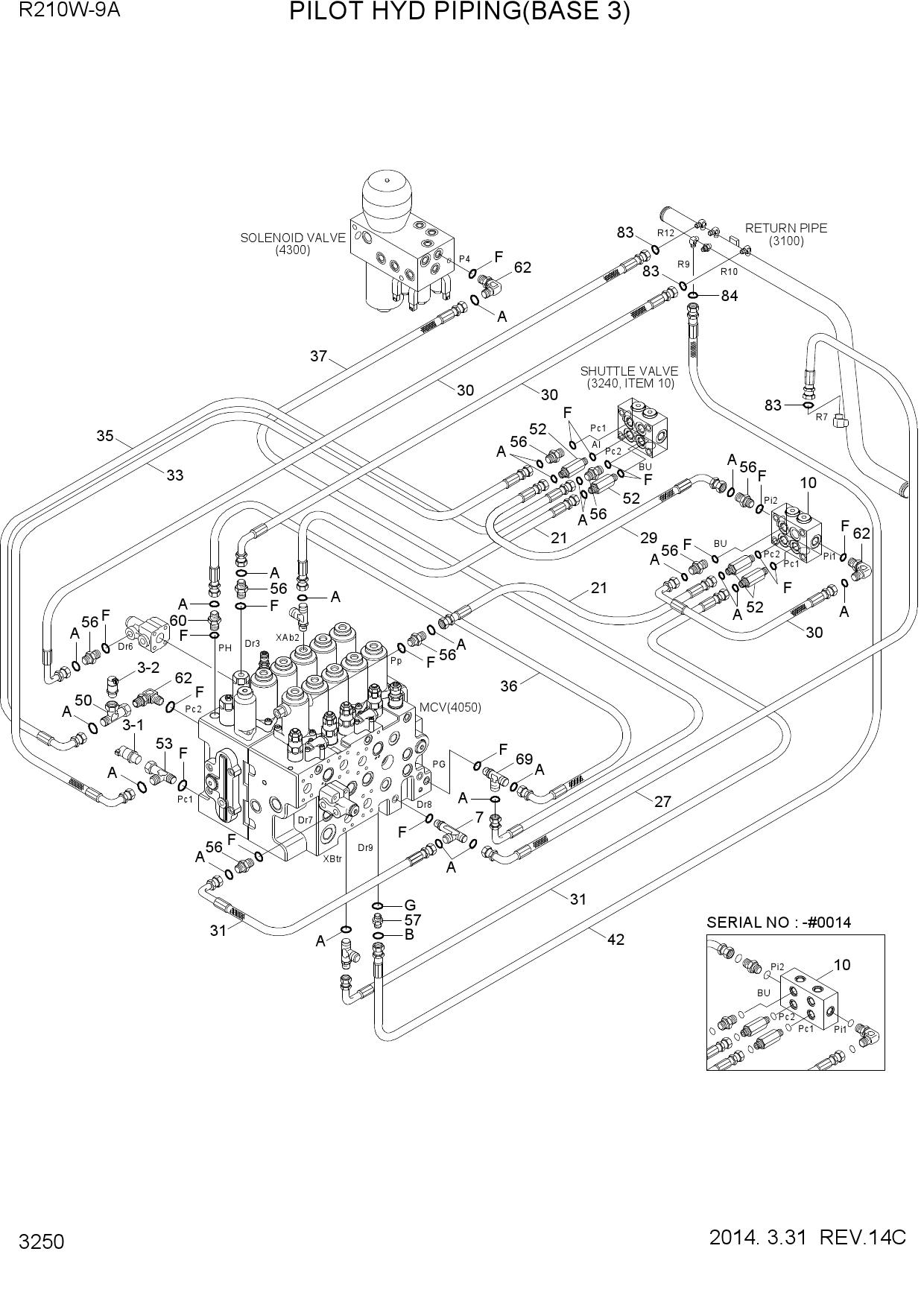

Запчасти для колесных экскаваторов Hyundai R210W-9A PILOT HYD PIPING(BASE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3-1 | 31Q4-40820 | SENSOR-PRESSURE | |
| 3-2 | 31Q4-40820 | SENSOR-PRESSURE | |
| 7 | 31N4-22150 | TEE-LONG,ORFS | |
| 10 | 31Q6-21180 | VALVE-SHUTTLE | |
| 10 | 31Q6-21191 | VALVE-SHUTTLE | |
| 21 | X400-042026 | HOSE ASSY-ORFS 0X0 | |
| 27 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 30 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 31 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 33 | X420-042017 | HOSE ASSY-SYNFLEX,ORFS | |
| 35 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 36 | X420-042020 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | X420-042037 | HOSE ASSY-SYNFLEX,ORFS | |
| 42 | P910-062018 | HOSE ASSY-ORFS 0X0 | |
| 50 | 31N6-66080 | TEE-BRENCH TEST | |
| 52 | 31N8-40100 | CONNECTOR-LONG,ORFS | |
| 53 | 31NB-20130 | TEE-RUN TYPE/TEST | |
| 56 | X500-110001 | CONNECTOR-ORFS | |
| 57 | X500-110002 | CONNECTOR-ORFS | |
| 60 | X500-110013 | CONNECTOR-ORFS | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 69 | X820-045151 | TEE-R/TYPE,ORFS | |
| 83 | S621-011001 | O-RING | |
| 84 | S621-012001 | O-RING | |
| A | S621-011001 | O-RING | |
| B | S621-012001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING |
