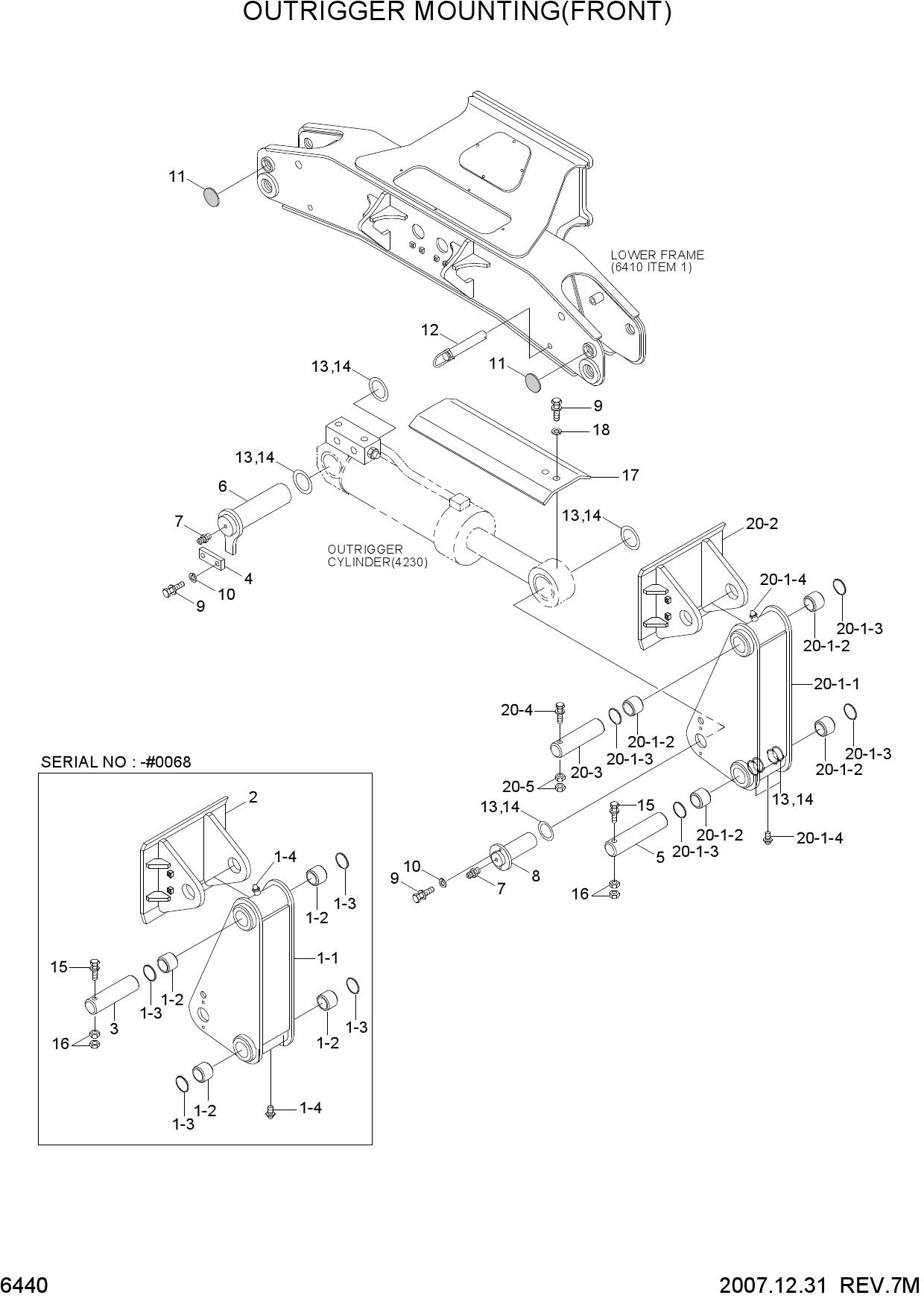

Запчасти для колесных экскаваторов Hyundai R200W-7 OUTRIGGER MOUNTING(FRONT)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51N6-52200 | LEG ASSY | |
| 1-1 | 51N6-52210 | LEG WA | |
| 1-2 | 51E4-4175 | BUSHING | |
| 1-3 | S700-080206 | SEAL-DUST | |
| 1-4 | S651-810002 | NIPPLE-GREASE | |
| 2 | 51ER-52301 | FOOT WA | |
| 3 | 51ER-52511 | PIN-FOOT | |
| 4 | 51EK-52560 | PLATE-LOCK | |
| 4 | 51EK-52560BG | PLATE-LOCK | |
| 5 | 51ER-52501 | PIN-LEG | |
| 5 | 51ER-52502 | PIN-LEG | |
| 6 | 51ER-52520 | PIN-CYL HEAD | |
| 6 | 51ER-52521 | PIN-CYL HEAD | |
| 6 | 51ER-52521BG | PIN-CYL HEAD | |
| 7 | S651-810002 | NIPPLE-GREASE | |
| 8 | 51N6-52530 | PIN-CYL ROD | |
| 8 | 51N6-52531 | PIN-CYL ROD | |
| 8 | 51N6-52531BG | PIN-CYL ROD | |
| 9 | S017-120256 | BOLT-HEX | |
| 10 | S441-120006 | WASHER-HARDENED | |
| 11 | 51EK-52990 | REFLECTOR-REAR | |
| 12 | 51EK-52540 | SAFETY PIN | |
| 13 | S390-080140 | SHIM-ROUND(0.5T) | |
| 14 | S391-080140 | SHIM-ROUND(1.0T) | |
| 15 | S017-16145D | BOLT-HEX | |
| 15 | S017-16145D | BOLT-HEX | |
| 16 | S205-161006 | NUT-HEX | |
| 16 | S205-161006 | NUT-HEX | |
| 17 | 51N6-52540 | COVER-CYL ROD | |
| 17 | 51N6-52540BG | COVER-CYL ROD | |
| 18 | S411-120006 | WASHER-SPRING | |
| 20 | 51N6-50110 | LEG & FOOT ASSY-LH | |
| 20 | 51N6-50111 | LEG & FOOT ASSY-LH | |
| 20 | 51N6-50111BG | LEG & FOOT ASSY-LH | |
| 20 | 51N6-50120 | LEG & FOOT ASSY-RH | |
| 20 | 51N6-50121 | LEG & FOOT ASSY-RH | |
| 20 | 51N6-50121BG | LEG & FOOT ASSY-RH | |
| 20-1 | 51N6-52200 | LEG ASSY | |
| 20-1 | 51N6-52200BG | LEG ASSY | |
| 20-1-1 | 51N6-52210 | LEG WA | |
| 20-1-1 | 51N6-52210BG | LEG WA | |
| 20-1-2 | 51E4-4175 | BUSHING | |
| 20-1-2 | S700-080206 | SEAL-DUST | |
| 20-1-3 | S651-810002 | NIPPLE-GREASE | |
| 20-2 | 51ER-52301 | FOOT WA | |
| 20-2 | 51ER-52301BG | FOOT WA | |
| 20-3 | 51ER-52511 | PIN-FOOT | |
| 20-3 | 51ER-52512 | PIN-FOOT | |
| 20-4 | S017-16145D | BOLT-HEX | |
| 20-5 | S205-161006 | NUT-HEX |
