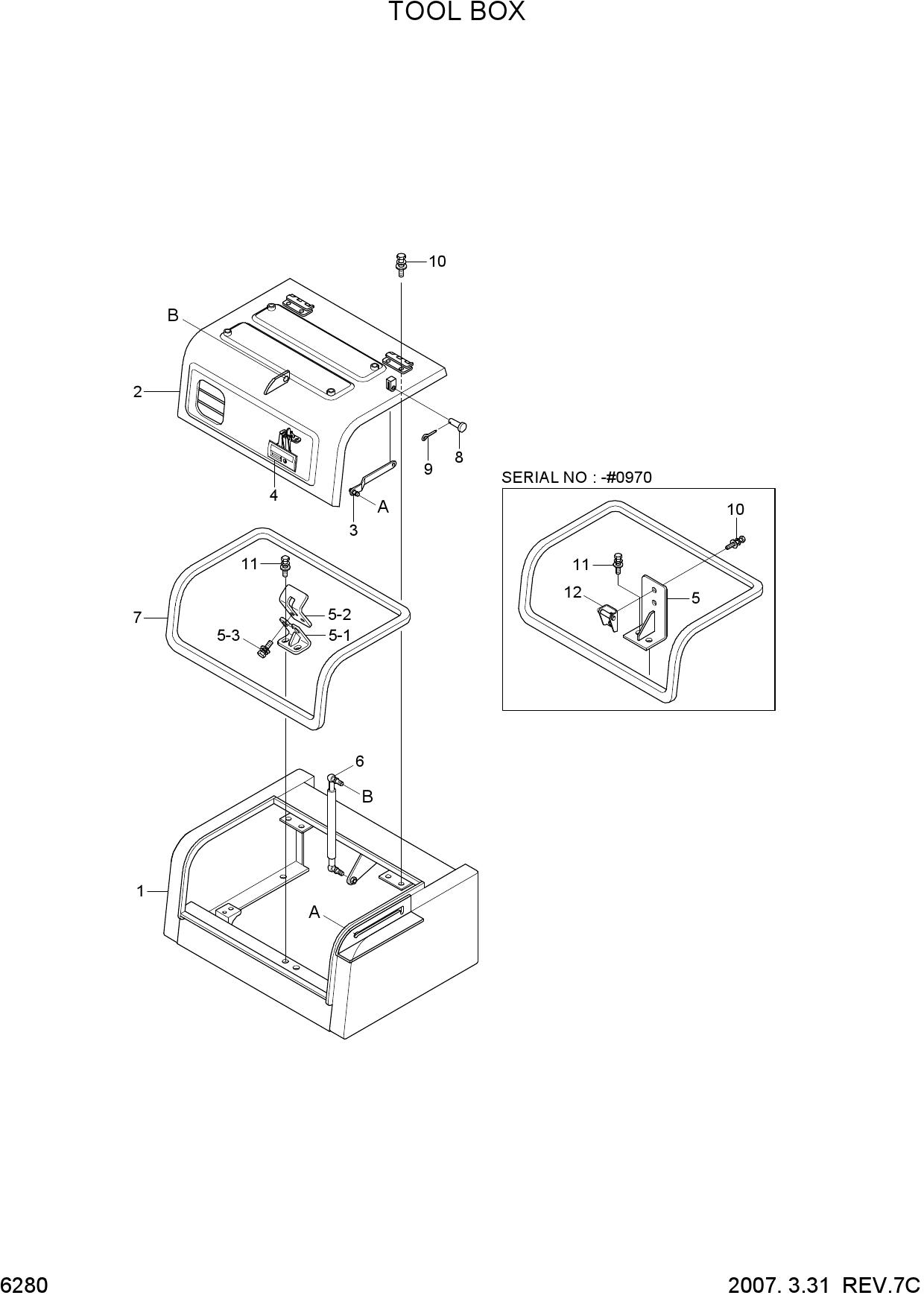

Запчасти для колесных экскаваторов Hyundai R200W-7 TOOL BOX
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 74N6-41101 | TOOL BOX WA | |
| 2 | 71N5-42201 | COVER WA | |
| 2 | 74N6-41200 | COVER WA | |
| 2 | 74N6-41201 | COVER WA | |
| 3 | 71N8-41300 | STAY WA | |
| 4 | 71N8-41701 | CATCH ASSY | |
| 4 | 71N8-41702 | CATCH ASSY | |
| 4 | 74N8-41700 | CATCH ASSY | |
| 5 | 71N8-41502 | BRACKET | |
| 5 | 74N8-41500 | BRACKET | |
| 5-1 | 74N8-41560 | BRACKET WA | |
| 5-2 | 74N8-41570 | BRACKET WA | |
| 5-3 | S035-082526 | BOLT-W/WASHER | |
| 6 | 71N8-41321 | GAS SPRING ASSY | |
| 7 | S772-028800 | WEATHER STRIP | |
| 8 | S491-080252 | PIN-CLEVIS | |
| 9 | S461-320252 | PIN-SPLIT | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 10 | S035-082022 | BOLT-W/WASHER | |
| 11 | S037-102052 | BOLT-W/WASHER | |
| 12 | 71N8-41721 | BRACKET |
