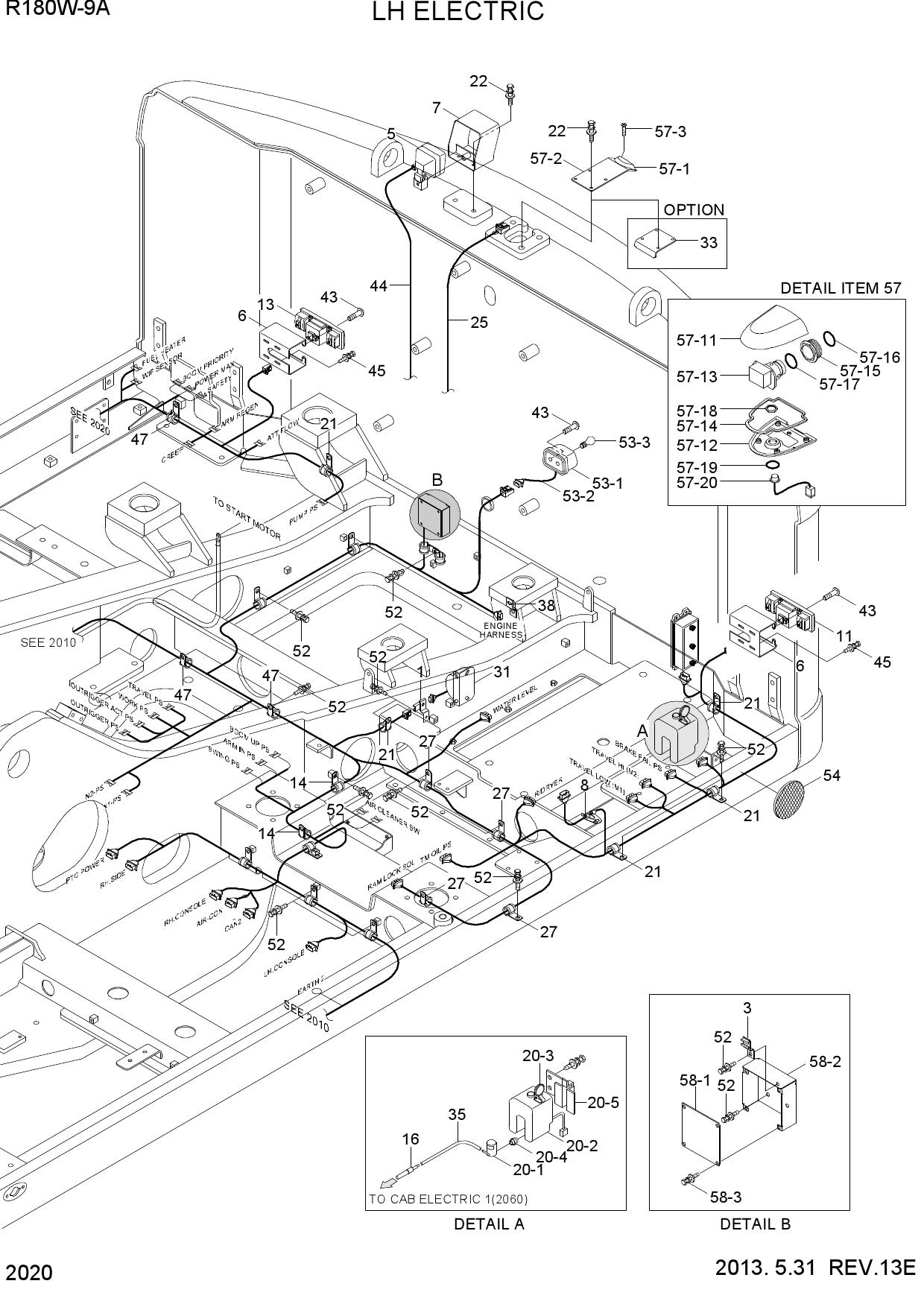

Запчасти для колесных экскаваторов Hyundai R180W-9A LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 25D1-10640 | CLIP ASSY | |
| 3 | 21N4-01130 | PLATE-CLIP | |
| 5 | 21QB-60700 | WORK LAMP ASSY | |
| 5-1 | S866-240650 | BULB | |
| 6 | 21Q4-30201 | BRACKET-COMBI LAMP | |
| 7 | 21Q4-47020 | GUARD-BACK LIGHT | |
| 8 | 21E9-00170 | CLIP-HARNESS | |
| 11 | 21Q4-60202 | COMBI LAMP-REAR,LH | |
| 13 | 21Q4-60212 | COMBI LAMP-REAR,RH | |
| 14 | 31L7-10210 | CLAMP-TUBE INS | |
| 16 | 21EM-30570 | CONNECTOR-TUBE | |
| 20 | 21EG-30630 | WASHER TANK ASSY | |
| 20-1 | 21EG-10130 | PUMP-MOTOR | |
| 20-2 | 21EG-10140 | TANK | |
| 20-3 | 24L3-30660 | CAP | |
| 20-4 | 24L3-30670 | RUBBER-BUSHING | |
| 20-5 | 24L3-30710 | PLATE | |
| 21 | 31L7-10190 | CLAMP-TUBE | |
| 22 | S037-102026 | BOLT-W/WASHER | |
| 25 | 21Q6-11141 | HARNESS-CAMERA | |
| 27 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 31 | 21N4-46800 | BUZZER-BACK | |
| 33 | 21Q5-60150 | PLATE | |
| 35 | 21EM-30581 | HOSE-RUBBER | |
| 38 | 21E9-06160 | CLIP | |
| 43 | S161-050156 | SCREW-CROSS R/ROUND | |
| 44 | 21Q8-11140 | HARNESS-EXTENSION | |
| 45 | S035-082026 | BOLT-W/WASHER | |
| 47 | 31L7-10200 | CLAMP-TUBE | |
| 52 | S037-101526 | BOLT-W/WASHER | |
| 53 | 21LB-34250 | LAMP SUB-NUMBER PLATE | |
| 53-1 | 21EK-10160 | LAMP-NUMBER PLATE | |
| 53-2 | 21LB-34260 | HARNESS-EXT(N/LAMP) | |
| 53-3 | 21EK-10260 | BULB-10W | |
| 54 | 21EK-10150 | REFLECTOR-SIDE | |
| 57 | 21Q5-60101 | CAMERA ASSY-REAR VIEW | |
| 57 | 21Q5-60102 | CAMERA ASSY-REAR VIEW | |
| 57-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N57-11 | 21AB-40110 | COVER-TOP | |
| N57-12 | 21AB-30120 | COVER-BOTTOM | |
| N57-13 | 21AB-30131 | CAMERA & PCB ASSY | |
| N57-14 | 21AB-30140 | GASKET | |
| N57-15 | 21AB-30150 | LENS-WINDOW | |
| N57-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N57-17 | 21AB-30190 | O-RING | |
| N57-18 | 21AB-30180 | NUT-VOLUME | |
| N57-19 | 21AB-30210 | CABLE ASSY | |
| N57-2 | 21Q5-60110 | BRACKET-CAMERA | |
| 57-3 | S141-050102 | SCREW-FLAT HD | |
| 58 | 21Q4-91040 | COVER ASSY | |
| 58 | 21Q4-91041 | COVER ASSY | |
| 58-1 | 21Q4-91071 | COVER | |
| 58-2 | 21Q4-91051 | PLATE | |
| 58-3 | S035-081526 | BOLT-W/WASHER |
