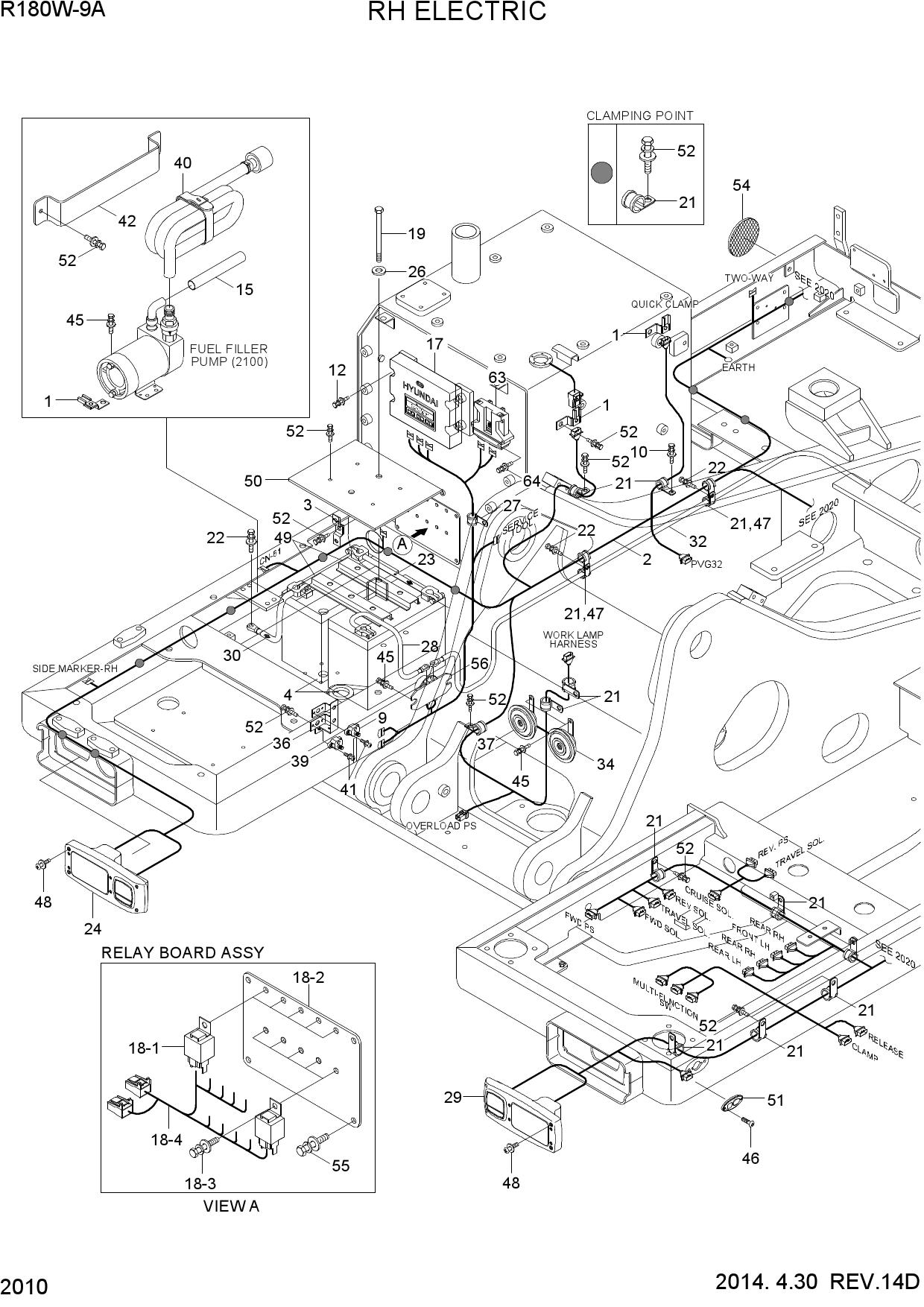

Запчасти для колесных экскаваторов Hyundai R180W-9A RH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 25D1-10640 | CLIP ASSY | |
| 2 | 21Q5-57102 | HARNESS-FRAME | |
| 2 | 21Q5-57103 | HARNESS-FRAME | |
| 2 | 21Q5-67100 | HARNESS-FRAME | |
| 2 | 21Q5-67101 | HARNESS-FRAME | |
| 2-1 | 21EA-50550 | DIODE | |
| 2-2 | 21EA-50570 | DIODE-FE3D | |
| 3 | 21N4-01130 | PLATE-CLIP | |
| 4 | 21E6-20270 | BATTERY | |
| 9 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 10 | S037-121526 | BOLT-W/WASHER | |
| 12 | S035-083026 | BOLT-W/WASHER | |
| 15 | 21N4-20550 | HOSE-OUTLET | |
| 17 | 21Q5-33200 | MCU(MACHINE CNTL UNIT) | |
| 18 | 21Q6-20441 | RELAY BOARD ASSY | |
| 18-1 | 22FV-24110 | RELAY | |
| 18-2 | 21Q6-20430 | BOARD WA-RELAY | |
| 18-3 | S132-061046 | SCREW-W/WASHER | |
| 18-4 | 21Q6-11161 | HARNESS-RELAY BOARD | |
| 19 | S017-102606 | BOLT-HEX | |
| 21 | 31L7-10190 | CLAMP-TUBE | |
| 22 | S037-102026 | BOLT-W/WASHER | |
| 23 | 21N4-01400 | CABLE(BATT-BATT) | |
| 24 | 21Q4-10360 | LAMP-HEAD&POSITION,RH | |
| 24-1 | 21Q4-16210 | LAMP UNIT-HEAD | |
| 24-2 | 21Q4-16240 | CASE-HEAD LAMP | |
| 24-3 | 21Q4-16220 | LAMP-FLASHER POSITION | |
| 26 | S403-10200B | WASHER-PLAIN | |
| 27 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 28 | 21EA-60490 | CABLE(BATT-BATT RY) | |
| 29 | 21Q4-10350 | LAMP-HEAD&POSITION,LH | |
| 29-1 | 21Q4-16210 | LAMP UNIT-HEAD | |
| 29-2 | 21Q4-16230 | CASE-HEAD LAMP | |
| 29-3 | 21Q4-16220 | LAMP-FLASHER POSITION | |
| 30 | 21EA-60620 | CABLE(BATT-EARTH) | |
| 32 | 21E2-60031 | CABLE(BATT RY-STARTER) | |
| 34 | 21N5-10051 | HORN-LOW | |
| 36 | 21Q7-21110 | PLATE | |
| 37 | 21N5-10061 | HORN-HIGH | |
| 39 | 21Q6-45100 | CIRCUIT-BREAKER,90A | |
| 40 | E127-3158 | BAND-FUEL PUMP | |
| 41 | S141-040206 | SCREW-FLAT HD | |
| 42 | 21QB-20080 | PLATE-CLAMP | |
| 45 | S035-082026 | BOLT-W/WASHER | |
| 46 | S141-030256 | SCREW-FLAT HD | |
| 47 | 31L7-10200 | CLAMP-TUBE | |
| 48 | S141-050356 | SCREW-FLAT HD | |
| 49 | 21Q4-60400 | BAR-BATTERY | |
| 50 | 21Q4-60300 | COVER ASSY-BATTERY | |
| 51 | 21Q4-20200 | LAMP-SIDE MARKER | |
| 52 | S037-101526 | BOLT-W/WASHER | |
| 54 | 21EK-10150 | REFLECTOR-SIDE | |
| 55 | S035-081526 | BOLT-W/WASHER | |
| 56 | 21QA-70010 | RELAY-BATTERY | |
| 63 | 21Q9-90021 | CONTROLLER-PVG32 | |
| 63 | 21Q9-90022 | CONTROLLER-PVG32 | |
| 64 | S035-066526 | BOLT-W/WASHER |
